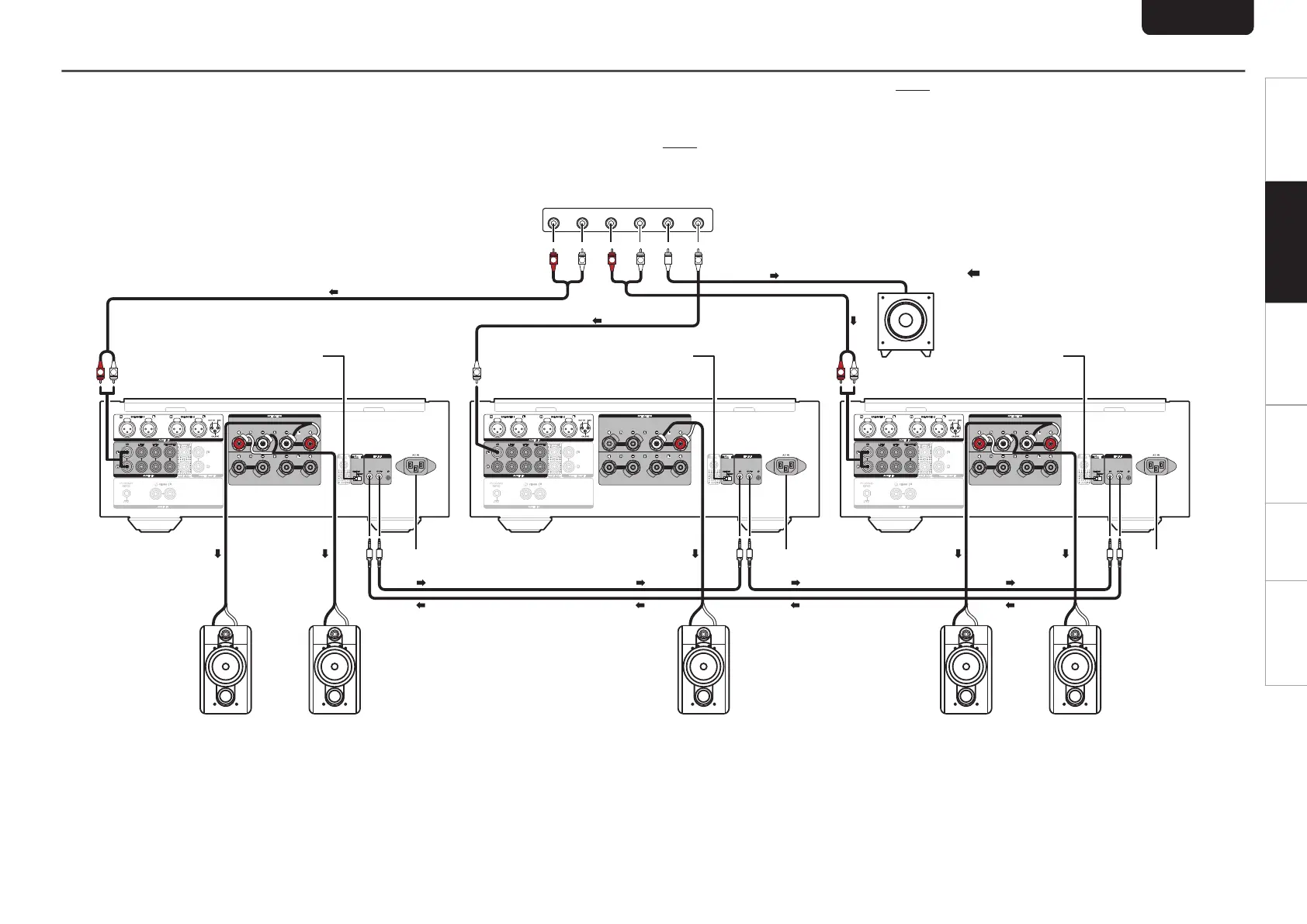

Connection for 5.1 Multi-channel Playback
The three units are connected using F.C.B.S. For the F.C.B.S connection, prepare 3 audio connection cables, and refer to F.C.B.S.. (v p. 11)
Connect the outputs of players that have 5.1 channel analog outputs to each of the three units.
If using an active subwoofer, see the instruction manual that came with the subwoofer for further instructions.
Set the ID numbers for the three amplifiers as explained in How to set ID number for F.C.B.S..
(v
p. 12)
0
When the ID 1 unit is operated, ID 2 and ID 3 units will operate in sync.
.
FRONT R FRONT L SURROUND R
MULTI CHANNEL AUDIO OUT
SURROUND L SUB-WOOFER CENTER
L
L
R
L
R
L
R
L L
R
: Signal flow
Set to “STEREO”.
Set to “STEREO”.
Set to “STEREO”.
For front L/R speakers
Set PM-10 to ID 1
For center speaker
Set PM-10 to ID 2
For surround speakers
Set PM-10 to ID 3
To power outlet.
To power outlet.
To power outlet.
R CH surround
speaker
L CH surround
speaker
Front center
speaker
R CH front
speaker
L CH front
speaker
SACD multi-channel player, etc.
