Marantz PM-15S2 User Manual

4
ENGLISH
NAMES AND FUNCTIONS BASIC CONNECTIONS BASIC OPERATIONS
ADVANCED CONNECTIONS
ADVANCED OPERATIONS TROUBLESHOOTING OTHERSNAMES AND FUNCTIONS
NAMES AND FUNCTIONS
q INPUT SELECTOR Knob
This knob is for selecting the input source to use in playback
and recording. The selected input source is displayed in the
display.
w DISPLAY Button
This button turns the display and side illumination ON and
OFF. For instructions on HOW TO OPERATE THE SIDE
ILLUMINATION, see page. 19.
e TONE Button
This button turns the tone control ON or OFF.
r SPEAKERS Button
This button turns the speaker output to the speakers connected
to the SPEAKER SYSTEMS terminals on the rear panel ON
or OFF. To listen with headphones, turn speaker output OFF
with this button.
t Display
Indicate the selected input source, volume level, and setting
status.
y PHONO MC Button
This button switches the phono equalizer between MC and
MM. When MC is set, the center of the button is lit a blue
color. Set the phono equalizer amplifier according to the type
of cartridge you use.
u P.DIRECT IN Button
To use this unit as a power amplifier, hold this button pressed
for at least 3 seconds until the indicator lights.
While this unit serves as a power amplifier, the volume
level cannot be adjusted with the VOLUME knob.
To cancel power amplifier direct mode, hold this button pressed
again for at least 3 seconds.
See also t P.DIRECT IN Jacks, page 7.
i ATT Button
This button attenuates the volume with one press of the button.
For instructions on How to Set the Attenuation Level, see
page. 19.
o VOLUME Knob
This knob is for setting the volume. The volume level is
displayed on the display.
During power amplifier direct mode, the volume cannot be
changed.
!0 Illumination Lamp
The illumination lamp casts a blue light over the switches
and buttons. It can be turned ON and OFF with the DISPLAY
button. For instructions on HOW TO OPERATE THE SIDE
ILLUMINATION, see page. 19.
!1 Tone Control Knobs (BASS, TREBLE)
These knobs control bass and treble tones.
The bass and treble tones are increased as the corresponding
knobs are turned clockwise and decreased as they are turned
counterclockwise.
When the TONE button is set to OFF, the tone cannot be
controlled.
!2 POWER ON/OFF Switch
This switch turns power to the unit ON and OFF. When pressed,
power is activated and the blue indicator in the display lights
up. Pressing the switch again turns the power OFF.
!3 Infrared Receptor Window
This receptor window receives control signals sent from the
included remote controller.
!4 PHONES Jack
This jack is for connecting headphones with a standard stereo
plug.

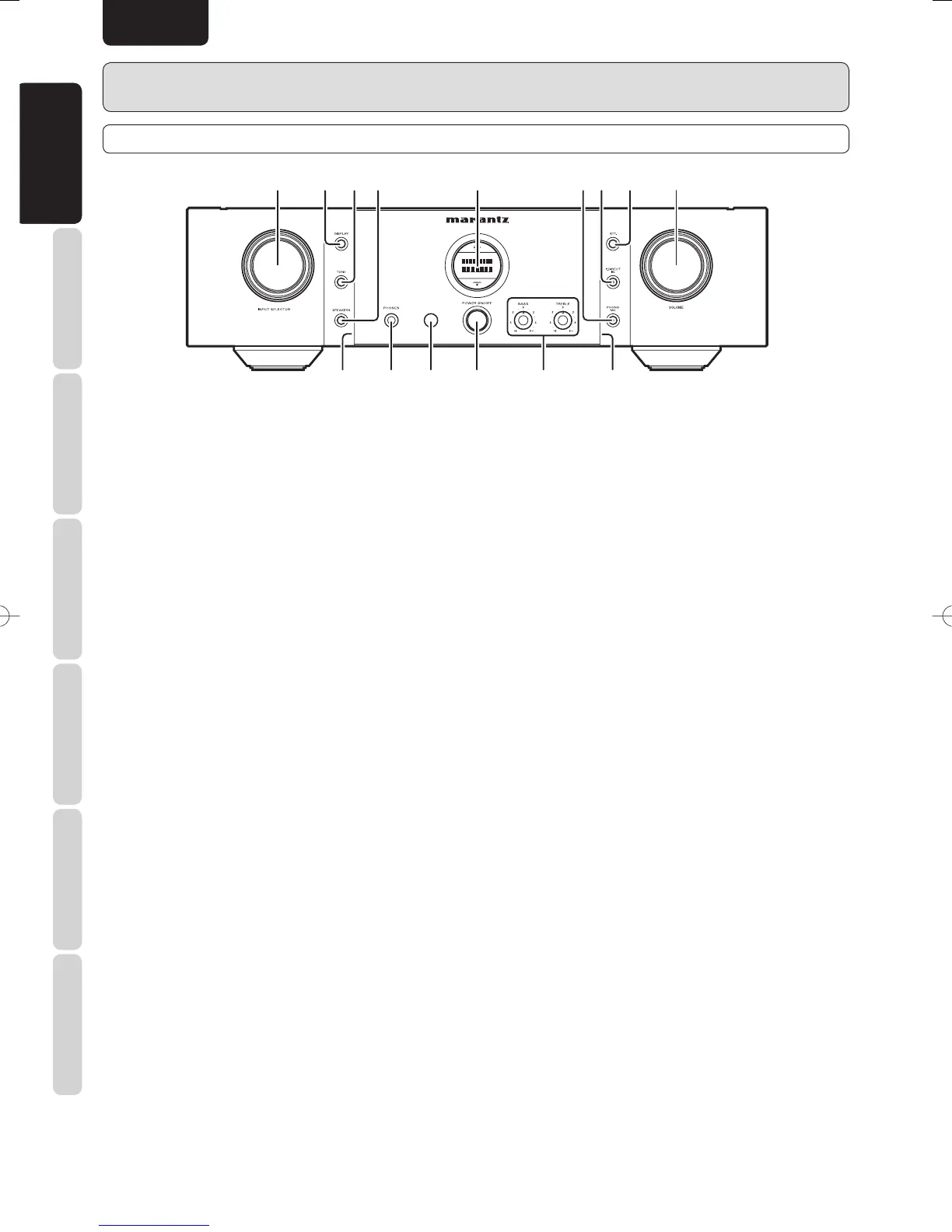

qwer t yuio
!0!1!2!3!4!0
FRONT PANEL
PM-15S2UN01Eng.indd4PM-15S2UN01Eng.indd4 09.5.182:56:59PM09.5.182:56:59PM

Marantz PM-15S2 Specifications

General

Damping factor	100
Amplifier class	-
Frequency range	5 - 100000 Hz
Input sensitivity	2.7 mV
Audio output channels	2.0 channels
Peak power per channel	140 W
Signal-to-Noise Ratio (SNR)	89 dB
Total Harmonic Distortion (THD)	0.05 %
Dynamic power per channel (4 Ohm)	95 W
Dynamic power per channel (8 Ohm)	155 W
RMS power output per channel (8 Ohm)	90 W
Pre out port	Yes
Audio (L/R) in	6
Audio (L/R) out	2
Headphone outputs	1
Speakers connectivity type	RCA
Purpose	Home
Product color	Gold
Volume control	Rotary
Cables included	AC
Connectivity technology	Wired
Power consumption (typical)	220 W

Weight and Dimensions

Depth	444 mm
Width	440 mm
Height	123 mm
Weight	18500 g
