NAMES AND FUNCTIONSBASIC CONNECTIONSBASIC OPERATIONS
ADVANCED CONNECTIONS
ADVANCED OPERATIONSTROUBLESHOOTINGOTHERS NAMES AND FUNCTIONS

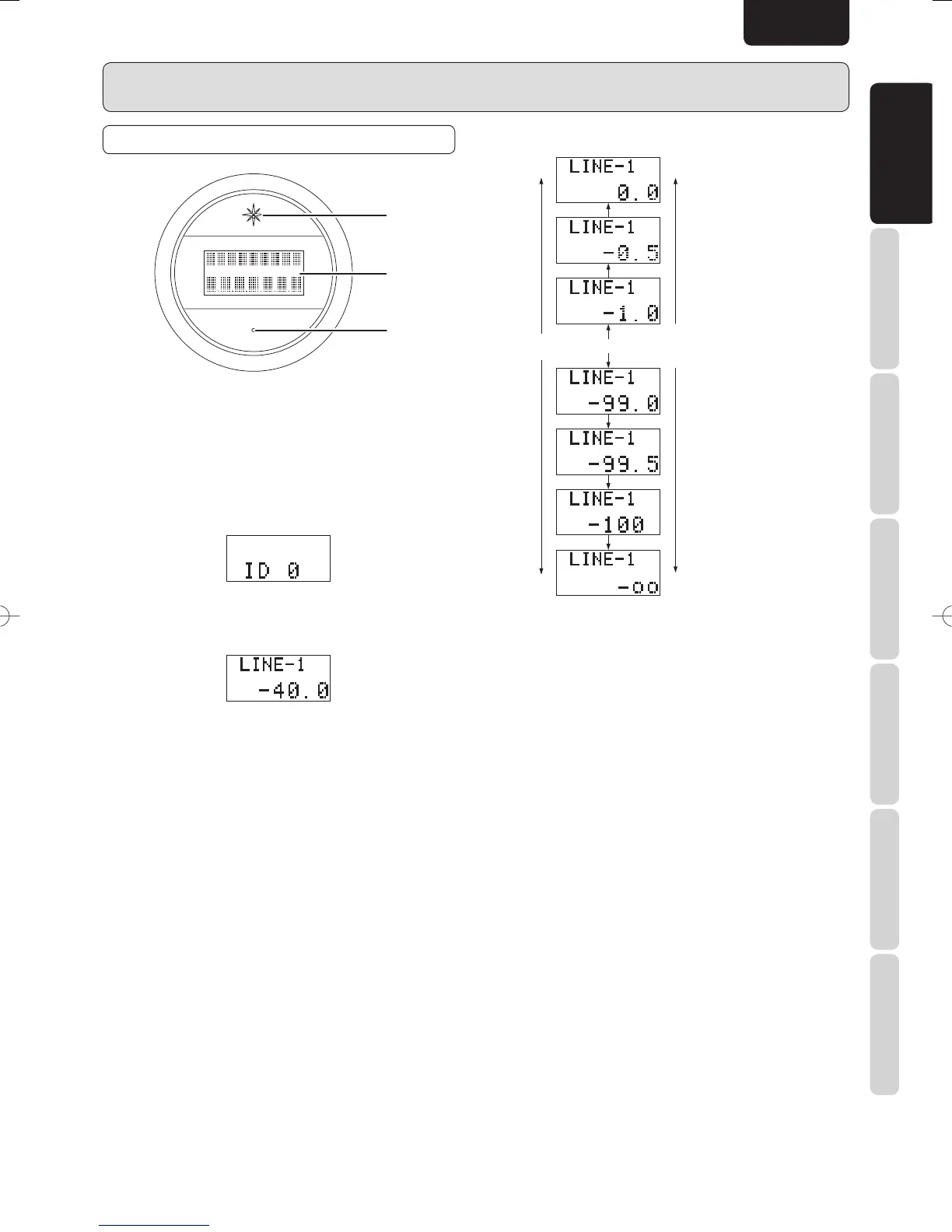

NAMES AND FUNCTIONS
DISPLAY
OPERATE
!5
!6
!7
!5 Power Indicator
This indicator is lit a blue color while power to the unit is ON.
!6 Display Panel
Approximately 3 seconds after the power to the unit is activated,
the ID number is displayed here.
After that, the top line displays the selected input source,
and the bottom line displays the volume level. The volume
attenuation (dB units) is displayed.
During power amplifier direct mode, the volume cannot be
changed.
The display also displays the setting values when adjusting
the left-right level balance. For instructions on How to Trim
Volume Level, see page. 18. Other messages that correspond
to various operations are also displayed.
!7 OPERATE Indicator
This indicator indicates the operating status of the unit.
When the ID is set to “0” for standalone operation, it is lit a red
color. When multiple amplifiers are connected by F.C.B.S., only
ID number “1” for the master is lit red color. The slave amplifier
whose indicator does not light a red color cannot be used to
operate other units in sync.
For more information on F.C.B.S., see page. 16.
The indicator flashes red if a protective circuit trips.
VOLUME Indicator Volume Display
Max
Min
0.5dB Steps
Turn the VOLUME knob on
the unit to the right, or press
the VOLUME 5 button on the
remote controller.
Turn the VOLUME knob on
the unit to the left, or press
the VOLUME ∞ button on the
remote controller.
