8
ENGLISH
NAMES AND FUNCTIONS BASIC CONNECTIONS BASIC OPERATIONS
ADVANCED CONNECTIONS
ADVANCED OPERATIONS TROUBLESHOOTING OTHERS
BASIC CONNECTIONS
BASIC CONNECTIONS

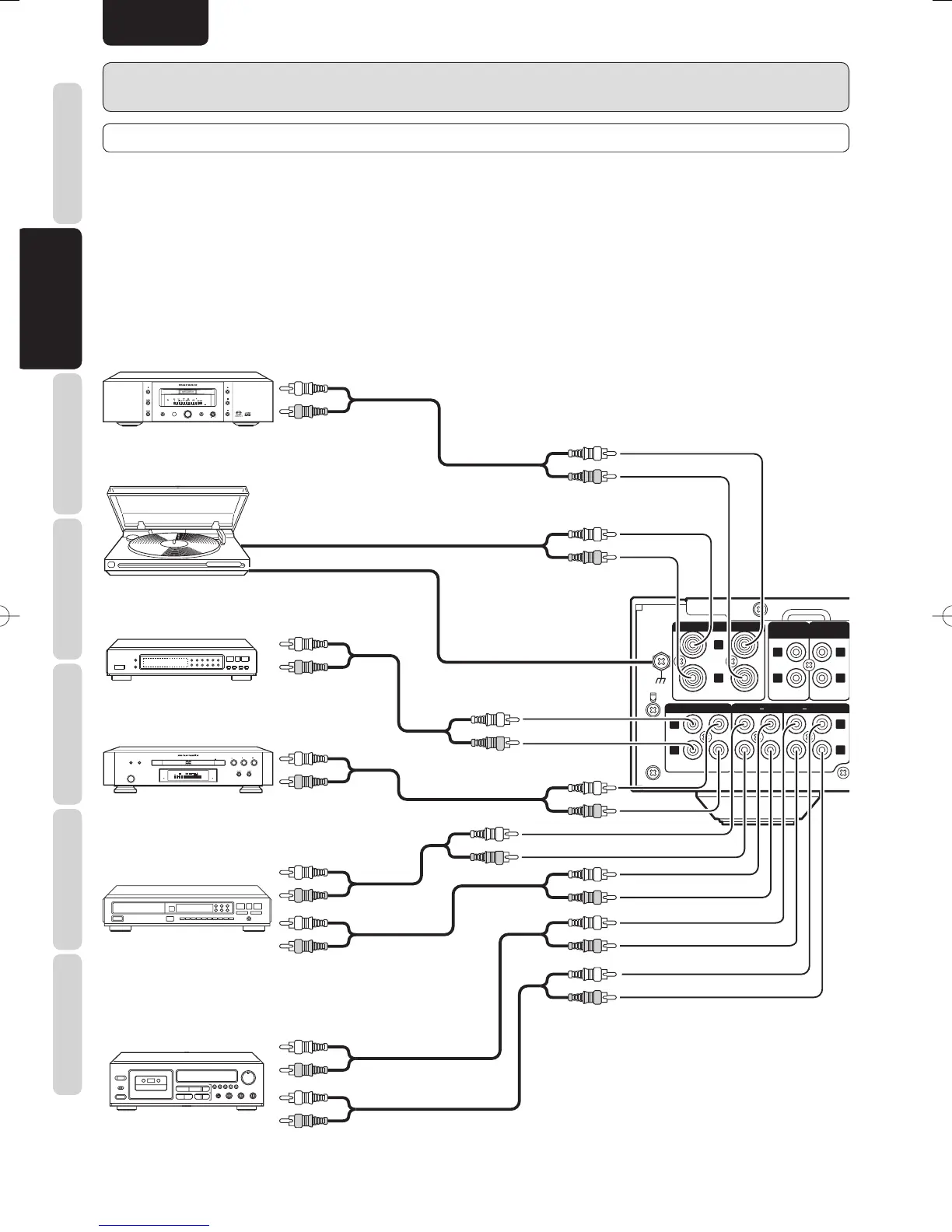

CONNECTING AUDIO COMPONENTS
Notes:
Do not connect this unit and other components to mains power until all connections between components have been completed.
Insert all plugs and connectors securely. Incomplete connections may make noise.
Be sure to connect the left and right channels properly.
Red connectors are for the R (right) channel, and white connectors are for the L (left) channel.
Be sure to connect input and output properly.
Refer to the instructions for each component that is connected to this unit.
Do not tie the connected cable into a bundle with the power supply cord or speaker cables. Doing so may cause noise.
PHONO
GND
PRE OUT
RECORDER
21LINE 21
OUTOUTIN IN
PHONO CD
L
R
L
R
L
R
L
R
L
R
P.DIRECT
IN
ININ
ININ
FL OFF
STANDBY
PAUSE
POWER
RANDOMDIMMER
PLAY STOP
DVD PLAYER DV-12S1
OPEN/CLOSEVIDEO ON/OFF
V-PART
DVD
AUDIO
192kHz
96kHz
TRK
CHP
TEMAIN
TOTAL
DOLBY D
DIG OFF
GRP
TITLE
VIDEO OFF
L C
LFE
R
LS S RS
PROGRESSIVE
LAST MEMO
CONDITION
DOWN MIX
PAUSE
STOP
PLAY
DISPLAY OFF
OPEN/
SOUND
POWER ON/OFF
SUPER AUDIO CD PLAYER SA-15S1
CLOSE
MODE
PONES LEVEL
CD Player
Record player
Tuner, etc.
DVD Player, etc.
CD-R, etc.
Tape deck, etc.
To LINE OUT jack
To LINE OUT jack
To LINE OUT jack
To LINE IN jack
To LINE OUT jack
To LINE IN jack
To LINE OUT jack
PM-15S2UN01Eng.indd8PM-15S2UN01Eng.indd8 09.5.182:57:00PM09.5.182:57:00PM

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Marantz PM-15S2 and is the answer not in the manual?

Marantz PM-15S2 Specifications

General IconGeneral
Damping factor100
Amplifier class-
Frequency range5 - 100000 Hz
Input sensitivity2.7 mV
Audio output channels2.0 channels
Peak power per channel140 W
Signal-to-Noise Ratio (SNR)89 dB
Total Harmonic Distortion (THD)0.05 %
Dynamic power per channel (4 Ohm)95 W
Dynamic power per channel (8 Ohm)155 W
RMS power output per channel (8 Ohm)90 W
Pre out portYes
Audio (L/R) in6
Audio (L/R) out2
Headphone outputs1
Speakers connectivity typeRCA
PurposeHome
Product colorGold
Volume controlRotary
Cables includedAC
Connectivity technologyWired
Power consumption (typical)220 W
Weight and Dimensions IconWeight and Dimensions
Depth444 mm
Width440 mm
Height123 mm
Weight18500 g
