10
ENGLISH
NAMES AND FUNCTIONS BASIC CONNECTIONS BASIC OPERATIONS
ADVANCED CONNECTIONS
ADVANCED OPERATIONS TROUBLESHOOTING OTHERS
BASIC CONNECTIONS BASIC OPERATIONS
BASIC CONNECTIONS
7

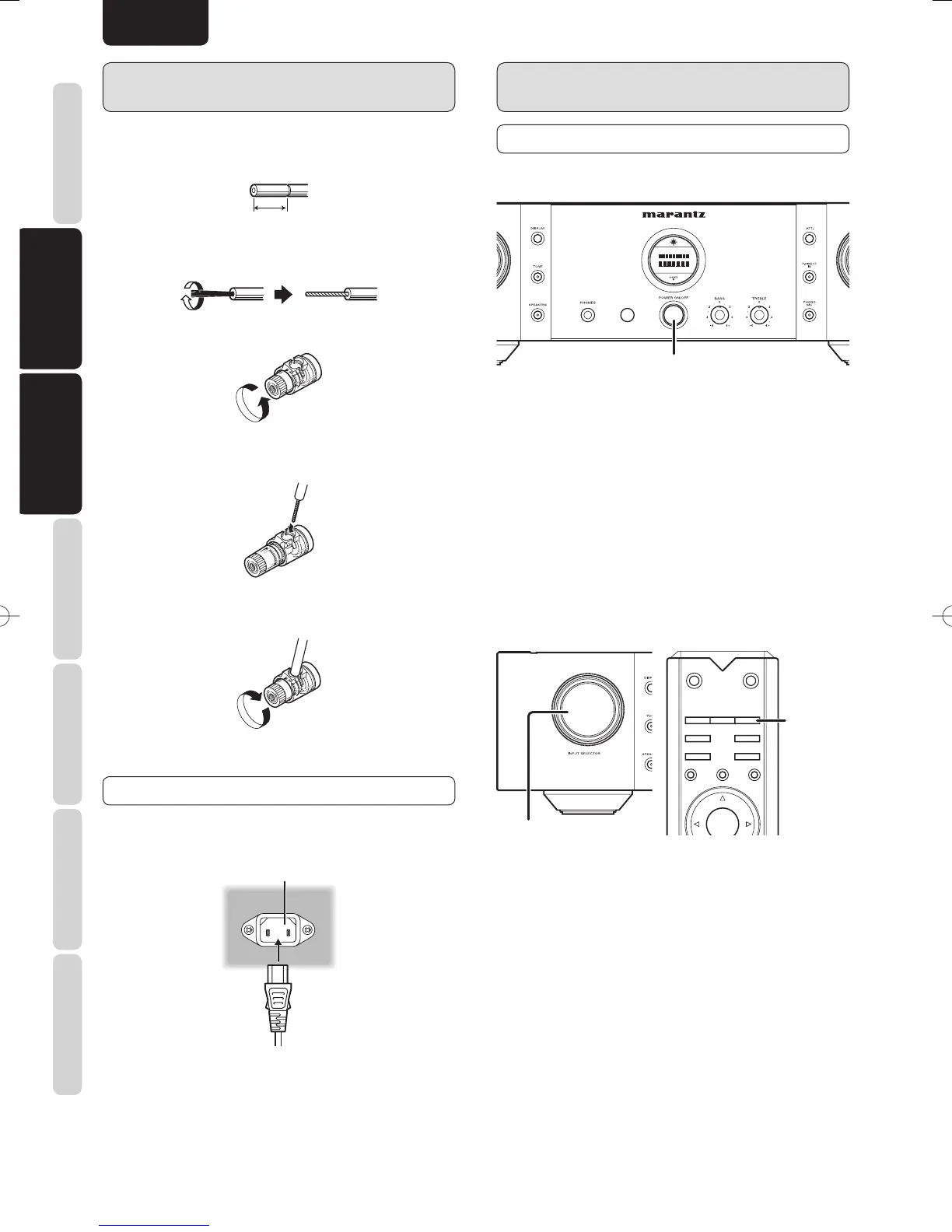

Wiring speaker cable
1.
Strip away approx. 10 mm (3/8 inch) of wire insulation.
10 mm
(3/8 in)
2.
Twist the bared wire ends tight, to prevent short circuits.
3.
Loosen the knob by turning it counterclockwise.
4.
Insert the bare part of the wire into the hole in side of
each terminal.
5.
Tighten the knob by turning it clockwise to secure the
wire.
CONNECTING OF AC POWER CABLE
1.
Plug the supplied AC power cable to the AC IN socket on
the rear panel of the main unit.
AC IN
2.
Plug the power cable into an AC outlet.
AMP OPERATION
7
Turning the Unit ON
POWER ON/OFF button
1.
Turn on the connected audio equipment, such as a CD
player.
2.
Press the POWER ON/OFF button of this unit.
7
Input Source Selection
Example: CD playback
(Operation with the controls on the main unit)
Set to CD by turning the INPUT SELECTOR knob.
(Operation with the controls on the remote controller)
Press the CD button on the remote controller.
L
TRIM
CLOSE
MODE
PHONO
CD
BALANCED
RECORDER 1
LINE 1
RECORDER 2
LINE 2
EXIT
TONE
ENTER
+
OPEN/ SOUND
R
INPUT SELECTOR knob
CD button
To use the speakers connected to the SPEAKER SYSTEMS
terminals, press the SPEAKERS button on the front panel to
set it to ON.
BASIC OPERATIONS
PM-15S2UN01Eng.indd10PM-15S2UN01Eng.indd10 09.5.182:57:00PM09.5.182:57:00PM

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Marantz PM-15S2 and is the answer not in the manual?

Marantz PM-15S2 Specifications

General IconGeneral
Damping factor100
Amplifier class-
Frequency range5 - 100000 Hz
Input sensitivity2.7 mV
Audio output channels2.0 channels
Peak power per channel140 W
Signal-to-Noise Ratio (SNR)89 dB
Total Harmonic Distortion (THD)0.05 %
Dynamic power per channel (4 Ohm)95 W
Dynamic power per channel (8 Ohm)155 W
RMS power output per channel (8 Ohm)90 W
Pre out portYes
Audio (L/R) in6
Audio (L/R) out2
Headphone outputs1
Speakers connectivity typeRCA
PurposeHome
Product colorGold
Volume controlRotary
Cables includedAC
Connectivity technologyWired
Power consumption (typical)220 W
Weight and Dimensions IconWeight and Dimensions
Depth444 mm
Width440 mm
Height123 mm
Weight18500 g
