SPECIFICATIONS

Power output (20 Hz – 20 kHz simultaneous drive of both channels)

(8Ω load) .....................................................................................................................................................................90 W x 2

(4Ω load) ...................................................................................................................................................................140 W x 2

Headphone rated output (When speaker rated output set to 8 Ω load) ........................................................120mW x 2 (32 Ω load)

Total harmonic distortion (20Hz – 20kHz simultaneous drive of both channels, 8 Ω load) .....................................................0.05 %

Output band width (8Ω load, 0.05%) .......................................................................................................................... 5 Hz ~ 40 kHz

Frequency response (CD, 1W, 8Ω load) .........................................................................................................5 Hz ~ 100 kHz ±3 dB

Dumping factor (8Ω load, 20Hz – 20kHz) ....................................................................................................................................100

Input sensitivity/Input impedance

PHONO (MC) .........................................................................................................................................................270 µV/100 Ω

PHONO (MM) ........................................................................................................................................................2.7 mV/47 kΩ

CD/LINE ................................................................................................................................................................240 mV/20 kΩ

P.DIRECT IN ............................................................................................................................................................. 1.7 V/20 kΩ

Output voltage/Output impedance

PRE OUT ..................................................................................................................................................................1.7 V/220 Ω

Maximum allowed PHONO input (1kHz)

MC .....................................................................................................................................................................................15 mV

MM ...................................................................................................................................................................................150 mV

RIAA deviation (20Hz ~ 20kHz) ............................................................................................................................................ ±0.5 dB

S/N (IHF-A, 1W, 8Ω load)

PHONO MC (0.5mV input)..................................................................................................................................................75 dB

PHONO MM (5mV input) ....................................................................................................................................................86 dB

CD/LINE (500mV input) ......................................................................................................................................................89 dB

Tone control

Bass (50Hz) ..................................................................................................................................................................... ±10 dB

Treble (20kHz) .................................................................................................................................................................. ±10 dB

Power requirement

...........................................................................................................................................................AC 120 V 60 Hz (U.S.A.)

.................................................................................................................................................... AC 230 V 50/60 Hz (Europe)

Power consumption

(EN60065 7th Ed.) .............................................................................................................................................................220 W

(UL60065) ..........................................................................................................................................................................220 W

Specifications subject to change without prior notice.

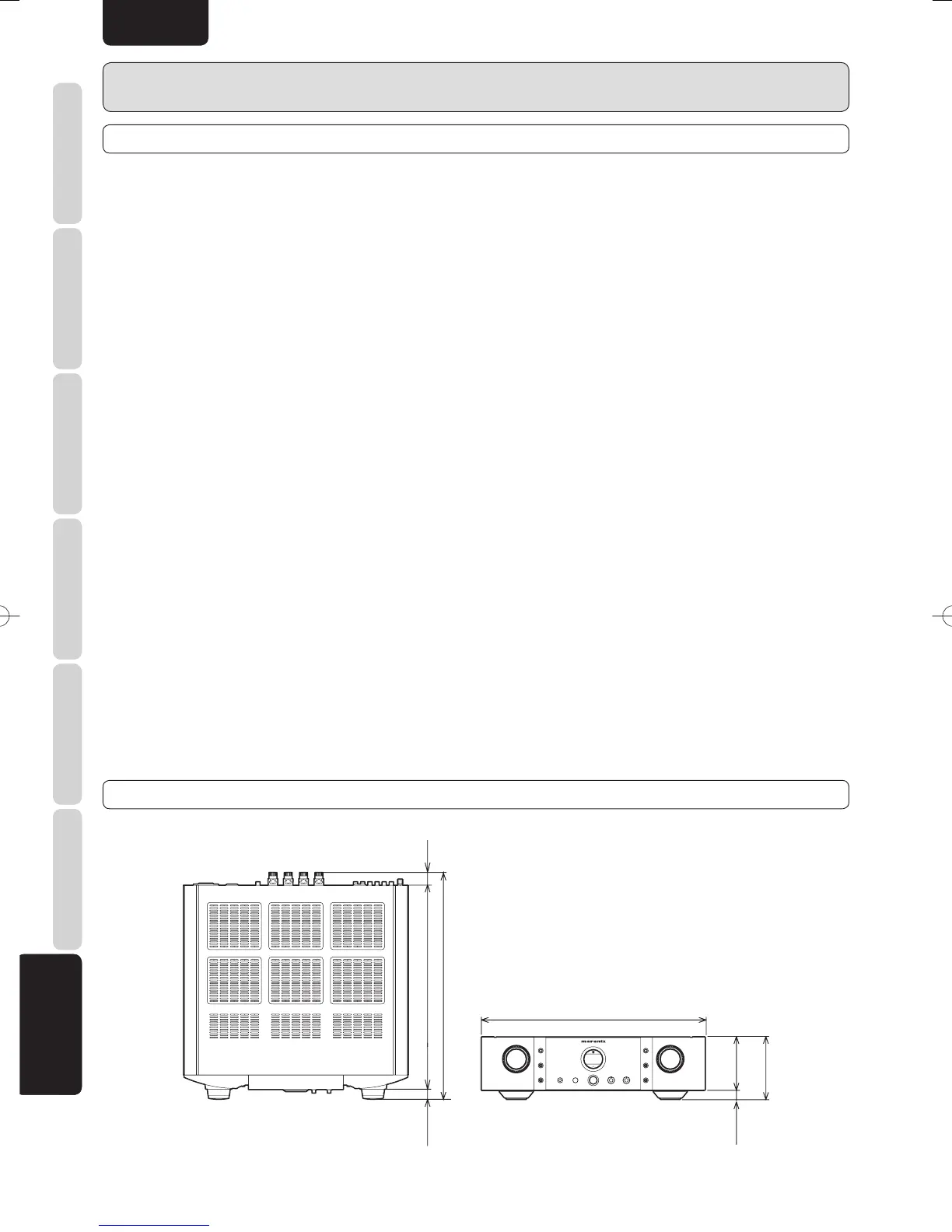

DIMENSIONAL DRAWINGS

(Unit: mm (in))

123

(4-7/8)

105

(4-3/16)

440 (17-3/8)

444 (17-1/2)

400 (15-3/4)

(3/4)

(
