Marantz PM-15S2 User Manual

19
ENGLISH
NAMES AND FUNCTIONSBASIC CONNECTIONSBASIC OPERATIONS
ADVANCED CONNECTIONS
ADVANCED OPERATIONSTROUBLESHOOTINGOTHERS ADVANCED OPERATIONS
ADVANCED OPERATIONS

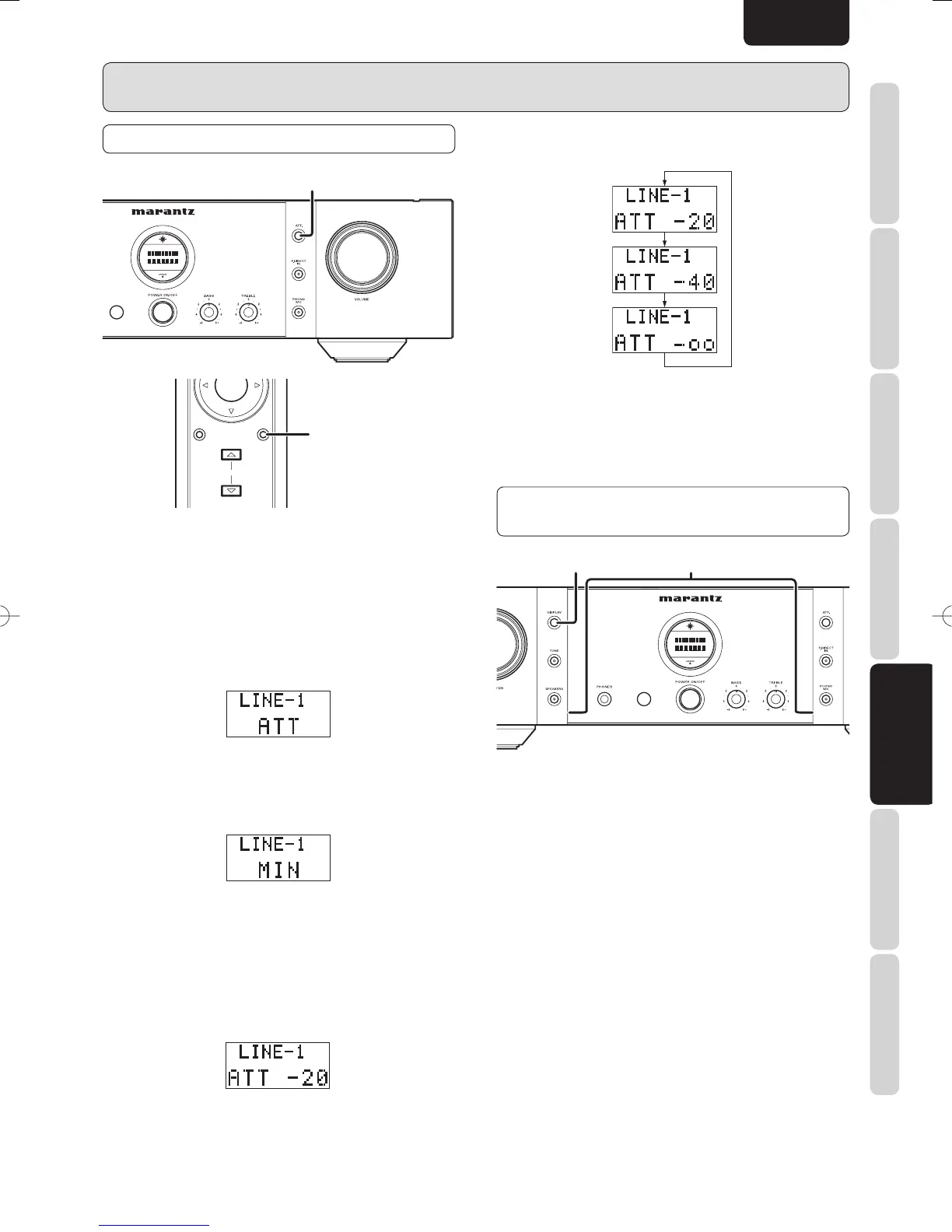

ATT (ATTENUATION)
VOLUME
ENTER
DISPLAY ATT
-
ATT button
ATT button
ATT is a one-touch feature for reducing the volume level. When
the ATT button on either the unit or remote controller is pressed,
the volume level is attenuated.
1.
When the ATT button on either the unit or the remote
controller is pressed, “ATT” flashes on the display and
the volume level is reduced.
When the ATT button is pressed again or the volume
is increased/decreased using the controls, the mode is
canceled and the original volume level is restored.
2.
When the ATT button is pressed with the volume level at
-∞(muted), the display will change as it is shown below
appears for about 3 seconds, and attenuation is not
applied.
7
How to Set Attenuation Level
Attenuation level can only be set using the ATT button on the
unit. The attenuation level can be set at –20dB, -40dB, or -∞.
The factory default setting is -20dB.
1.
Press and hold the ATT button on the unit for 2 seconds or
longer. The attenuation level will appear on the display.
2.
The attenuation level setting value changes with each
press of the ATT button on the unit.
3.
When the desired attenuation level setting appears on
the display, leave it unchanged for 2 seconds or longer
to enter the setting. Once entered, the display returns to
the volume level indication.
HOW TO OPERATE THE SIDE
ILLUMINATION
DISPLAY button Illumination Lamp
The illumination lamp has an always-ON mode (factory setting)
and an always-OFF mode.
In the always-ON mode, the illumination lamp turns ON/OFF
in sync with the display.
1.
With the illumination lamp lit, press and hold the DISPLAY
button for 3 seconds or longer. The illumination lamp goes
out, and the always-OFF mode is engaged.
2.
To cancel the always-OFF mode and turn the illumination
lamp ON, press and hold the DISPLAY button for 3
seconds or longer.
Note:
Setting of the illumination lamp cannot be performed with the
remote controller.
PM-15S2UN01Eng.indd19PM-15S2UN01Eng.indd19 09.5.182:57:03PM09.5.182:57:03PM

Marantz PM-15S2 Specifications

General

Damping factor	100
Amplifier class	-
Frequency range	5 - 100000 Hz
Input sensitivity	2.7 mV
Audio output channels	2.0 channels
Peak power per channel	140 W
Signal-to-Noise Ratio (SNR)	89 dB
Total Harmonic Distortion (THD)	0.05 %
Dynamic power per channel (4 Ohm)	95 W
Dynamic power per channel (8 Ohm)	155 W
RMS power output per channel (8 Ohm)	90 W
Pre out port	Yes
Audio (L/R) in	6
Audio (L/R) out	2
Headphone outputs	1
Speakers connectivity type	RCA
Purpose	Home
Product color	Gold
Volume control	Rotary
Cables included	AC
Connectivity technology	Wired
Power consumption (typical)	220 W

Weight and Dimensions

Depth	444 mm
Width	440 mm
Height	123 mm
Weight	18500 g
