Marantz PM-KI RUBY User Manual

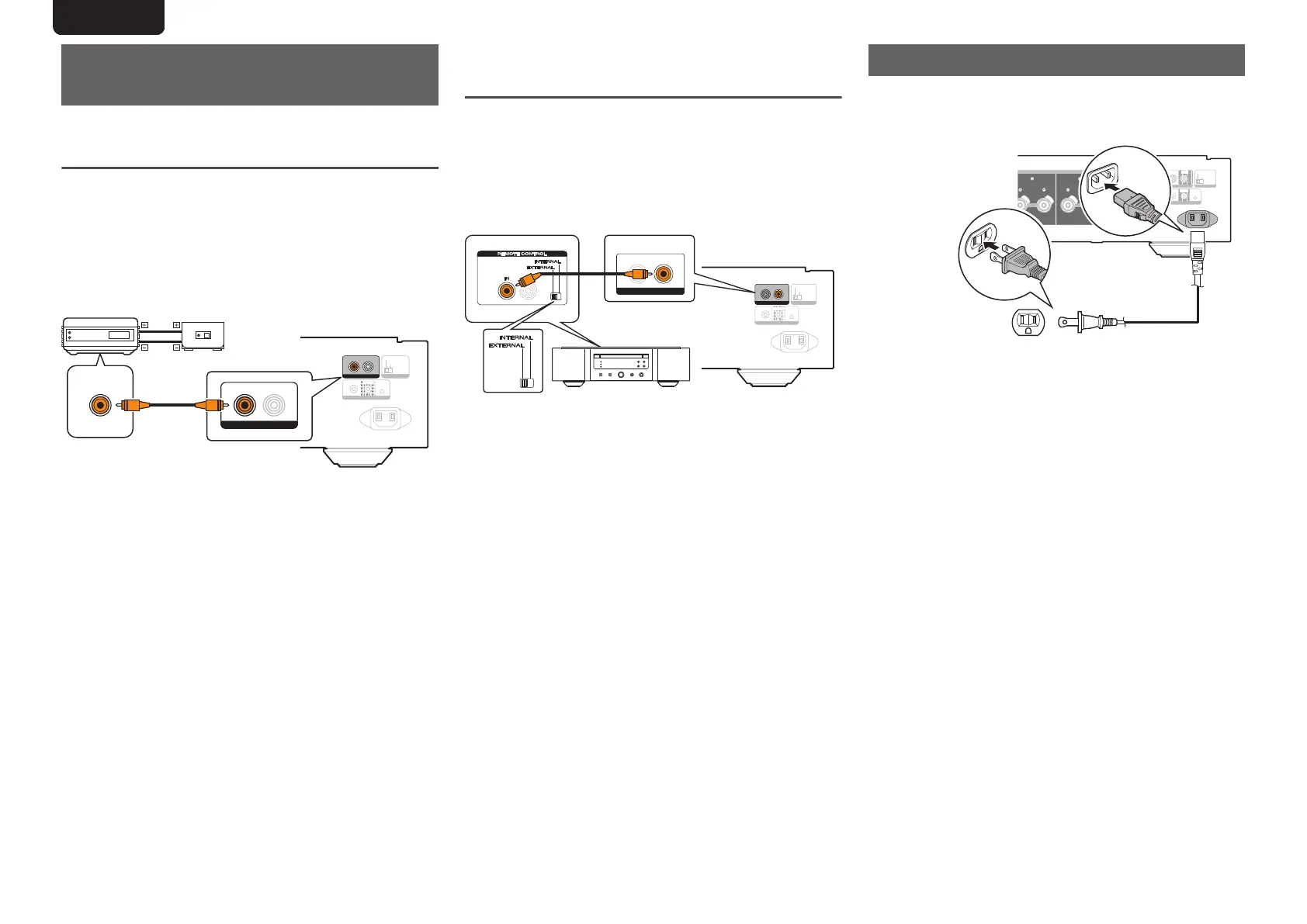

Connecting devices with
remote control connectors
Performing operations by RC on
this unit without visual contact
You can connect an external IR receiver to the REMOTE
CONTROL connectors to perform operations on this unit with
the supplied remote control unit without visual contact. This
might be necessary if the unit is hidden in a cupboard or
corner, so you can’t directly point with the remote control unit
to the device.
.
AC IN
AC IN
IN
IN
ID
ID
STEREO
STEREO
BI-AMP
BI-AMP
F.C.B.S.
F.C.B.S.
REMOTE CONTROL
REMOTE CONTROL
AMP MODE
AMP MODE
OUT
OUT
IN
IN
OUT
OUT
RC OUT IN
IN
REMOTE CONTROL
REMOTE CONTROL
OUT
OUT
Infrared
retransmitter
Infrared
sensor
Remotely connecting Marantz audio
devices
You can transmit remote control signals simply by connecting
a Marantz audio device to the REMOTE CONTROL IN/OUT
connectors using the remote connection cable provided with
the device.
Set the remote control switch located on the rear panel of the
connected audio component to “EXTERNAL” to use this
feature.
.
AC IN
AC IN
ID
ID
STEREO
STEREO
BI-AMP
BI-AMP
F.C.B.S.
F.C.B.S.
AMP MODE
AMP MODE
OUT
OUT
IN
IN
IN
IN
REMOTE CONTROL
REMOTE CONTROL
OUT
OUT
IN
IN
REMOTE CONTROL
REMOTE CONTROL
OUT
OUT
Connecting the power cord
After completing all the connections, insert the power plug
into the power outlet.
.
SPEAKERS
SPEAKERS
IMPEDANCE : 4
IMPEDANCE : 4㹼
16
16Ȑ
IN
IN
ID
ID
STEREO
STEREO
BI-AMP
BI-AMP
F.C.B.S.
F.C.B.S.
REMOTE CONTROL
REMOTE CONTROL
AMP MODE
AMP MODE
OUT
OUT
IN
IN
OUT
OUT
AC IN
AC IN
Power cord (supplied)
To household power outlet
(AC 120V, 60 Hz)
ENGLISH
15
PrintingColor:Black

Marantz PM-KI RUBY Specifications

General

Type	Integrated Amplifier
Signal to Noise Ratio MC	75 dB
Damping Factor	100
Dimensions	440 x 127 x 453 mm
Frequency Response	5Hz - 50kHz
Total Harmonic Distortion	0.005%
Input Sensitivity MM	2.5 mV / 47 kohm
Input Sensitivity	200 mV / 22 kohm
