Marantz PM-KI RUBY User Manual

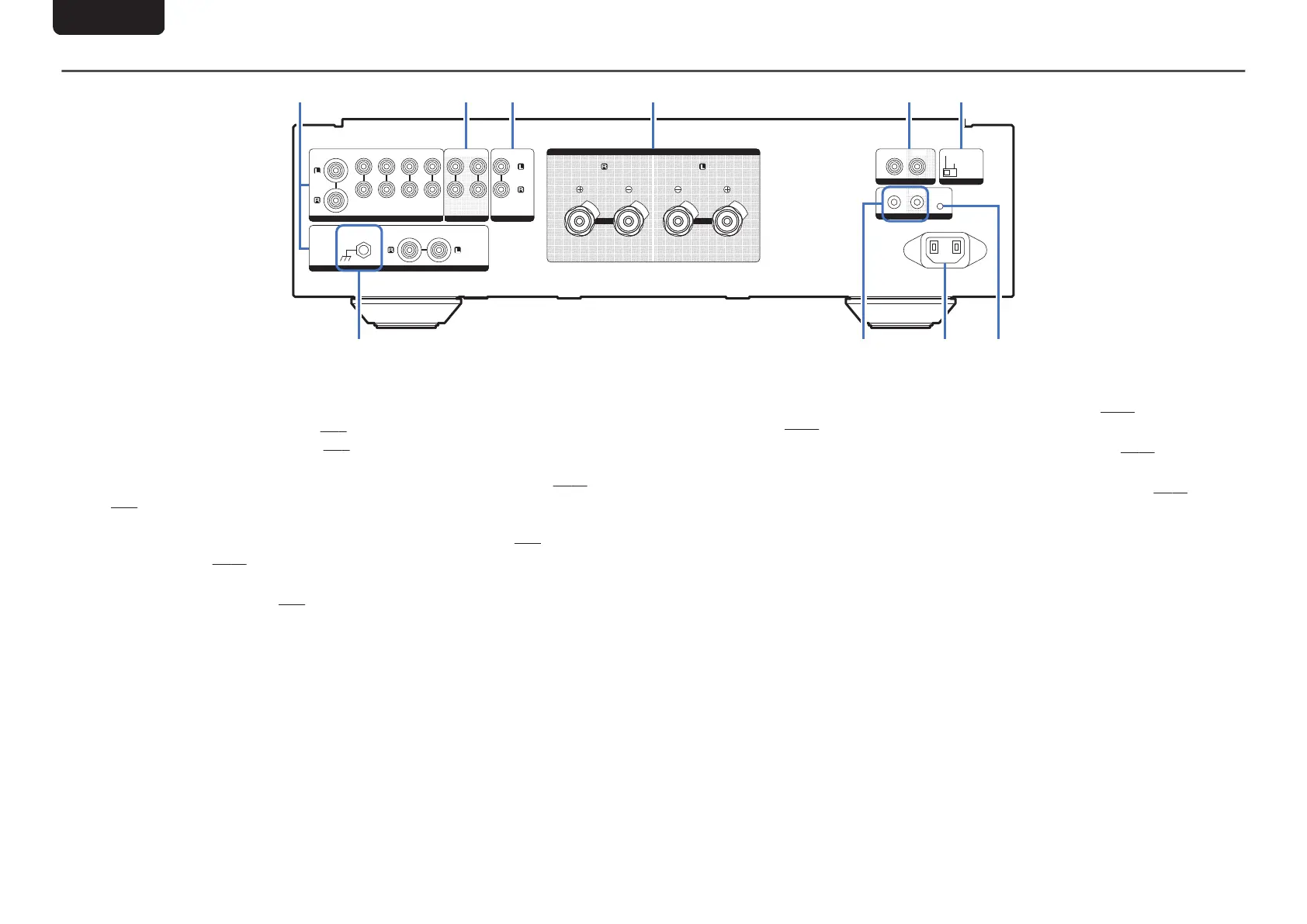

Rear panel
.
AC IN
AC IN
AUDIO IN
AUDIO IN
POWER AMP IN
POWER AMP IN
AUDIO IN
AUDIO IN
CD
CD
LINE-1
LINE-1
PHONO
PHONO
SIGNAL
SIGNAL
GND
GND
LINE-2
LINE-2
RECORDER-
RECORDER- 1
RECORDER-
RECORDER- 2
RECORDER-
RECORDER- 1
RECORDER-
RECORDER- 2
SPEAKERS
SPEAKERS
IN
IN
ID
ID
STEREO
STEREO
BI-AMP
BI-AMP
F.C.B.S.
F.C.B.S.
REMOTE CONTROL
REMOTE CONTROL
AMP MODE
AMP MODE
OUT
OUT
IN
IN
OUT
OUT
AUDIO OUT
AUDIO OUT
ioQ
0
u
er tywq
A
Analog audio input connectors (AUDIO IN)
Connecting to a device with analog audio output
connectors.
0
“Connecting a playback device” (v
p. 9)
0
“Connecting a recording device” (v
p. 9)
B
Analog audio output connectors (AUDIO OUT)
Used to connect the input connector of a recorder.
(v p. 9)
C
Power amplifier connectors (POWER AMP IN)
Used to connect a pre-amplifier when this unit is used as a
power amplifier. (v p. 14)
D
Speaker terminals (SPEAKERS)
Used to connect speakers. (v p. 8)
E
Remote control input/output connectors (REMOTE
CONTROL)
Used to connect to a Marantz audio device that is
compatible with the remote control function. (v p. 15)
F
AMP MODE switch
Used to switch the amplifier mode (STEREO/BI-
AMP). (v p. 11)
G
SIGNAL GND terminal
Used to connect the ground wire of a turntable.
(v p. 9)
H
F.C.B.S. connectors
Used to connect a high quality playback system using two
or more of PM-KI RUBY units. (v p. 10)
I
AC inlet (AC IN)
Used to connect the power cord. (v p. 15)
J
F.C.B.S. ID button
Used to set the ID number for F.C.B.S. (v p. 11)
ENGLISH
5
PrintingColor:Black

Marantz PM-KI RUBY Specifications

General

Type	Integrated Amplifier
Signal to Noise Ratio MC	75 dB
Damping Factor	100
Dimensions	440 x 127 x 453 mm
Frequency Response	5Hz - 50kHz
Total Harmonic Distortion	0.005%
Input Sensitivity MM	2.5 mV / 47 kohm
Input Sensitivity	200 mV / 22 kohm
