Contents
Front panel Rear panel IndexRemote

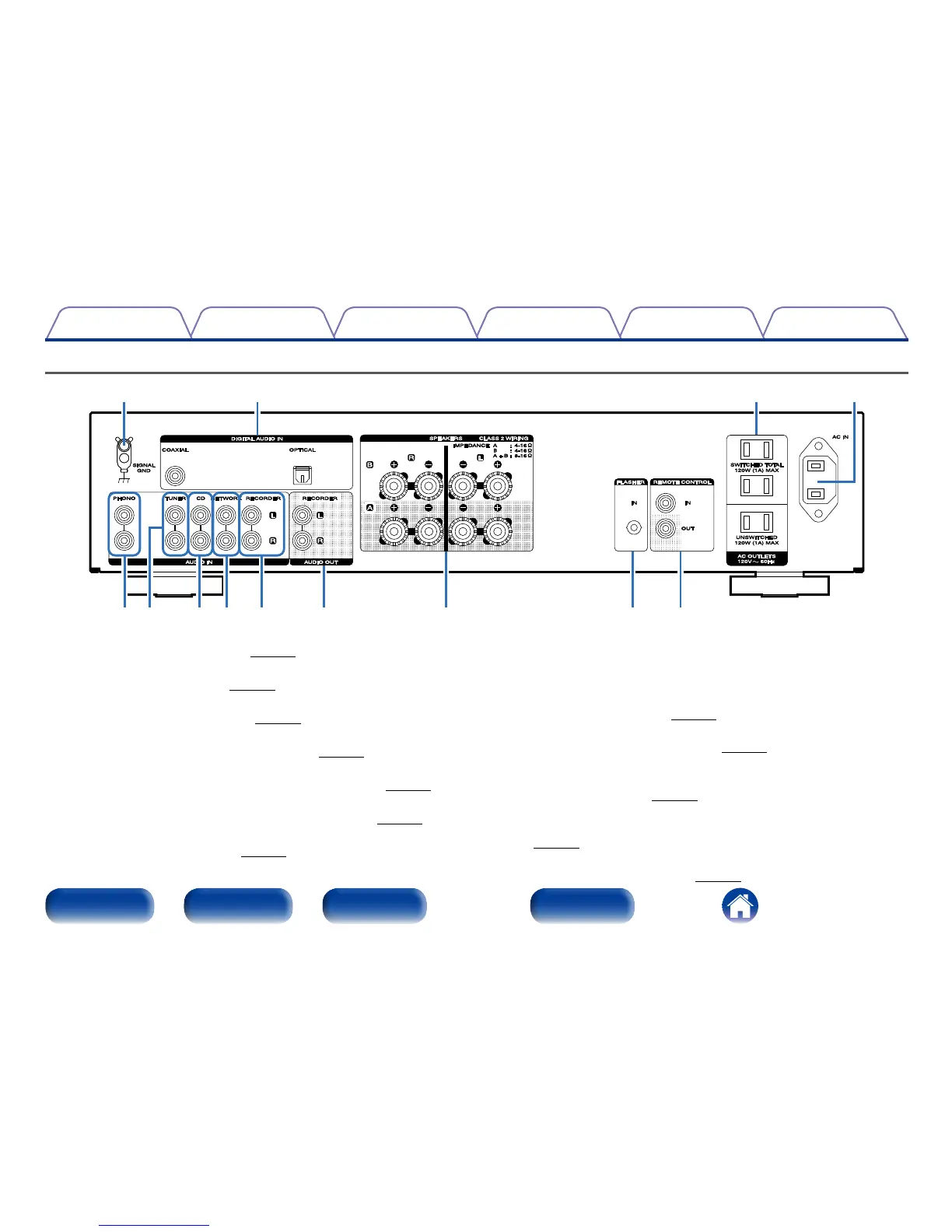

Rear panel
uyewq oi
Q2 Q1Q3 Q0
r t
q Turntable input connectors (PHONO)
Used to connect a turntable (vpage18).
w Tuner input connectors
Used to connect a tuner (vpage18).
e CD input connectors
Used to connect a CD player (vpage18).
r Network audio player input connectors (NETWORK)
Used to connect a network audio player (vpage18).
t Recorder input connectors (RECORDER)
Used to connect the output connector of a recorder (vpage19).
y RECORDER output connectors (RECORDER)
Used to connect the input connector of a recorder (vpage19).
u Speaker system terminals (SPEAKERS)
Used to connect speakers (vpage15).
i FLASHER IN jack
Used when using a control BOX or other such control devices to
control this unit.
o Remote control input/output connectors (REMOTE CONTROL)
Used to connect to a Marantz audio device that is compatible with the
remote control function (vpage21).
Q0 AC inlet (AC IN)
Used to connect the power cord (vpage22).
Q1 AC outlets (AC OUTLETS)
Used to connect the AC outlets of this unit in order to supply power to
other AV equipment (vpage22).
Q2 Digital audio input connectors (COAXIAL/OPTICAL)
Used to connect a device with a TV or digital audio connector
(vpage20).
Q3 SIGNAL GND jacks
Used to connect a turntable (vpage18).

Marantz PM6005 Specifications

General

Amplifier class	-
Frequency range	10 - 70000 Hz
Input sensitivity	200 mV
Audio output channels	2.0 channels
Peak power per channel	60 W
Signal-to-Noise Ratio (SNR)	102 dB
Total Harmonic Distortion (THD)	0.08 %
RMS power output per channel (8 Ohm)	45 W
AC (power) in	Yes
Audio (L/R) in	5
Audio (L/R) out	1
Speakers connectivity type	RCA
Purpose	Home
Product color	Black
Connectivity technology	Wired
AC input voltage	120 V
AC input frequency	60 Hz
Power consumption (standby)	0.3 W
Power consumption (typical)	155 W

Weight and Dimensions

Depth	370 mm
Width	440 mm
Height	105 mm
Weight	7600 g
