Bi-wiring connection

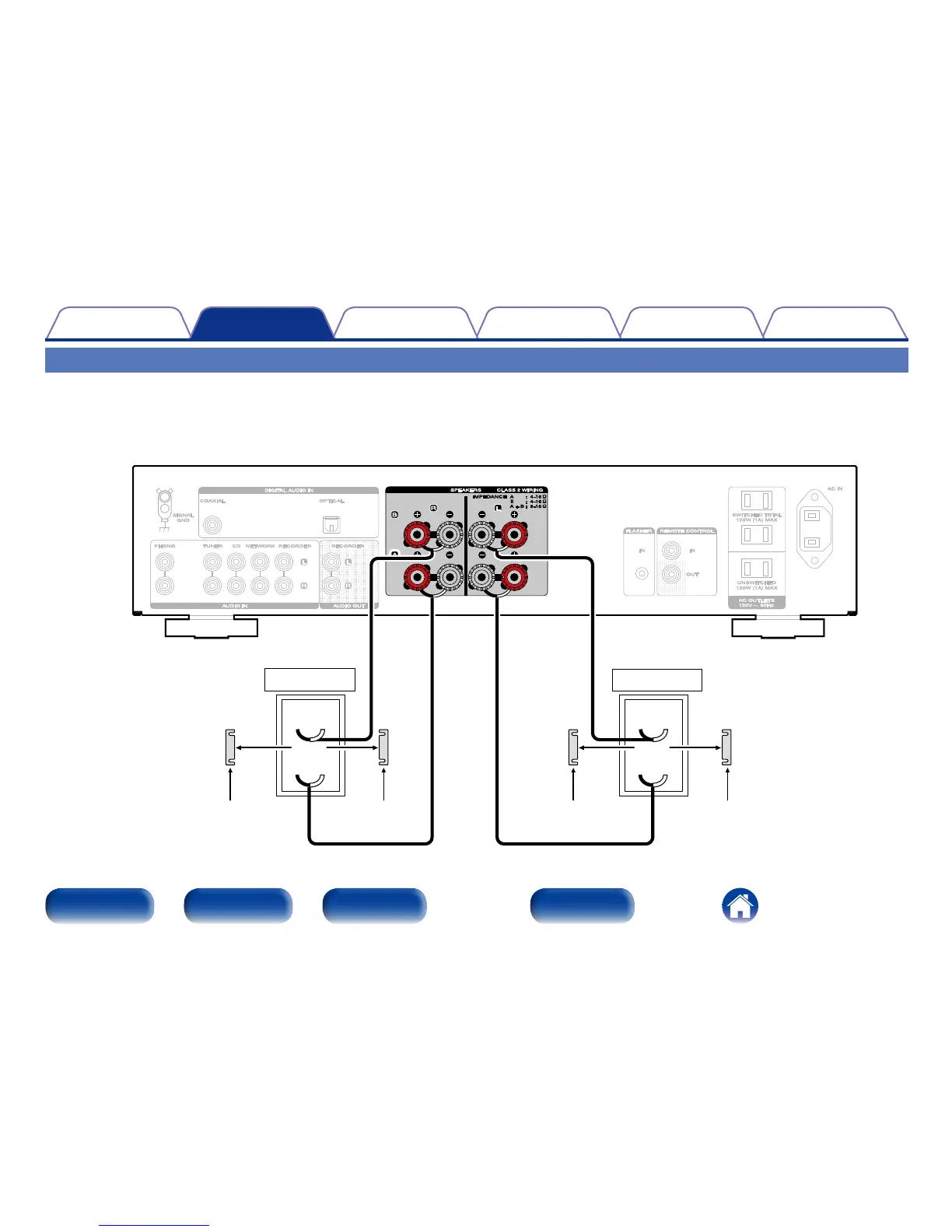

• When bi-wiring with bi-wireable speakers, connect the mid and high range terminals to SPEAKERS A (or SPEAKERS B), the low range terminals to
SPEAKERS B (or SPEAKERS A).
• This connection limits the eect of signal interference between the high range speakers and low range speakers, allowing you to enjoy high quality
playback.
w q
w q
HIGH
LOW
w q
w q
HIGH
LOW
Speaker (R)
Speaker (L)
Remove
shorting bar
Remove
shorting bar
Remove
shorting bar
Remove
shorting bar
