Marantz SR 8015 - Page 115

Check the power supply voltage. (HDMI SW2)
Check item(3-3.1.). Check the power supply voltage. :
Does the power supply voltage of the HDMI SW2 [U2601] indicate the correct voltage (1.1V)?
The test points are as follows.
HDMI SW2
U2601
112pin
Check item(3-3.2.). Check the power supply voltage. :
Check the power components [U3605] and the pattern on the sub-
strate.
If there is no problem, remove the HDMI SW2 [U2601] from the
substrate and measure the voltage at the test point of check item
(3-3.1.).
Is the power supply voltage correct (1.1V)?
Replace with a new device.
The power supply circuit is
faulty.
Replace the PCB.
Recheck from check item (3.1.).
If it does not work, replace the PCB.
Checking device. [U2601 : MN864788]

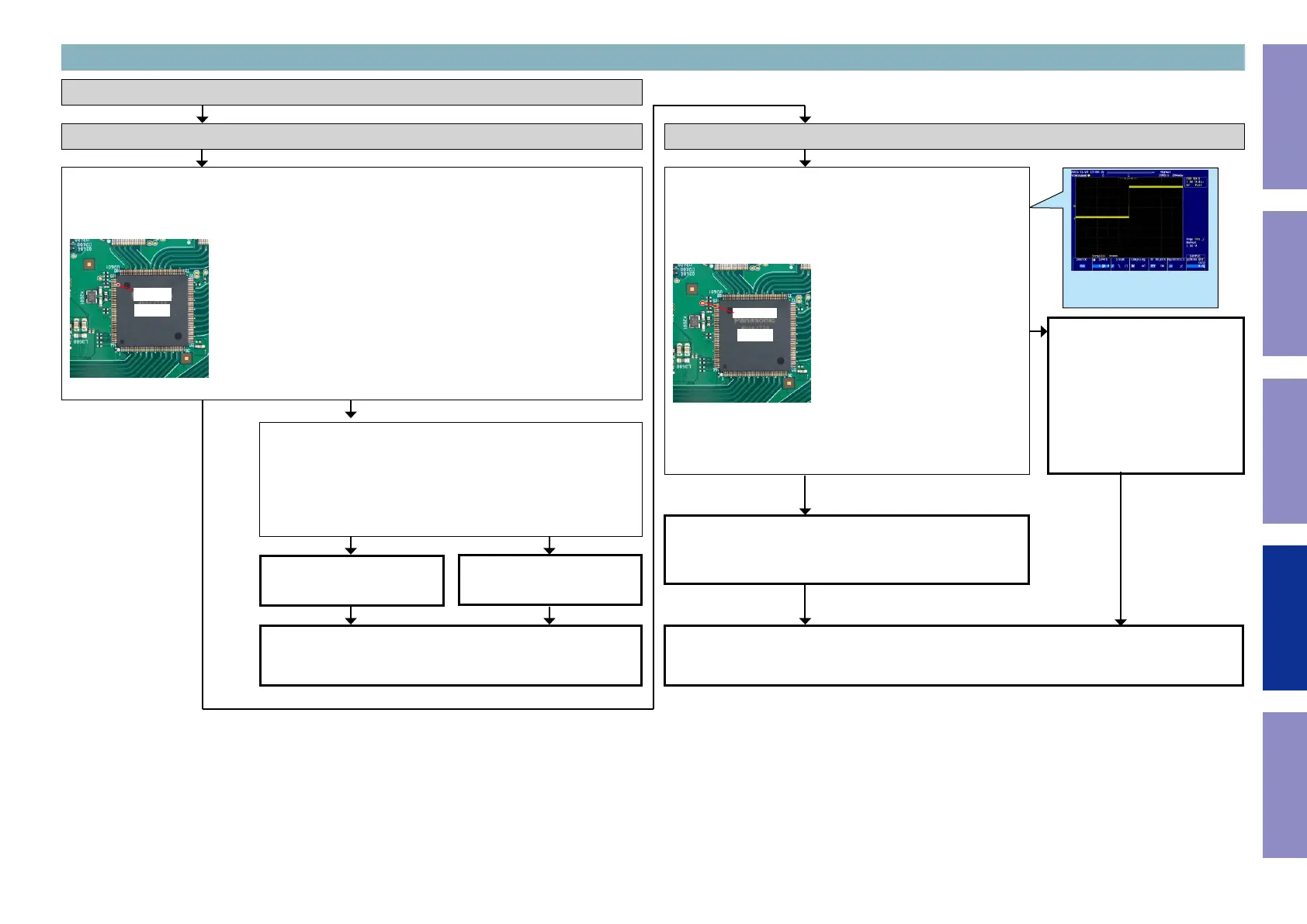

3-3. Error Code H1-03 failure detection procedure
NOYES
NOYES
Checking the reset waveform. (HDMI SW2)
Check item(3-3.3.). Checking the reset waveform :
Check the waveform.
Is the "TPX915" waveform of the TP near the HDMI SW2 [U2601]
correct (like the one shown in the diagram) when the power is
turned on?
HDMI SW2
U2601
TPX915
Check the reset circuit between
CPU [U6201] and HDMI SW2
[U2601].
If there is no problem, the HDMI
SW2 [U2601] is faulty.
Replace with a new device.
Recheck from check item (3-3.3.)
If it does not work, replace the
PCB.
NO
Examples of conrmation waveform
Voltage scale : 1.0V/div
Time scale : 20ms/div
check item (3.1.) again after replacing [R2630/R2631] with a new
resistor.
If there is still a problem, the HDMI SW2 [U2601] is faulty.
Replace with a new device.
Recheck from check item (3.1.).
If it does not work, replace the PCB.
YES
115
