Marantz SR 8015 - Page 30

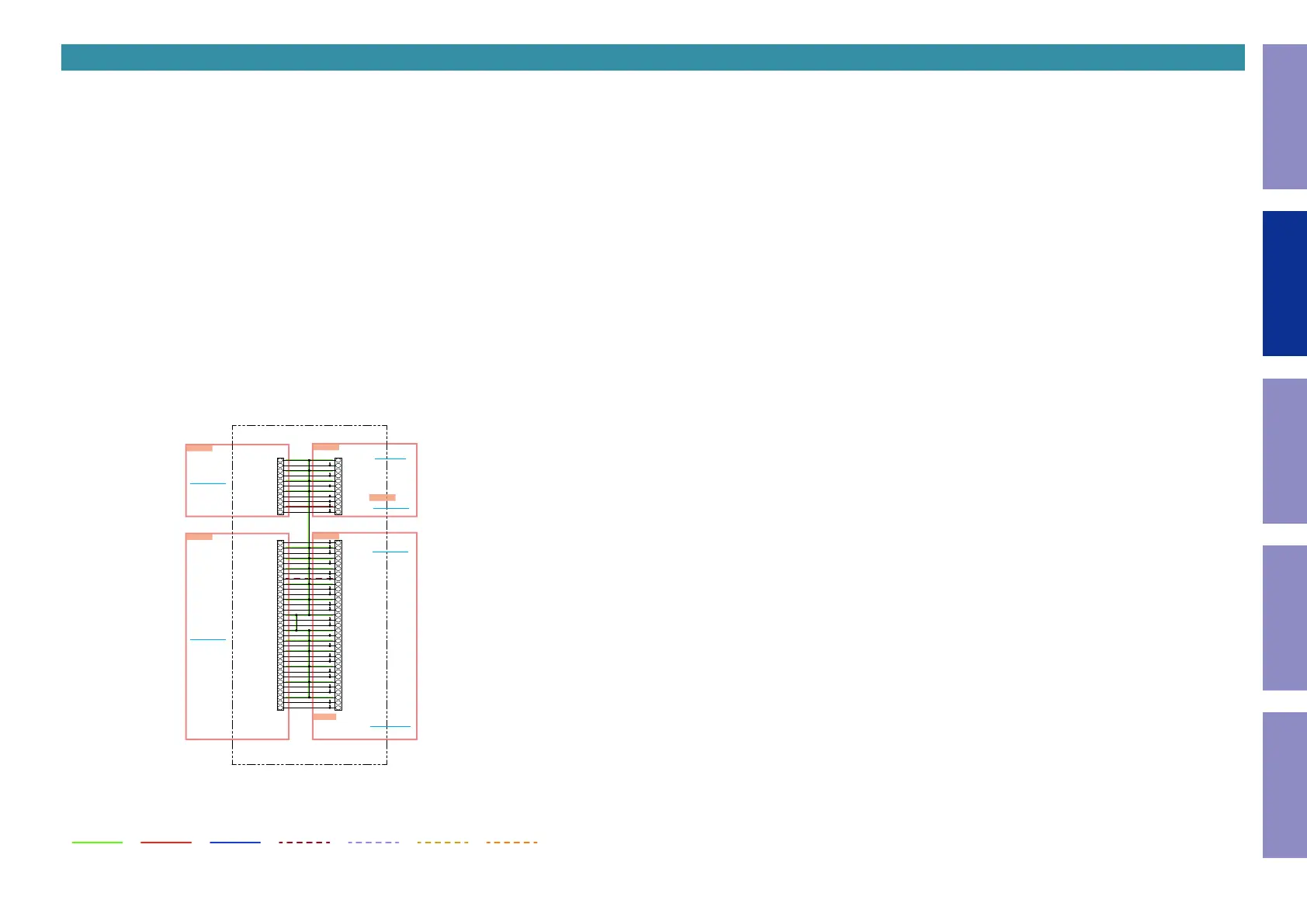

SCH18 SPK SIDE CONNECT
All Ref.No. has been described in the parts list are four digits.
But there are less than four digits of printed Ref.No. on the PCB, and they have become four digits after the header by adding "0" in the parts list.
DIGITAL VIDEOANALOG VIDEO AUDIO SIGNAL TMDS SIGNAL GND LINE POWER- LINE POWER+ LINE
33P-PLUG(C125Z1)
N902
33P-PLUG(C125Z1)
N904
SIDE_CONNECT_UNIT
8U-110229-13
11P-PLUG(C125Z1)
N901
11P-PLUG(C125Z1)
N903
To_8U-310239(N6014)
DIGITAL_UNIT(1/17)
To_8U-310239(N9030)
DIGITAL_UNIT(1/17)
To_8U-210251-1(N910)
DAC_UNIT(2/2)
To_8U-210251-1(N101)
DAC_UNIT(2/2)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
1
2
3
4
5
6
7
8
9
10
11
1
2
3
4
5
6
7
8
9
10
11
SIDE_CONNECT
DACLRCK4/DSDRSV
DACPCMH2/DSDH2L
DACPCMSB/DSDSBL
DACLRCK7/DSDH2R
DACLRCK4/DSDRSV
DACPCMS/DSDSL
DA3.3V
DACLRCK7/DSDH2R
DACPCMSW2RSV/DSDSW2
DACPCMS/DSDSL
DACLRCK1/DSDFR
DACPCMH1/DSDH1L
DACPCMSW2RSV/DSDSW2
DACLRCK2/DSDSW1
VOLMUTE
DACPCMH1/DSDH1L
DACLRCK8/DSDH3R
VOLMUTE
DMIXDAC_MUTE
DACPCMSB/DSDSBL
DMIXDAC_DATA
DMIXDAC_LRCK
DMIXDAC_MUTE
DMIXDAC_MCLK
DACLRCK3/DSDSR
DMIXDAC_LRCK
DACLRCK1/DSDFR
DACLRCK3/DSDSR
DMIXDAC_BCK
DACLRCK2/DSDSW1
DLHD
DACBCK2/LOGIC_LO2
DMIXDAC_BCK
DACPCMH3/DSDH3L
DACBCK1/LOGIC_LO1
DACBCK2/LOGIC_LO2
DACPCMF/DSDFL
DMIXDAC_DATA
DACBCK1/LOGIC_LO1
DACMCK2/SCK2
DMIXDAC_MCLK
DACPCMF/DSDFL
DACPCMCSW1/DSDC
DACMCK2/SCK2
DA3.3V
DACMCK1/SCK1
DACPCMCSW1/DSDC
DACLRCK5/DSDSBR
DACMCK1/SCK1
DACLRCK6/DSDH1R
DACPCMH3/DSDH3L
DACLRCK5/DSDSBR
DACPCMH2/DSDH2L
DACLRCK6/DSDH1R
DACLRCK8/DSDH3R
DGND
DGND
DGND
DGND
DGND
DGND
DGND
DGND
DGND
DGND
DGND
DGND
DGND
DGND
DGND
DGND
DGND
DGND
DGND
DGND
DGND
DGND
DGND
DGND
DGND
DGND
DGND
DGND
DGND
DGND
DLHDDLHD
to DIGITAL to mainDAC
DGND
N902
TO N6014
N901
TO N9030
_N903
TO N910
N904
TO _N101
_N904
TO __N101
__N903
TO _N910
