NAMES AND FUNCTION
q DIGITAL AUDIO IN terminals
(Optical and Coaxial)
Connect these terminals to the digital signal output
terminal(s) of the digital component (such as DVD
player, CD player or DSS system).
w
DIGITAL AUDIO REC / ZONE B OUT
terminal (Optical)
Connect this terminal to the digital signal input
terminal(s) of the digital recording component (such
as a CD recorder) or another AV amplifi er. (Page 21)
e HDMI IN terminals
Connect these terminals to a Blu-ray disc player
or DVD player equipped with an HDMI output
terminal(s). (Page 14)
r HDMI OUT terminals
Connect these terminals to a TV set or projector
equipped with an HDMI input terminal(s).
(Page 14)
t COMPONENT VIDEO IN terminals
Connect these terminals to a video component
equipped with component video output terminal(s).
(Page 13)
y
COMPONENT VIDEO OUT terminals
Connect these terminals to a monitor TV or projector
equipped with component video input terminal(s).
(Page 13)
u VIDEO IN / OUT terminals
Connect these terminals to the video terminal(s) of
a video component. (Page 13)
i VIDEO MONITOR OUT terminal
Connect this terminal to the video input terminal(s)
of a monitor TV or projector. (Page 13)
o RS-232C terminal
The RS-232C port is to be used in conjunction with
an external controller to control the operation of the
unit by using an external device.
!0 AC IN
Plug the supplied power cable into this AC INLET
and then into the power outlet on the wall.
!1 AC OUTLETS
Connect the AC power cables of components such
as a DVD and CD player to these outlets. SWITCHED
and UNSWITCHED outlets are provided.
The one marked SWITCHED provides power only
when the unit is turned on and is useful for components
which you use every time you play your system.
The one marked UNSWITCHED is always live as
long as the unit is plugged into a live outlet.
A component connected here may be left on
permanently, or may be switched off with via its
own power switch.
Note
When ZONE A or ZONE B is on, power will also
be supplied to the AC outlets on the SWITCHED
side in the same manner as the UNSWITCHED
side, regardless of whether the unit is turned on or
in standby mode.
Caution
• In order to avoid potential turn-off thumps,
anything plugged into this outlet should be
powered up before this unit is turned on.
• The capacity of this AC outlet is 150W. Do not
connect devices that consume electricity more
than the capacity of this outlet. If the total power
consumption of the connected devices exceeds
the capacity, the protection circuit shuts down the
power supply.
!2 Speaker outputs terminals
Connect the speakers to these terminals. (Page 11)
!3 ANALOG AUDIO IN/OUT terminals
Connect these terminals to the audio terminal(s) of
an audio or video component. (Page 13)
!4 ZONE A OUT terminals
These are the audio output jacks for the ZONE A.
Connect these jacks to optional audio power
amplifi ers to listen the source selected by the ZONE
system in a remote room. (Page 21)
!5 7.1 CH INPUT terminals
By connecting a DVD Audio player, Super Audio CD
multichannel player, or other components that has a
multichannel port, you can playback the audio with
5.1 channel or 7.1 channel outputs. (Page 20)
!6 REMOTE CONT. IN/OUT terminals
Connect to a Marantz component equipped with
remote control (RC-5) terminals. (Page 22)

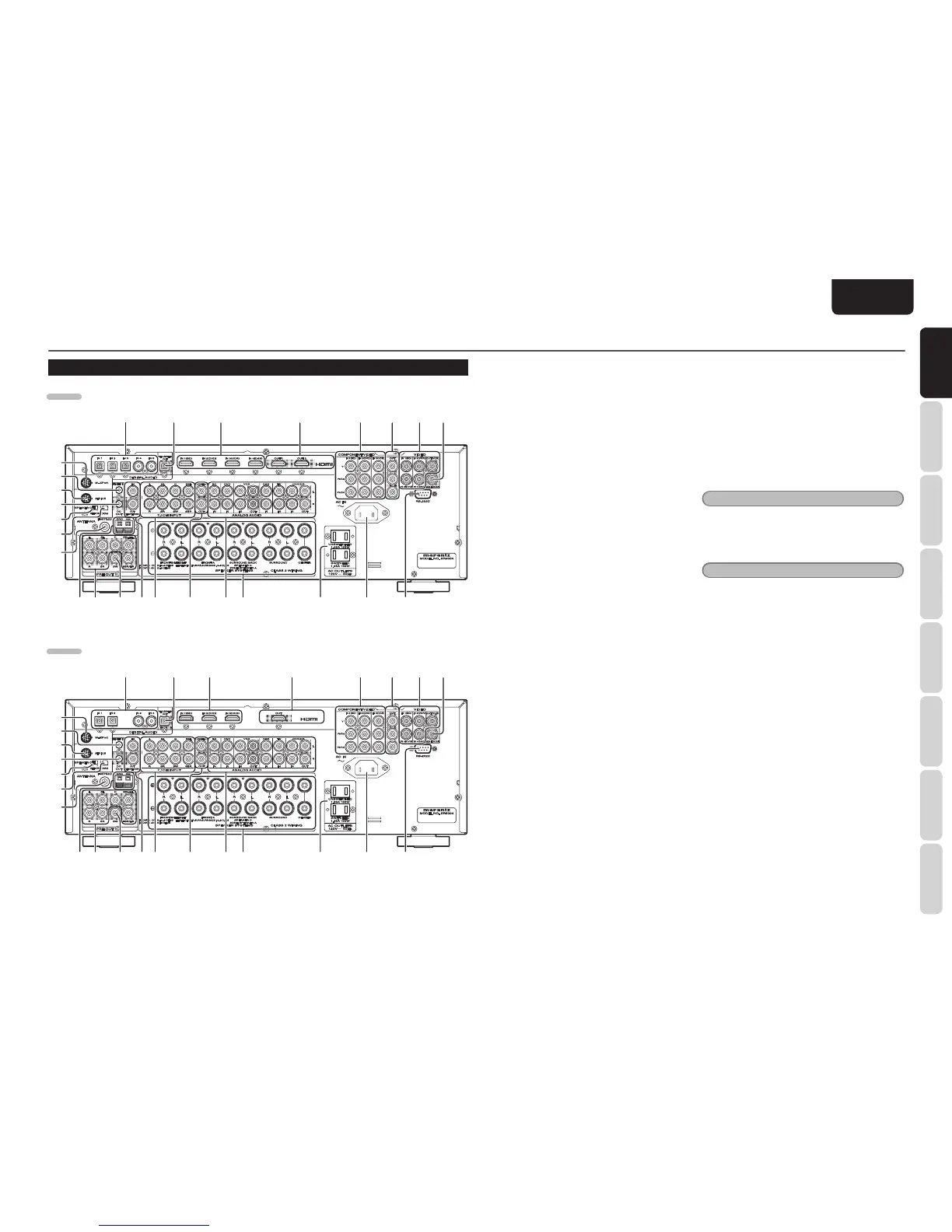

REAR PANEL
SR6004
q w e r t y u i
o!0!2!6!7!8!9 !1!3!4!5
@0
@1
@3
@4
@5
@2
@6
SR5004
q w e r t y u i
o!0!2!6!9
@0
!1
@1
@3
@4
@5
@2
@6
!3!4!5!8 !7
