NAMES AND
FUNCTIONS
12
BASIC
CONNECTIONS
BASIC
OPERATION
ADVANCED
CONNECTIONS
SETUP
ADVANCED
OPERATION
TROUBLESHOOTING
OTHERS
BASIC
CONNECTIONS
ENGLISH
BASIC CONNECTIONS

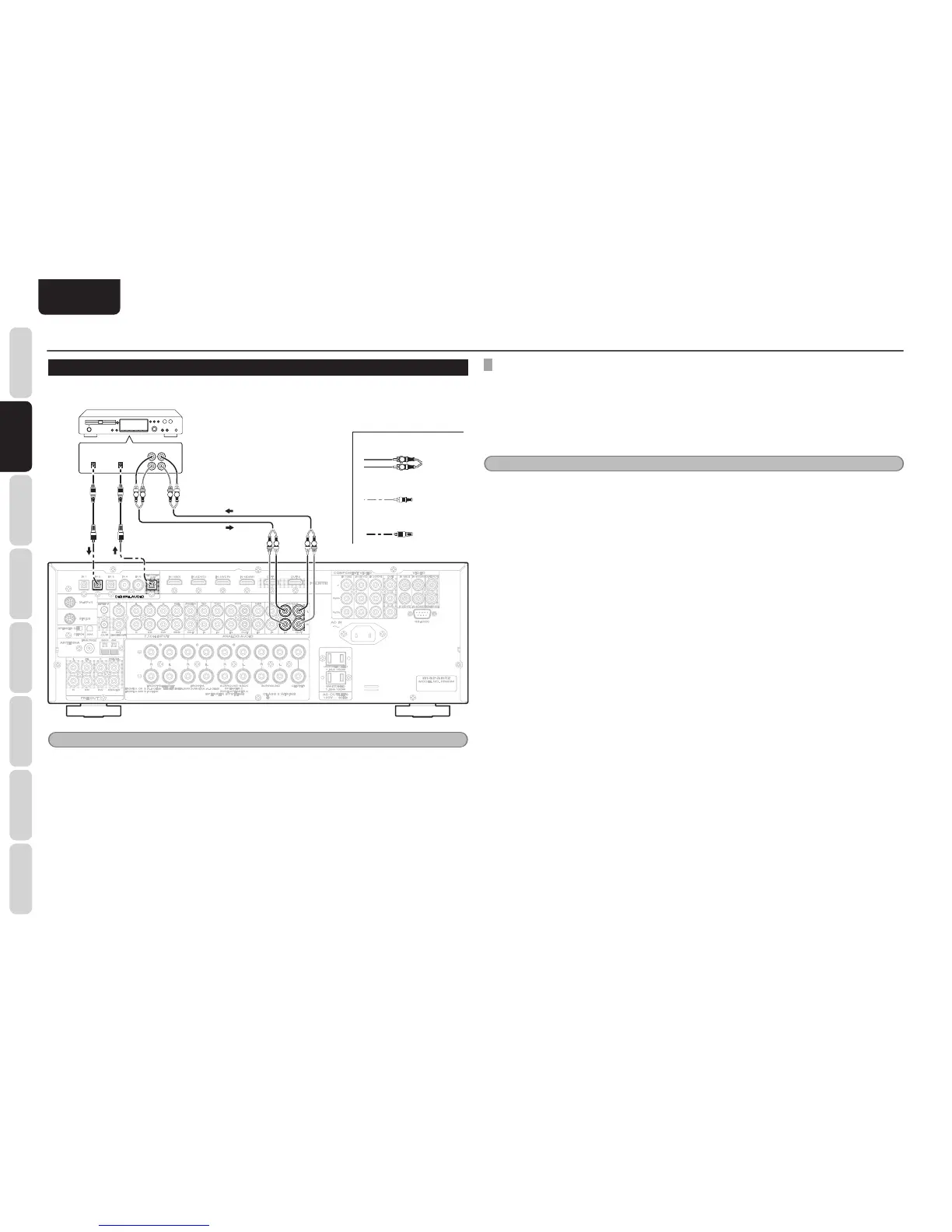

CONNECTING AUDIO COMPONENTS
The output audio signal from the CD/CDR OUT jack is the same signal which is currently selected.
ANALOG AUDIO
ANALOG AUDIO
CD/CDR
CD/CDR
IN
IN
OUT
OUT
L
L
R
R
REC/ZONE B
REC/ZONE B
OUT
OUT
IN 2
IN 2
OUT IN
L
R
L
R
DIGITAL
INPUT
DIGITAL
OUTPUT
R LRL
R L RL
L R
CD recorder
Analog Audio
Digital Audio (coaxial)
Digital Audio (optical)
Notes
Do not connect this unit and other components to mains power until all connections between components have
been completed.
Insert all plugs and connectors securely. Incomplete connections may make noise.
Be sure to connect the left and right channels properly.
Red connectors are for the R (right) channel, and white connectors are for the L (left) channel.
Be sure to connect input and output properly.
Refer to the instructions for each component that is connected to this unit.
Do not bind audio/video connection cables with power cables and speaker cables this will result in generating
a hum or other noise.
CONNECTING DIGITAL AUDIO COMPONENTS
Refer to the instructions for each component. To setup the digital audio format of CD player, or other digital
source’s connected to digital input jacks.
• Use ber optical cables (optical) for optical input jacks and REC/ZONE B optical output jack. Use 75 ohms
coaxial cables (for digital audio or video) for coaxial input jacks.
You can designate the input for each digital input/output jacks according to your component. (See page
25)
Notes
The digital signal jacks on this unit conform to the EIA standard. If you use a cable that does not conform to
this standard, this unit may not function properly.
• Each type of audio jack works independently. Signals input through the digital and analog jacks are output
through the corresponding digital and analog jacks, respectively.
