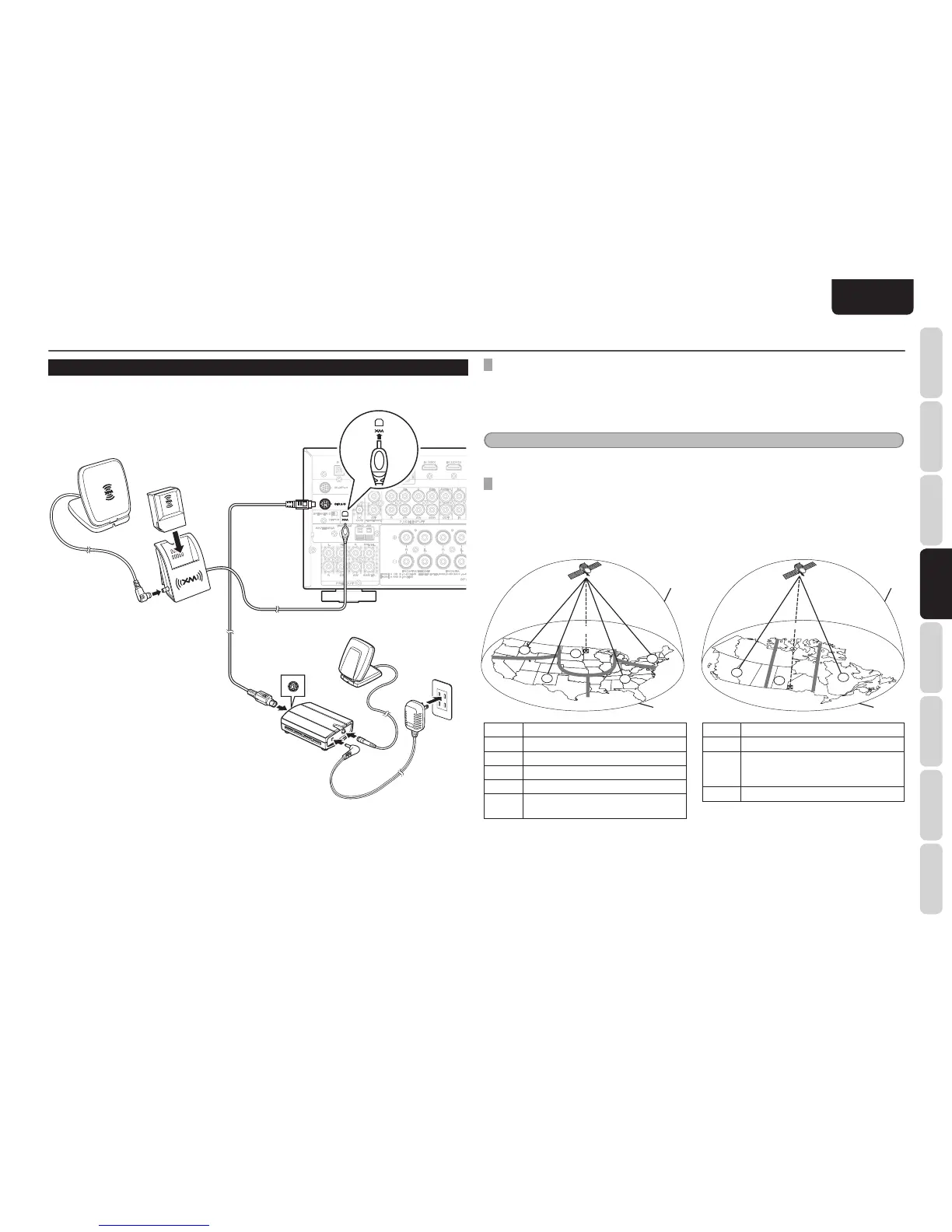

CONNECTING THE SATELLITE RADIO
Subscriptions are required in order to listen to both XM Satellite Radio and SIRIUS Satellite Radio. For details
on XM Satellite Radio, see page 47. For details on SIRIUS Satellite Radio, see page 51.
AC
adapter
SiriusConnect
TM
Home Tuner
Antenna
XM SATELLITE RADIO
Plug the XM Mini-Tuner and Home Dock into XM terminal on the rear panel.
Position the XM antenna near a south-facing window to receive the best signal.
When making connections, also refer to the operating instructions of the XM Mini-Tuner and Home
Dock.
Note
This unit does not support the XM CNP-1000. See page 82.
SIRIUS SATELLITE RADIO
• Plug the SiriusConnect
TM
Home Tuner, Antenna and AC adapter into SIRIUS terminal on the rear panel.
Position the SIRIUS antenna for a consistent satellite signal, the antenna must be positioned correctly. Use
the following map to determine which area you are in and position the antenna accordingly.
(US) (Canada)
1
2
3
5
4
SOUTH
NORTH
WEST
EAST
SKY
HORIZON
3
2
1
SOUTH
WEST
EAST
SKY
HORIZON
NORTH
AREA ANTENNA AIMING DIRECTION
AREA 1
Aim the antenna EAST or NORTHEAST
AREA 2
Aim the antenna NORTH or NORTHEAST
AREA 3
Aim the antenna NORTH or NORTHWEST
AREA 4
Aim the antenna WEST or NORTHWEST
AREA 5
Aim the antenna STRAIGHT UP at the
sky (may require outdoor placement)
AREA ANTENNA AIMING DIRECTION
AREA 1
Aim the antenna EAST or SOUTHEAST
AREA 2 Aim the antenna SOUTH or STRAIGHT
UP at the sky (may require outdoor
placement)
AREA 3
Aim the antenna WEST or SOUTHWEST
