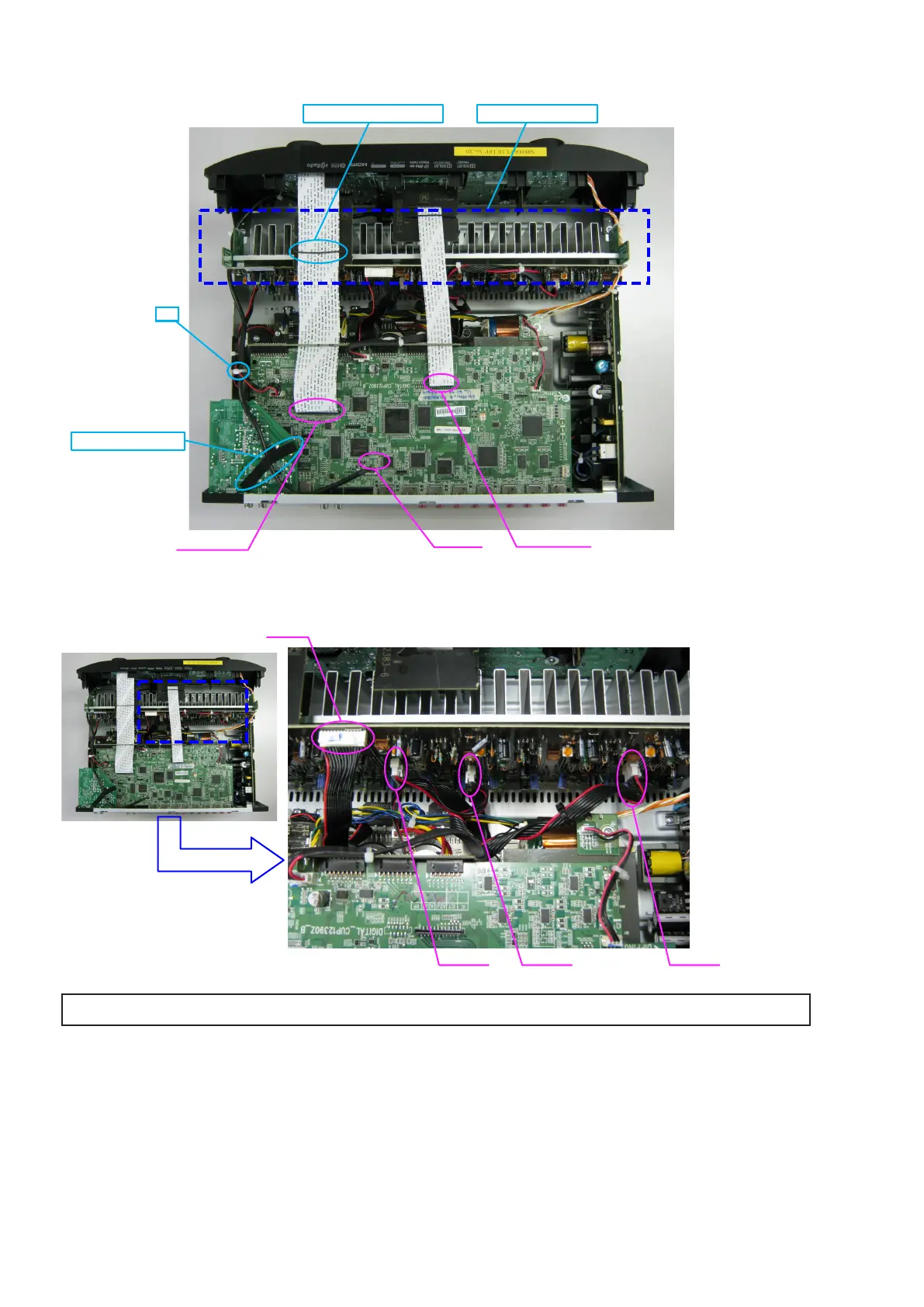

(3) Cut the wire clamp band, then disconnect the connector wire and FFC cables .

(4) Disconnect the connector wires.

CN390

FFC cable

STYLE PIN : Loosen HEAT SINK Assy

TAPE : Remove

cut

CN461

CN702

CN703CN701

Please refer to "EXPLODED VIEW" for the disassembly method of each P.W.B included in HEAT SINK ASSY.
