61
JIG FOR SERVICING
When you repair the printing board, you can use the following JIG (Extension cable kit).
Please order it from Marantz Ofcial Service. Distributor in your region if necessary.
NOTE: The incorrect connection with in the JIG (EXTENSION UNIT KIT) may cause damage.
8U-110084S : EXTENSION UNIT KIT : 1 Set
• Connection of PCB HDMI JIG
-Preparation-
8U-110084S : EXTENSION UNIT KIT : 1 Set
Insulation sheet (Do not supply it) : 3 sheets
Ground lead (Do not supply it) : 3 pcs
-Procedures-

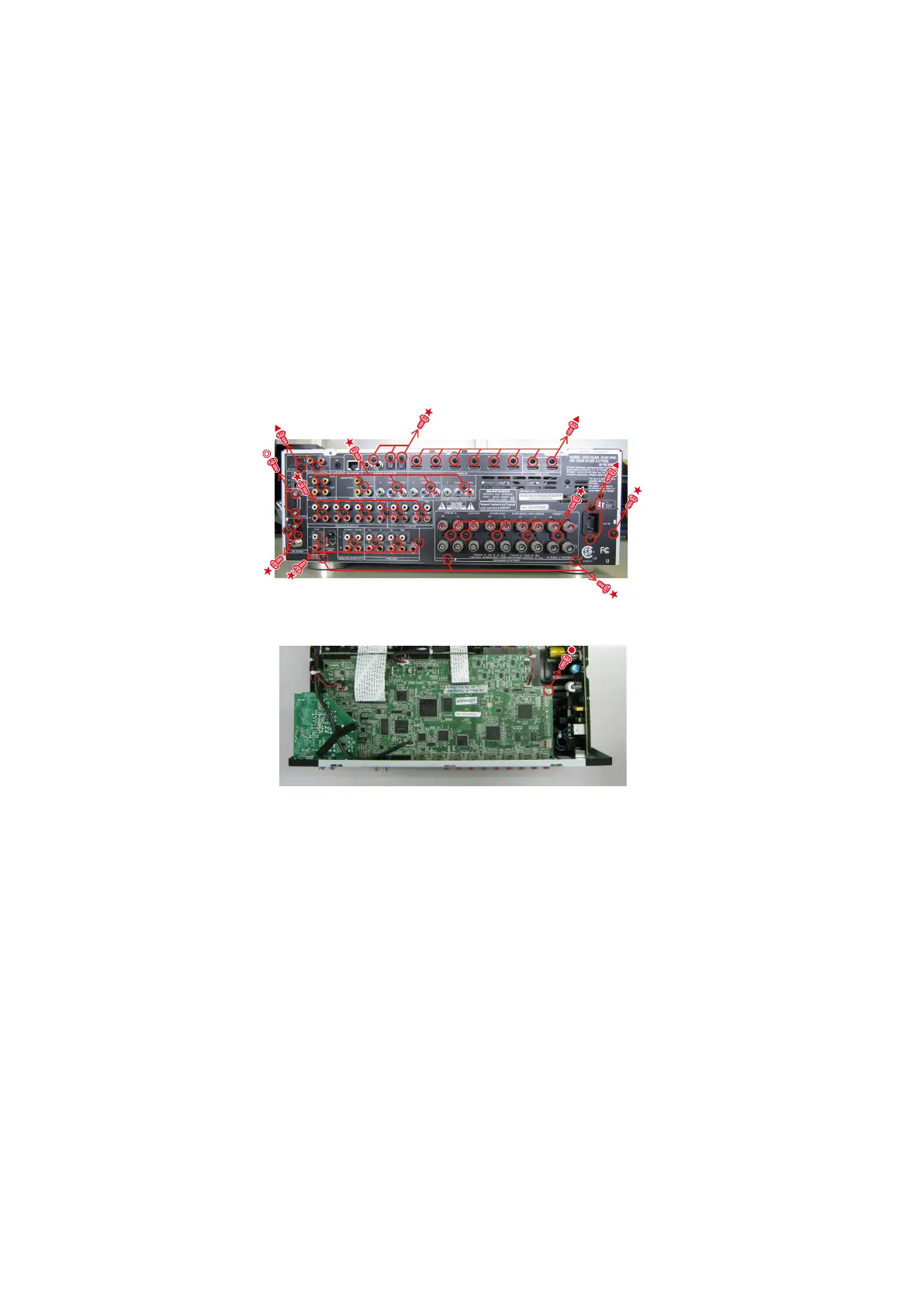

(1) Remove the screws.
To Next Page
