Marantz SR6006/U1B - Trans.main

16

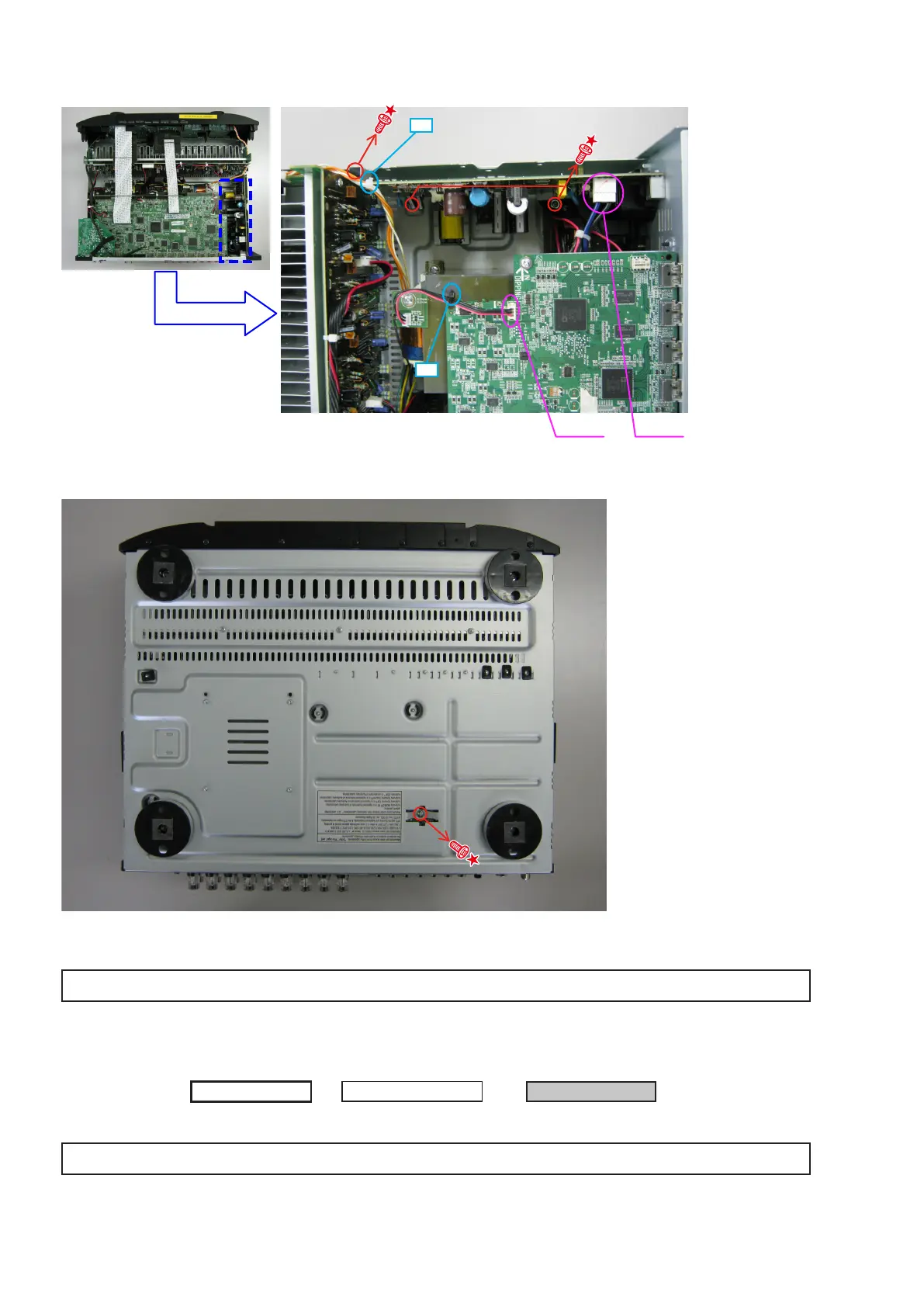

(7) Cut the wire clamp bands, then disconnect the connector wires, and remove the screws.
(8) Remove the screw.
4. TRANS MAIN
CN203 CN902
cut
cut
Please refer to "EXPLODED VIEW" for the disassembly method of each P.W.B included in HDMI UNIT ASSY.
CABINET TOP
HDMI UNIT ASSY
→
POWER TRANS
→
Proceeding :
Please refer to "EXPLODED VIEW" for the disassembly method of TRANS MAIN.
