Marantz UD5005 - Page 13

10
ENGLISH
"6%*0
$0"9*"-
*/
7*%&0
7*%&0*/
:
1
#
13
$0.10/&/5
7*%&0*/
RR
LL
AV receiver
When playing back Dolby Digital Plus/Dolby TrueHD/DTS-HD audio recorded on a BD disc, this unit outputs
Dolby Digital or DTS bitstream from its digital audio output terminal.
NOTE
tDolby TrueHD/Dolby Digital Plus/DTS-HD audio signals are not output with this connection.
When outputting Dolby TrueHD/Dolby Digital Plus/DTS-HD audio signals, do so with an HDMI connection
(vpage4).
tSuper Audio CD’s DSD signal cannot be output. Also, during CD layer playback, 44.1 kHz/16-bit Linear
PCM is output.
tDo not output DTS audio signals to an AV receiver that does not support DTS. Playing back a BD/DVD
disc with recorded DTS content can generate noise and even damage your speakers.

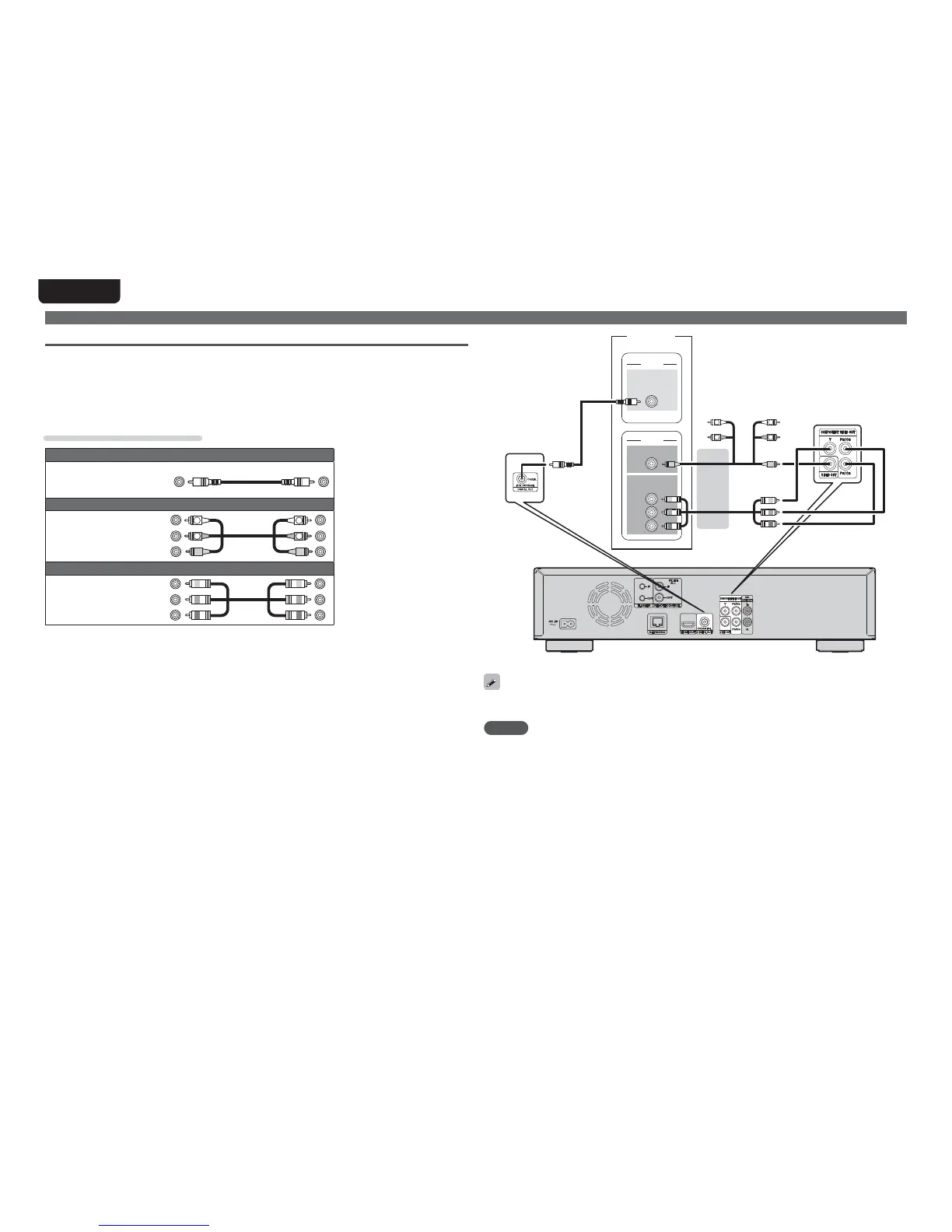

Connecting to an AV receiver with a digital audio input terminal
tThis connection is recommended when the specifications of an AV receiver connected to the unit are
as follows:
t/PUTVQQPSUJOH)%.*JOQVU
t4VQQPSUJOHEJHJUBMBVEJPDPBYJBMJOQVU
tThis connection enables faithfully playing a disc that supports 5.1-channel output.
tSelect the connector to use and connect the device.
Cables used for connections
Audio cable
Coaxial digital
cable
(Sold separately)
(Black)
Audio and Video cable
Audio and Video
cable
(Supplied)
R
L
R
L
(White)
(Red)
(Yellow)
Video cables
Component video
cable
(Sold separately)
(Green)
(Blue)
(Red)
Connecting an AV receiver
