meters). Refer to Section 3 – Specifications, for envi-

ronmentalrequirements.

DVR

front panel and uncovered rear dimensions are

shown in Figure 5-1.

DVR

rear panel with cover dimensions are shown in

Figure 5-2.

Cutout and drilling dimensions are shown in Figure

5-3.

Installation

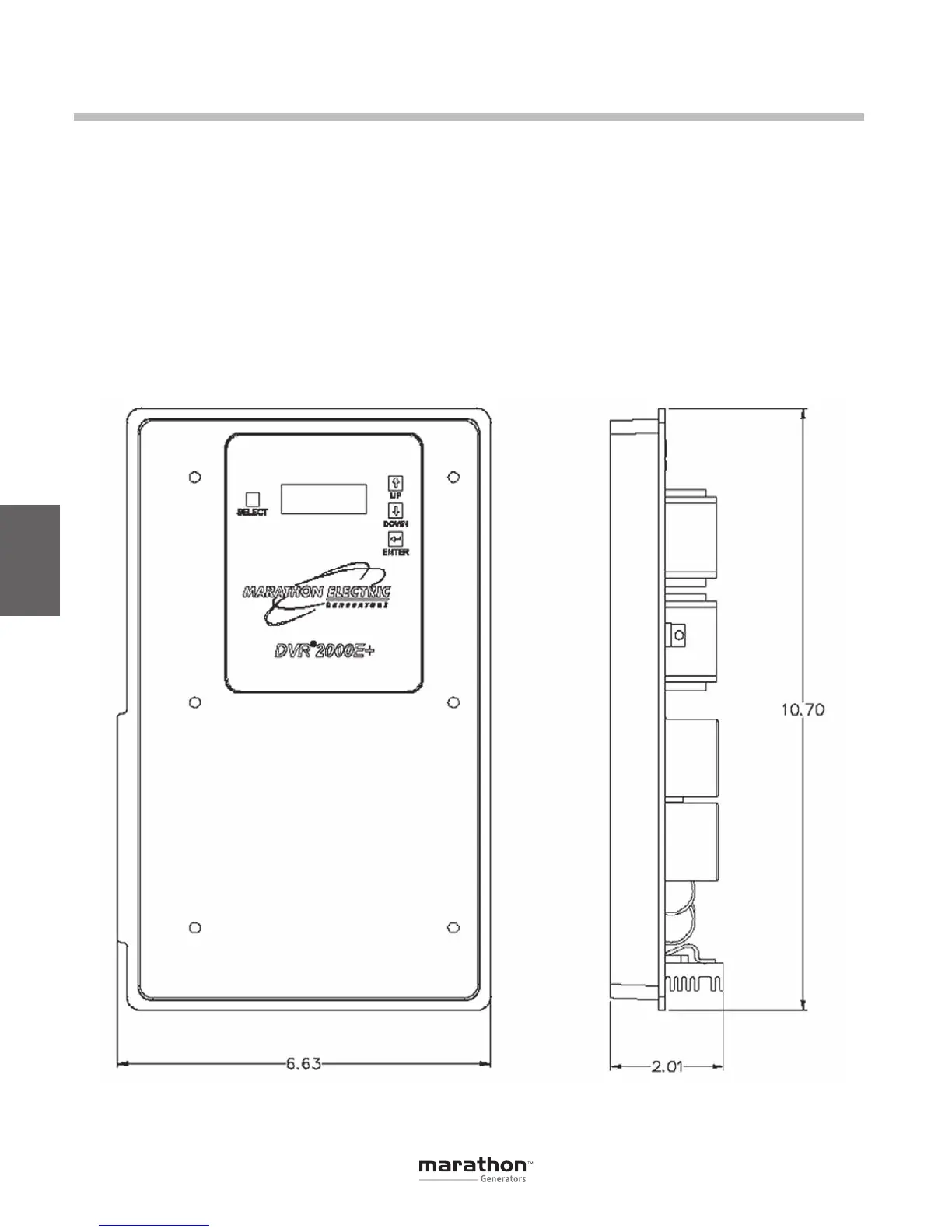

Figure 5-1. DVR

Front dimensions without cover. Valid for E+ & EC+ versions.
