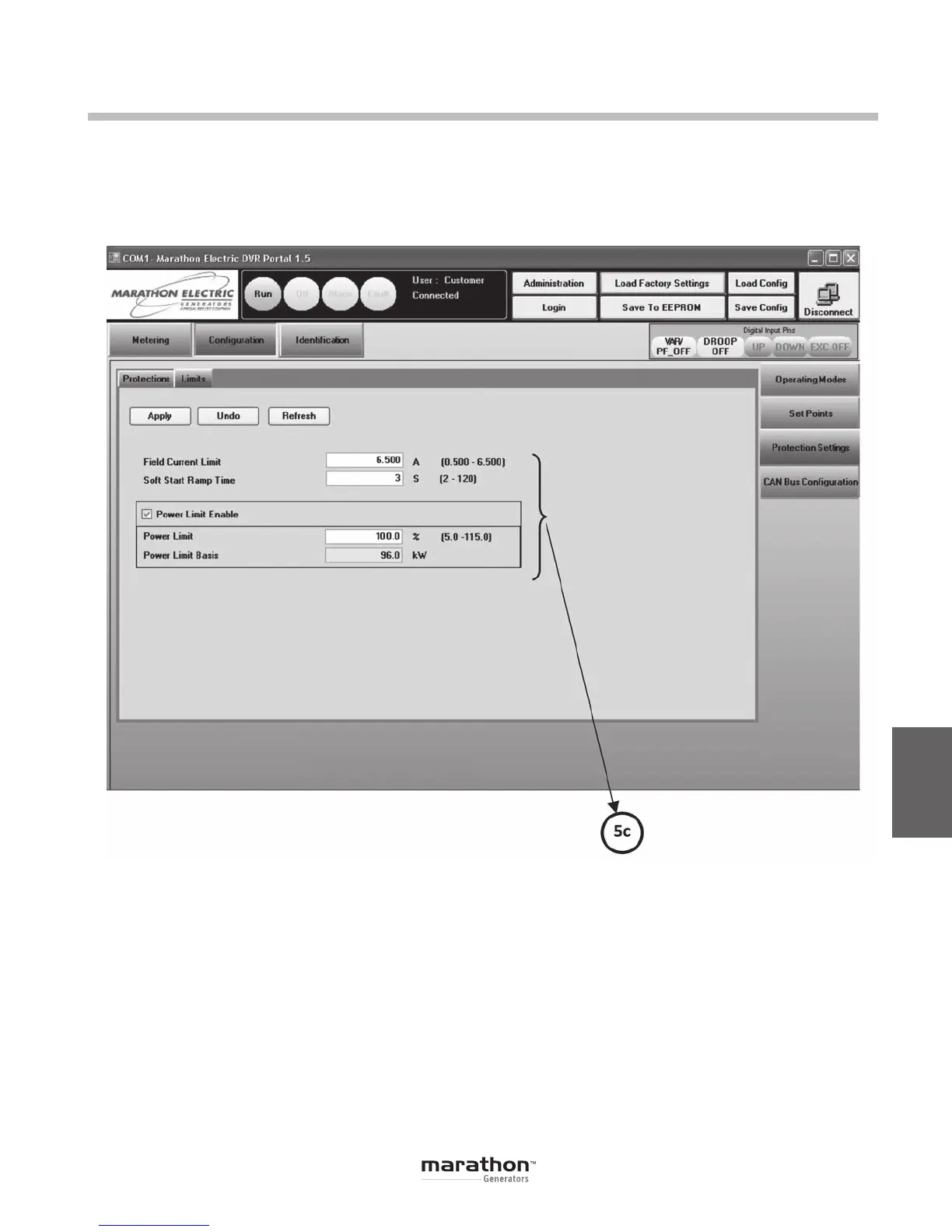

Limits (5c)
This panel contains editable limit thresholds for field
current and generator power as well as the soft start
time. For most applications, the default values of
these parameters should be used.
7
DVRPortal
™
Graphical User Interface (GUI)
• Field Current Limit is the maximum
allowable field current output of the regu-
lator. Refer to Section 4 – Features and
Protection for a detailed description of the
Field Current Limiting feature.
• Soft Start Ramp Time Is the amount of
time taken to ramp to the desired voltage
at the generator output terminals in AVR1
and AVR3 regulation modes. Refer to
Section 4 – Features and Protection for a
detailed description of the Generator Soft
Start function.
• Power Limit is the maximum allowable
power output of the generator. The check-
boxabovethePowerLimitpermitsenabling/
disabling of this limit. Enabling the limit also
enables the PID controller associated with
it on the Operating Modes panel. Refer to
Section 4 – Features and Protection for a
detailed description of the Power Limiting
feature.
