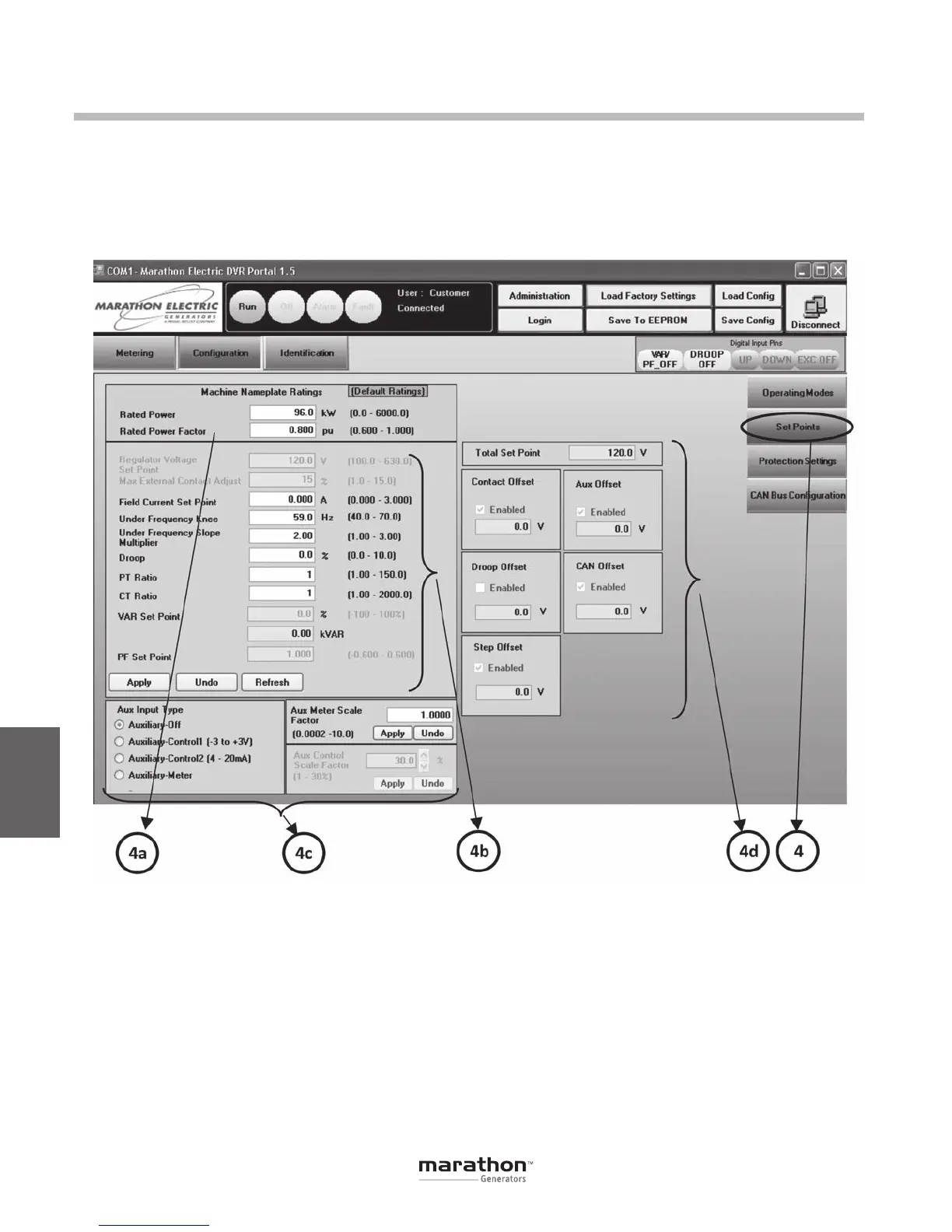

SET POINTS (4)
This panel contains editable fields for configuring the
DVR
®
anddisplaysadjustmentstoDVR
®
set points.
DVRPortal
™
Graphical User Interface (GUI)
Machine Nameplate Rating (4a)
This panel contains the fields for the rated power
and rated power factor of the machine the DVR
®
is regulating. If the rated power selected matches
the default rated power for a given frame size, an
indicator will specify this condition.
Note: These fields are critical for proper regulation in
droop compensation and, in the EC+, for VAR and PF
regulation modes.
Regulation Set Points (4b)
This panel contains the editable fields for selecting
the DVR
®
set point for the various regulation modes
andthefrequencycharacteristicsoftheDVR
®
.
• Regulator Voltage Set Point is editable in
AVR1 and AVR3 and, for the EC+, in VAR and
PF regulation modes. This value represents
the desired voltage at the regulator voltage
sensing terminals, regardless of PT ratio.
Offsets from the UP and DOWN contacts,
