Marathon Electric DVR 2000E+ - Protection Settings Sub Panel

47
PROTECTION SETTINGS (5)
This panel contains two sub panels for protection
settings and limit settings.
7
DVRPortal
™
Graphical User Interface (GUI)

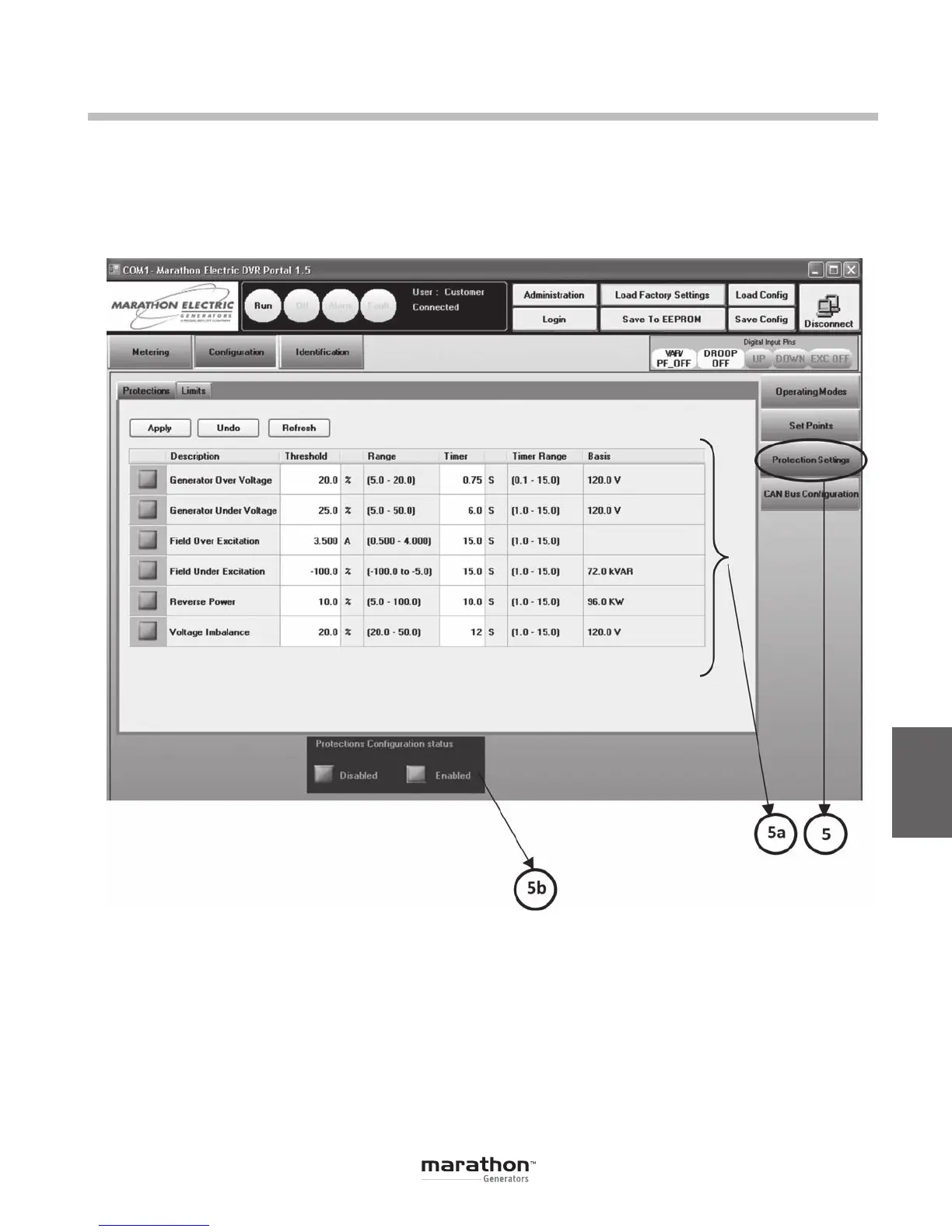

Protections (5a)
This panel contains editable threshold and timer
fields for configurable faults and alarms. For most
applications, the default values of these parameters
should be used. For protection settings that have a
thresholdasapercentage,the“Basis”columnindi-
cates the DVR
®
parameter used for the percentage
related to that protection feature.
• Generator Over Voltage Threshold is the
percentage of Regulator Voltage Set Point
that triggers the Generator Over Voltage
protection feature. Refer to Section 4
– Features and Protection for a detailed
description of the Generator Over Voltage
Shutdown feature.
