MAREX 375
47
by Nikl Design USER MANUAL
5.3 FUSE PANEL & CONNECTION SCHEMES
Fuse panel is placed at starboard side at the helm position/driver’s seat.

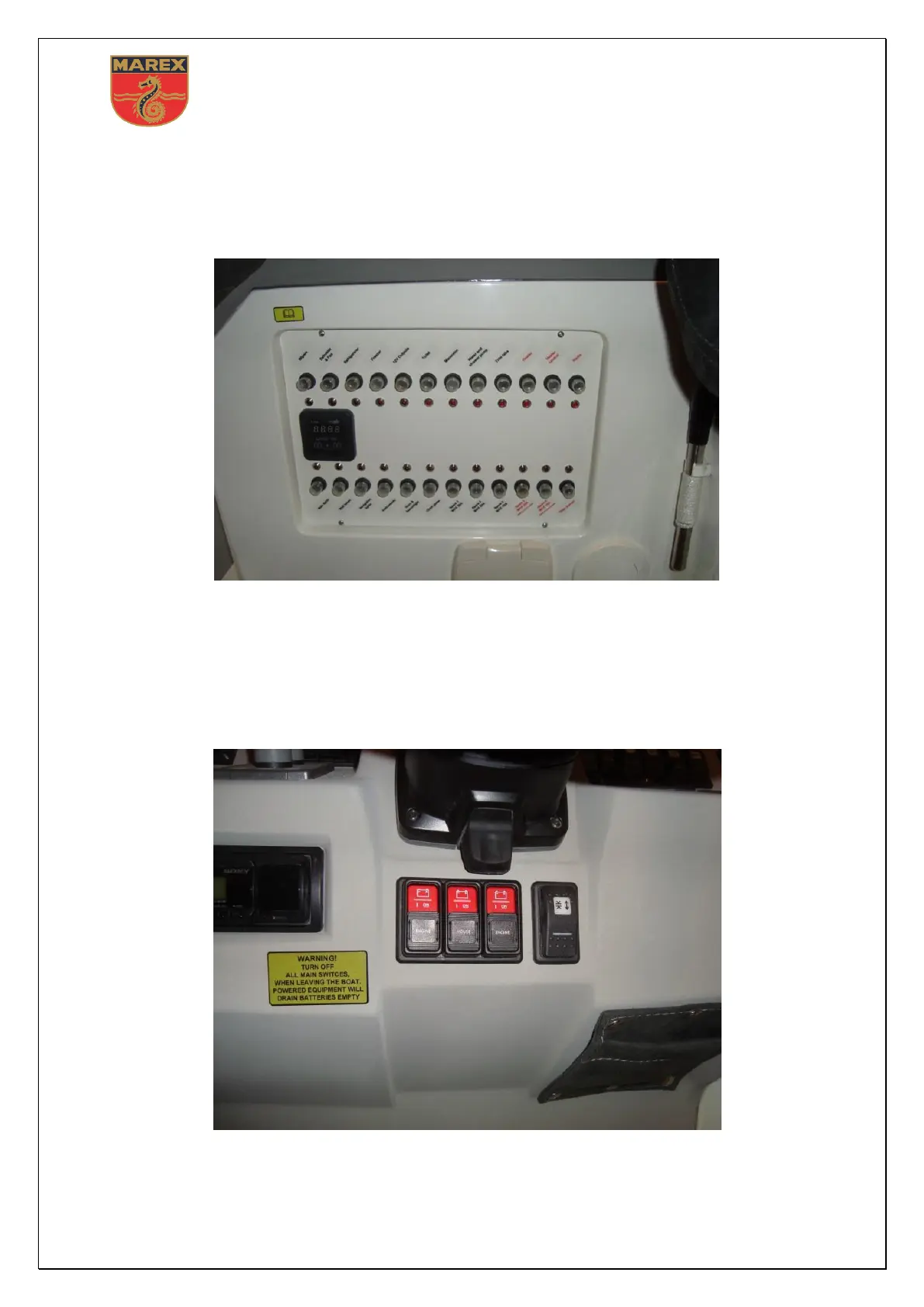

Picture 38: The fuse panel
Drawings are enclosed in divider number 4.
5.4 MAIN SWITCH PANEL
Main switches are located at the helmsman position, under the steering wheel.
Picture 39: Main switch panel
