11.0 OVERVIEW

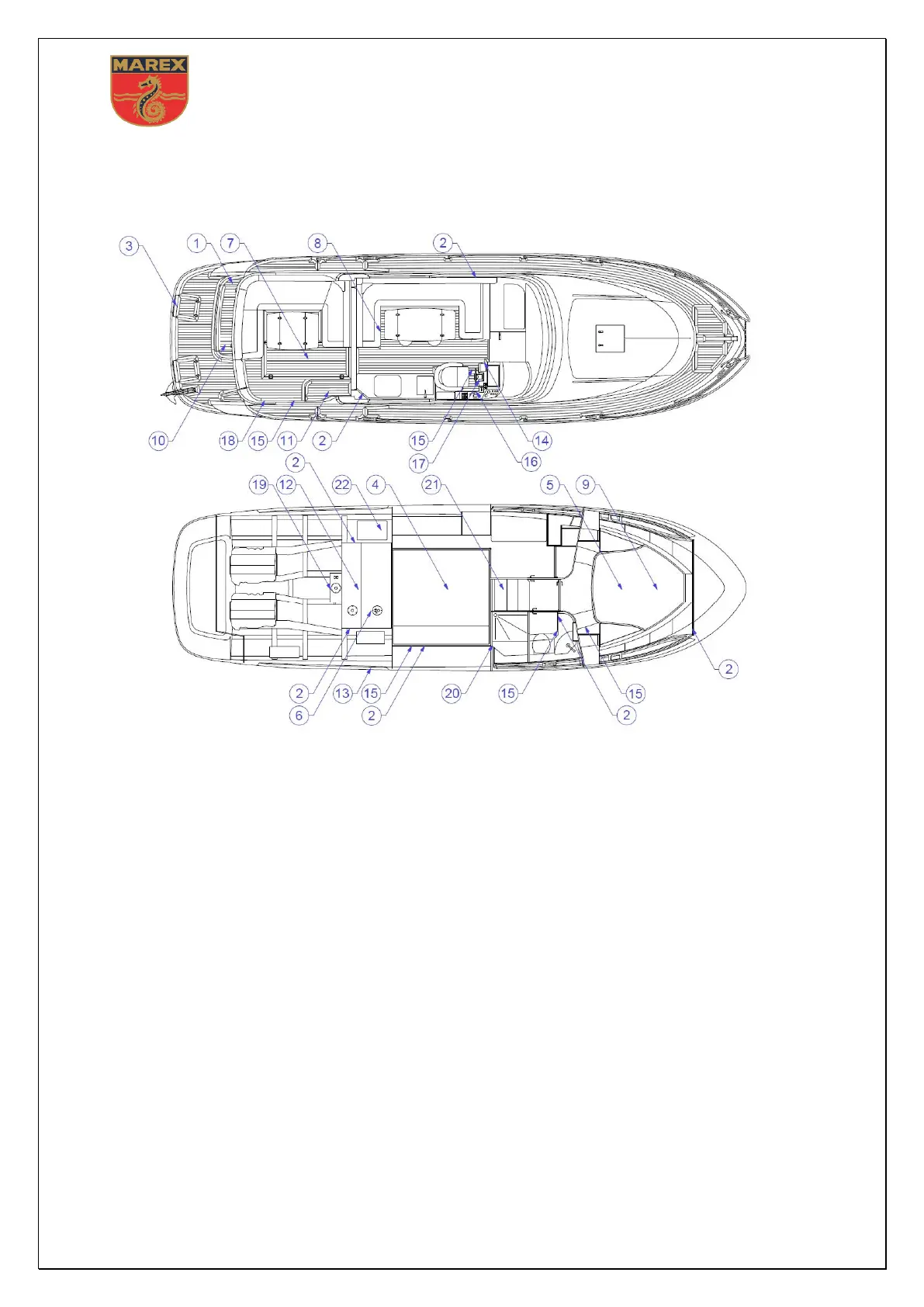

Figure 13: Overview
Tags in alphabetical order:
1. 230 V Shore connection plug
2. 230 V Sockets
3. Bathing ladder
4. Batteries (under amidships cabin bed)
5. Bow propeller (under the front bed)
6. Diesel fuel tank
7. Engine hatch (access to fuel, grey and septic tank)
8. Fire extinguisher
9. Fresh water tank (under the front bed)
10. Gas bottle
11. Gas closing valves
12. Grey water tank
13. Heater exhaust
14. Heater switch panel
15. Heating outlets
16. Main fuse panel
17. Main switch panel (under the steering wheel)
18. Manual lensing pump
19. Septic tank
20. Shower and bathroom fan switch
21. Toilet water inlet closing valve
22. Water heater
