MAREX 375
51
by Nikl Design USER MANUAL

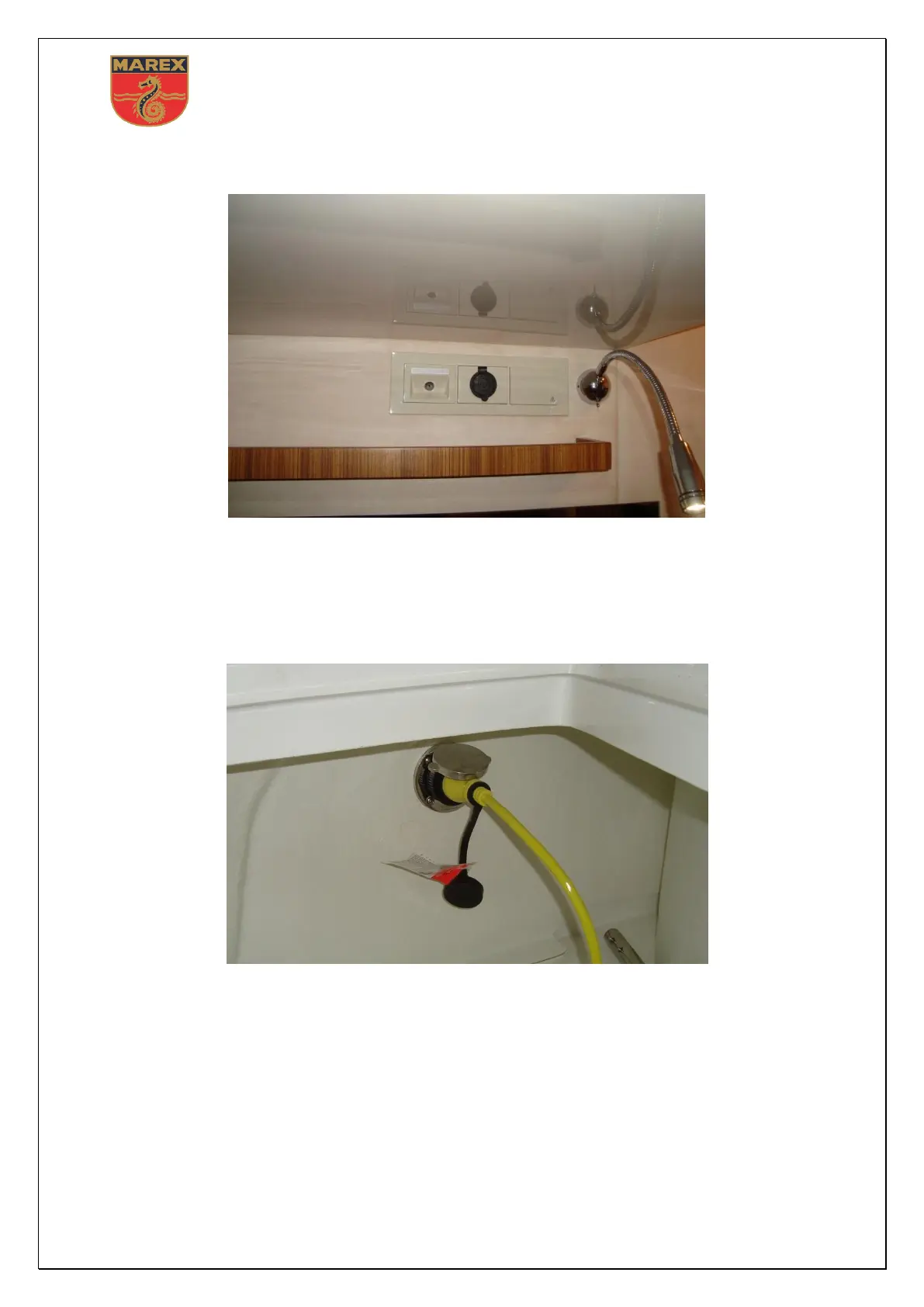

Picture 46: 230V socket in the mid-ships cabin.
Do not use power unnecessarily and be careful, when maintaining the system.
Do not forget to check if the connections and joints are properly fastened.
When 230 Volt shore connection is plugged in, the red LED light is on.
Picture 47: The shore connection.
Service batteries are first to be charged from the shore power. After they reach
nominal voltage, the dual sense relay will switch to charging of the starter batteries.
Engine alternators always charge the starter battery first. Only after they are full, then
the dual sense relay switches on to charge the service batteries.
Otherwise battery groups are separated at all times.
