FUEL INJECTOR INSTALLATION
NOTE: Apply anti-seize grease (obtain locally) or 2-4-C w/Teflon to fuel injector attaching
screw threads.
1. Insert fuel injector into fuel rail with connector pins facing (inwards) towards center of
engine.
NOTE: Turn injector back-and-forth slightly to seat injector O-rings in fuel rail while secur-
ing injector with retainer and 2 screws. Torque screws to 70 lb. in. (8.0 Nm).
56125
c
a
b

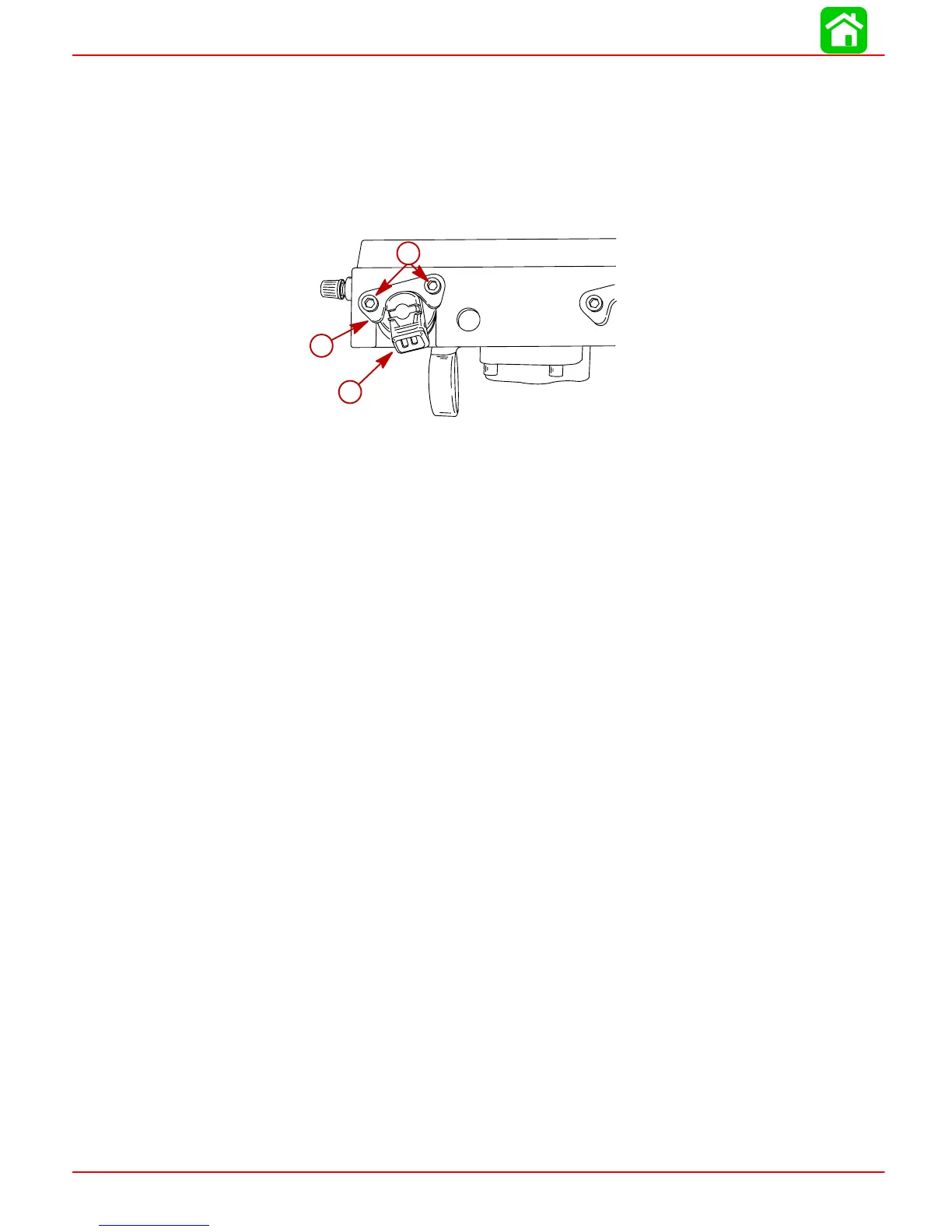

a-Injector
b-Retainer
c-Screws [Torque to 70 lb. in. (8.0 Nm)]
