CHARGING & STARTING SYSTEM
Page 2B-24 90-855347R1 JANUARY 1999

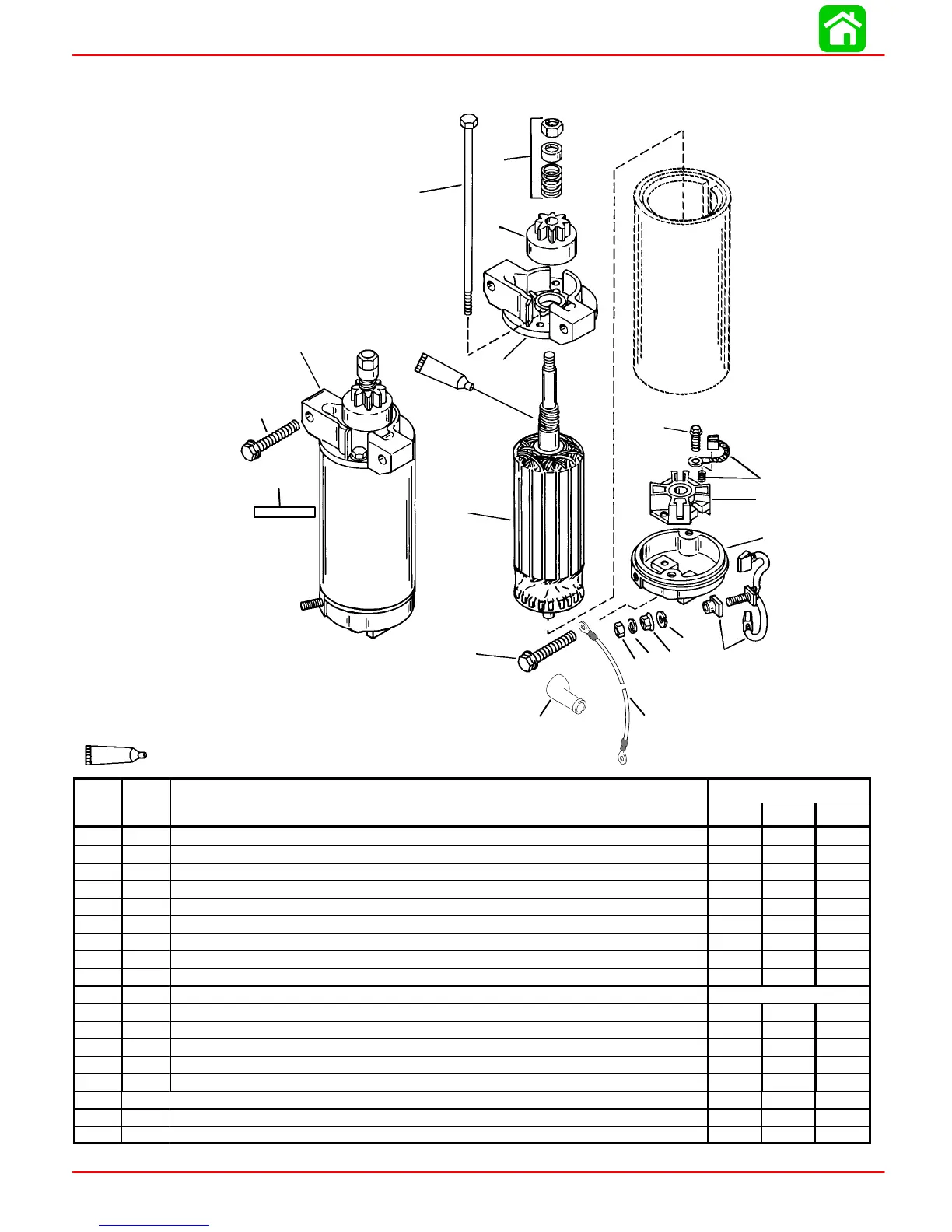

Starter Motor
1
2
3
4
5
6
7
8
9
10
13
14
11
12
15
7
15
17
14
16
18
14
2 Cycle Outboard Oil (92-826666A24)
REF.
TORQUE
REF
.
NO.
QTY. DESCRIPTION lb-in lb-ft Nm.
1 1 STARTER MOTOR
2 1 DRIVE CAP
3 2 THRU BOLT 70 8
4 1 DRIVE KIT
5 1 PINION
6 1 ARMATURE
7 1 BRUSH/SPRING KIT
8 1 BRUSH HOLDER
9 1 COMMUTATOR CAP
10 2 SCREW Drive Tight
11 1 LOCKWASHER
12 1 NUT (1/4-20) 35 4.0
13 1 LOCKWASHER
14 1 NUT (1/4-20) 35 4.0
15 3 SCREW (5/16-18 x 1-3/4) 210 17.5 24
16 1 BATTERY CABLE (NEGATIVE)
17 1 DECAL-Warning-High Voltage
18 1 BOOT
