LEFT HAND NON-RATCHETING
Page 6B-6 90-855347R1 JANUARY 1999

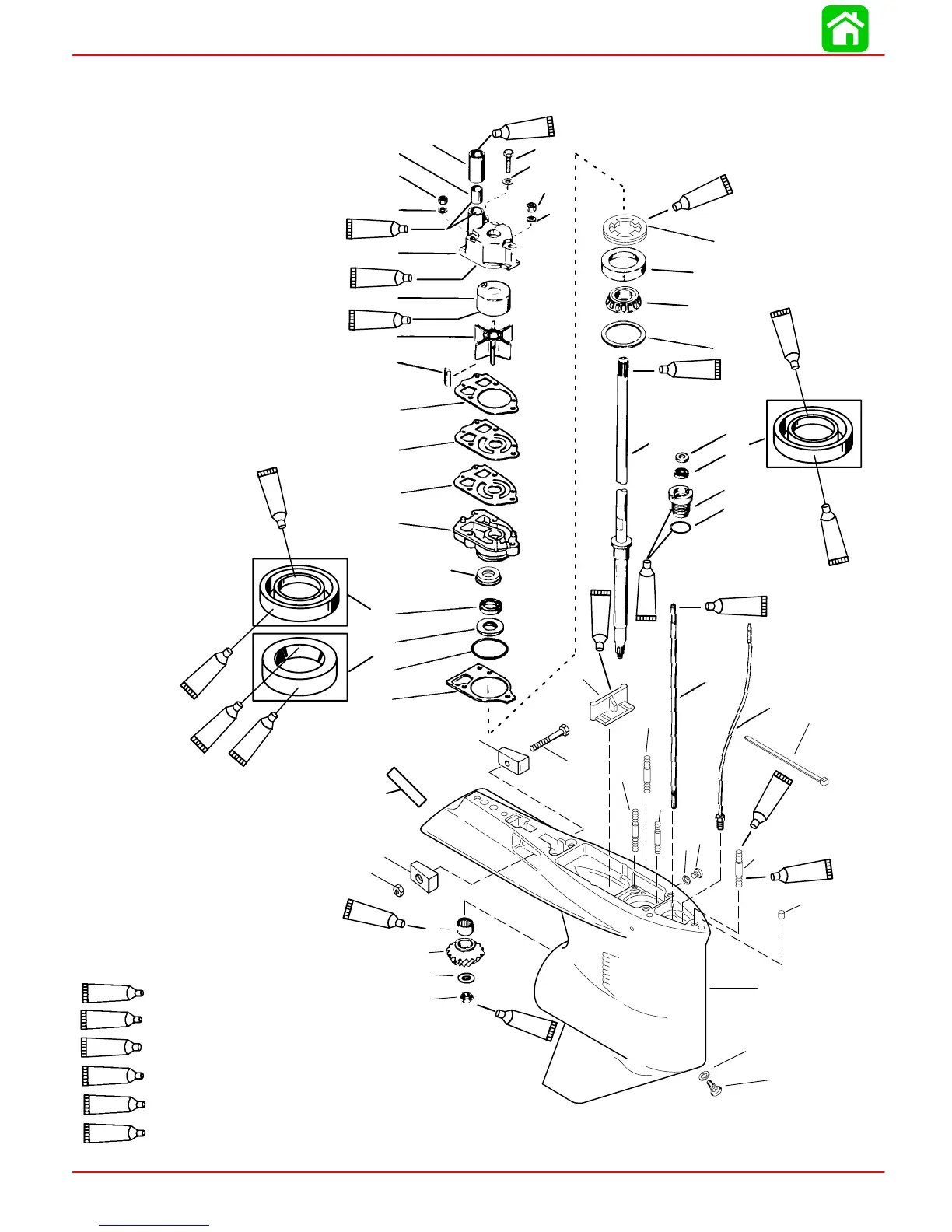

Gear Housing (Drive Shaft)(Counter Rotation)
23
95
95
7
95
95
95
98
33
7
95
95
7
95
19
95
109
95
Soap (Purchase Locally)
23
4.75 IN./120.65 MM
TORPEDO DIA.
7
Loctite 271 (92-809820)
Perfect Seal (92-34227-1)
19
Loctite 680 (92-809833)
33
95
2-4-C With Teflon (92-825407A12)
109
GM Silicone Sealer (92-91600-1)
