POWERHEAD
90-855347R1 JANUARY 1999 Page 4A-51

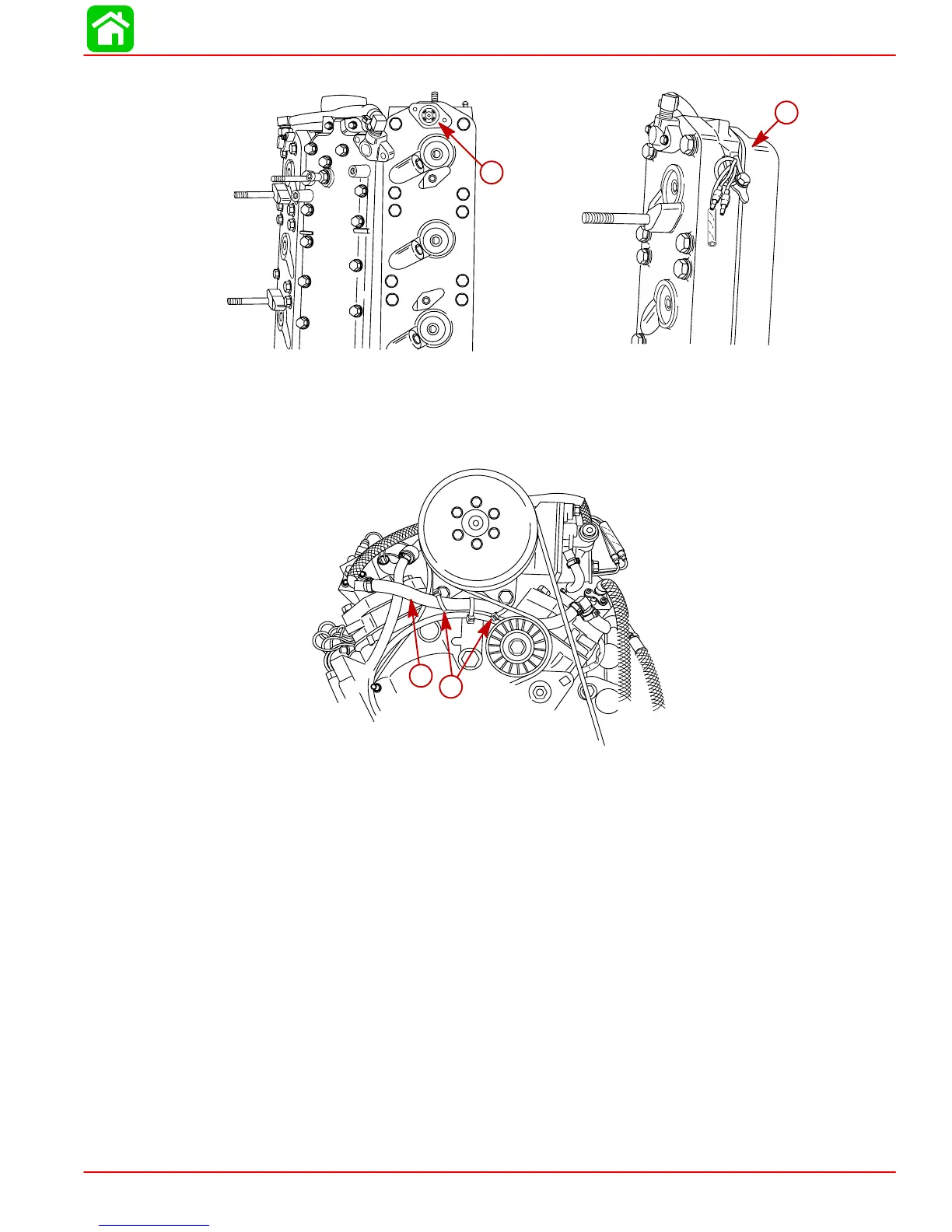

4. Thermostat and temperature sensor installed.
56163
56164
a
b
a-Thermostat (143° F 61.7° C)
b-Overheat Temperature Sensor
NOTE: When installing thermostat hoses, secure starboard to port thermostat hose (a)
with sta-straps (b) to prevent hose from being cut by alternator/air compressor belt.
a
b
Reinstalling Engine Components
Reinstall the following engine components:
Section 2
Starter Motor
Electronic Control Module
Ignition Coil
Starter Solenoid
Alternator
Flywheel
Section 3
Direct Fuel Injection
Fuel Pump
On-Board Oil Tank
Oil Pump
Section 7
Shift Cable Latch Assembly
Control Cable Anchor Bracket
To Next Page
