OUTBOARD MOTOR INSTALLATION
90-855347R1 JANUARY 1999 Page 1D-7
Warning Gauge Harness

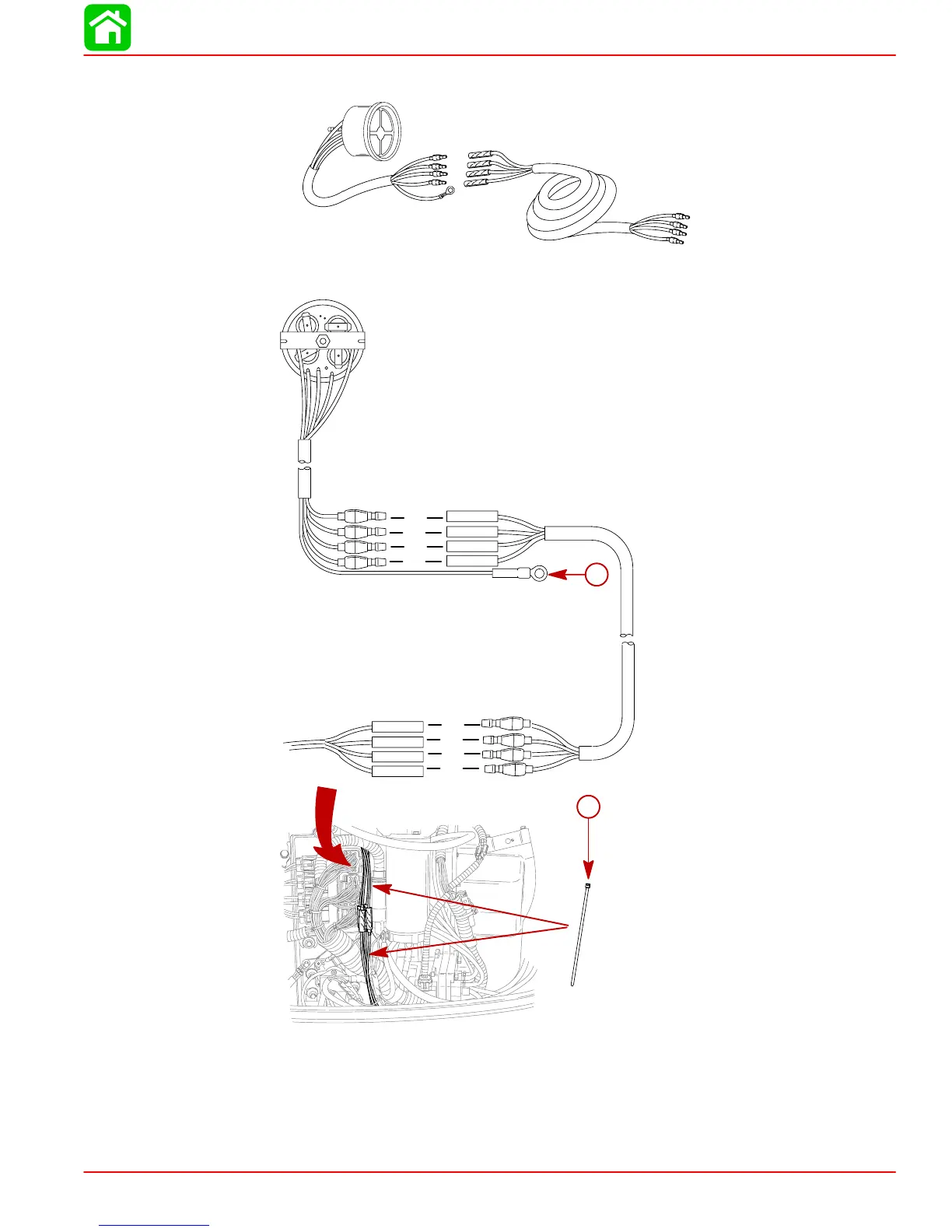

Connect the harness extension to gauge and engine.
1
2
3
4
5
6
a
c
b
d
f
e
a
c
b
d
a-TAN/BLACK
b-TAN/WHITE
c-PINK/LT. BLUE to PINK/LT. BLUE
d-ORANGE
e-Connect PURPLE to 12 Volt Source or Adjacent Gauge
f-Sta-Straps – Fasten Wiring to Prevent Catching on Cowl
