4. Rotate the lever counter-clockwise to engage the loose end of the wire, as shown in the figure
below. Continue rotating to produce force on the sample. The lever will reach its end of travel
before contacting the keypad / display housing.
5. When the test is complete, rotate the lever clockwise until the end of travel. The cams will open
and the wire will be released.
3.1.4 Installing the ring terminal fixture
To install or uninstall the standard terminal fixture or optional ring terminal fixture, loosen the screw in the
center of the fixture, remove, place the other fixture in the receptacle, and re-tighten the screw.
3.2 Installing the USB driver
If communicating via USB, install the USB driver provided on the Resource CD. Installation instructions
may also be found on the CD or may be downloaded from www.mark-10.com
.
Caution!
Install the USB driver before physically connecting the gauge to a PC with the USB cable.
Further instructions for configuring and using the gauge’s outputs are provided in the Communications
and Outputs section.

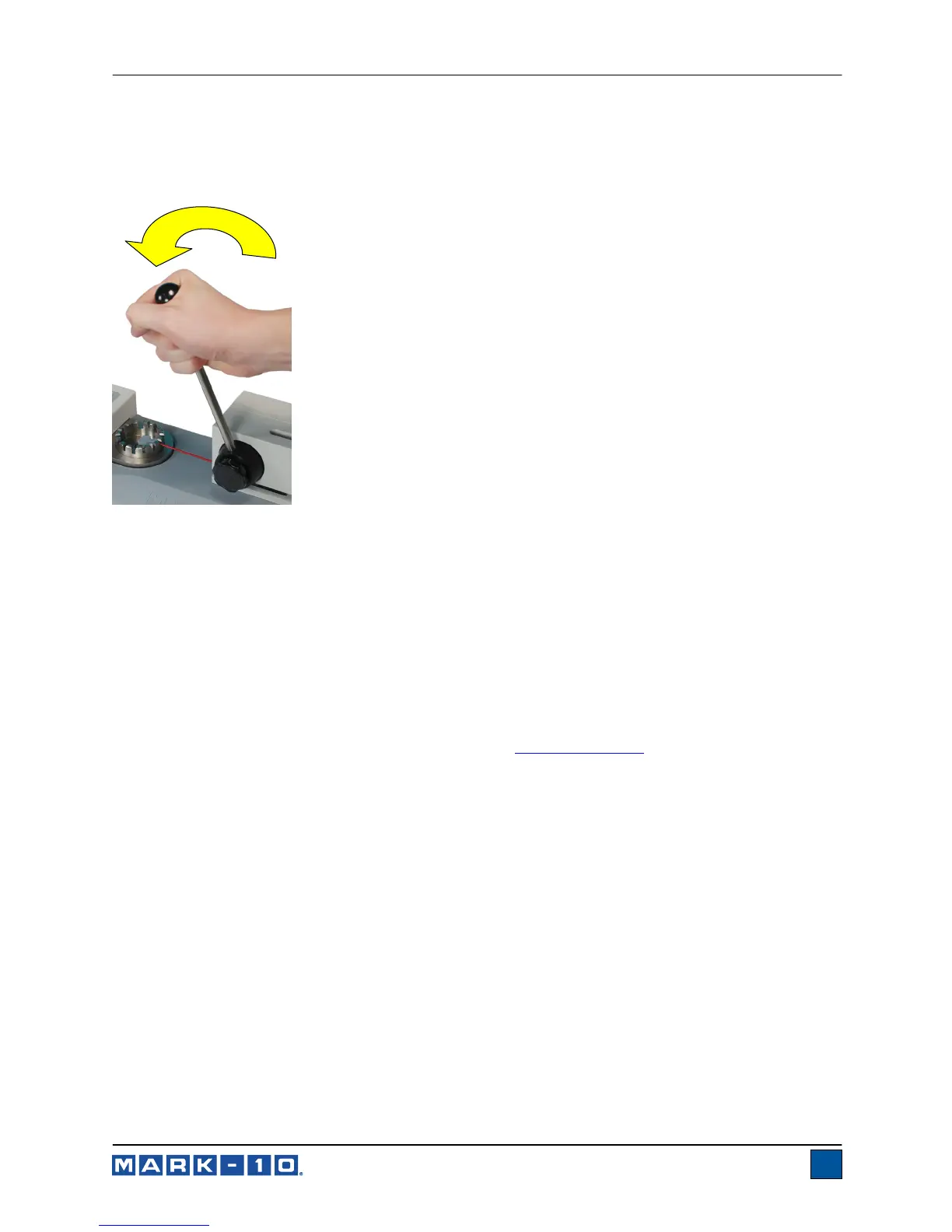

Fig. 3.4
Rotating the lever
