Using the Product as Intended
• The L88 feedback module is designed for connection to
the 60216/60226 (CS3) and the 60213/60214/60215 Central
Stations (CS2) with Software Version 3.8.xx and higher.
•
Connections from the 6088/60880/60881 and 60882 feedback
modules to the Central Station units mentioned above.
•
The L88 Link feedback module is a position indicator with 16
indicator contacts for Märklin H0 center conductor track or
for 2-rail track (1 Gauge, Trix H0, Minitrix) with reed contacts.
• Or connections to 64 button controllers.
Safety Notes
• The voltage supply for the L88 Link is done only by means
of the 66360/66367 or 66201 switched mode power pack.
• Connections to the L88 Link feedback module may only be
done with no voltage present.
• WARNING! Sharp edges and points required for operation.
• The housing must not be opened.
• The L88 Link feedback module is designed only for use in
dry areas.
Important Notes
• The operating instructions are a component part of the
product and must therefore be kept in a safe place as
well as included with the product, if the latter is given to
someone else.
• Please see your authorized Märklin dealer for repairs
• The warranty card included with this product species
the warranty conditions.
• Disposing: www.maerklin.com/en/imprint.html
1
2 3
4
5
6
7
8
T
T
9
10
11
12
13
14
15
16
Bus 1 Bus 2Bus 3
12V
5V
S88 Link

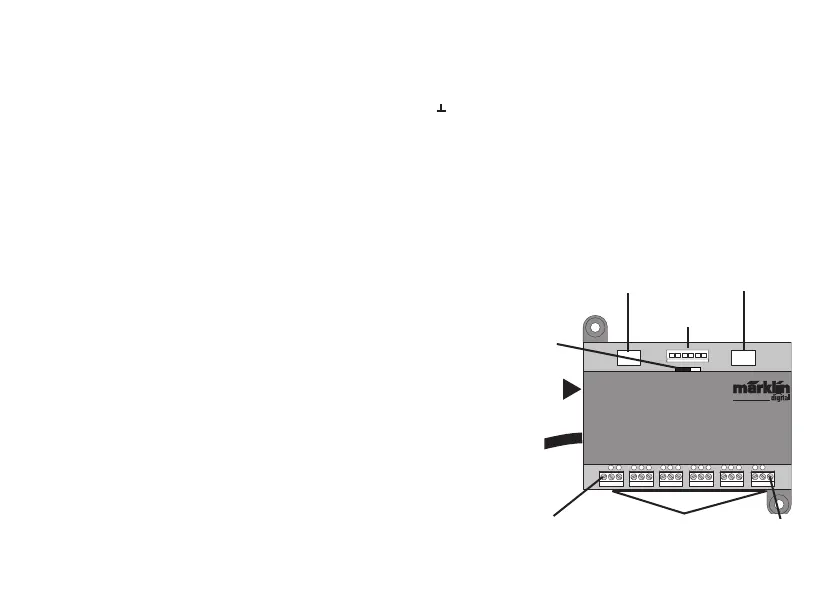

Inputs and Outputs for the Link 88
Current supply: 66360/66367 or 66201 switched mode power pack.
Connections to the Central Station / Terminal
Ground return (when used as a position indicator)
1-16 Contact connections (Märklin H0 center conductor
track or button controllers)
Bus 1 60881 or 60882
Bus 2 60881 or 60882
Bus 3 60880 and/or 6088
Switches for current supply to the S88 Module with 5 volts
or 12 volts.
Central Station /
Terminal
Current supply
66360 or 66201
US only: 66367
Ground Return
Track or Button
Controller
Ground
Return
Switches for current
supply
S88/S88AC/ S88DC
60880/6088
60881/60882
60881/60882
