Marklin Digital 60883 - Connect; Connections to the Central Station

15
1
2 3
4
5
6
7
8
T
T
9
10
11
12
13
14
15
16
Bus 1 Bus 2Bus 3
S88 Link
12V
5V
Central Station /
Terminal
Connect
Connections to the Central Station

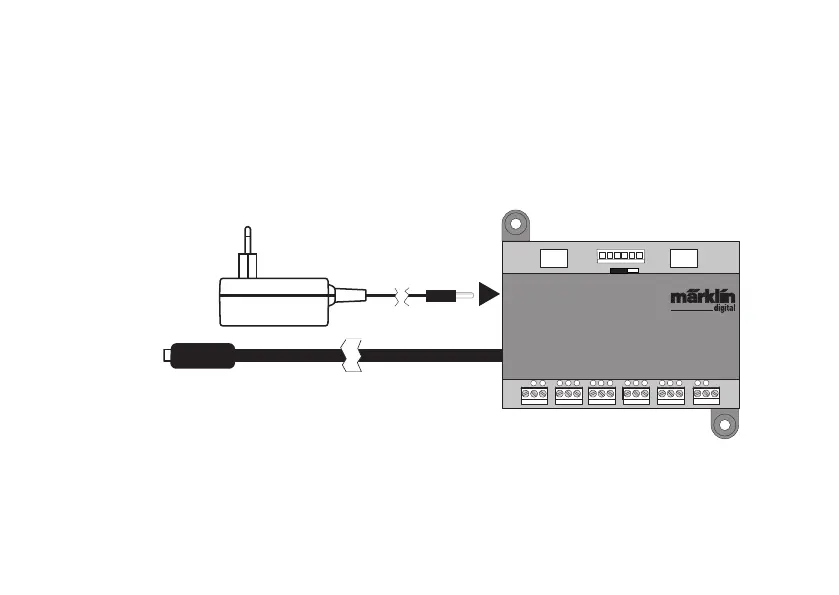

Connect the Link 88 directly to the Booster connection on the CS2 or to the 60145
Terminal. After that plug in the 66360/66367 or 66201 power supply.
