14
Wiring (continued)

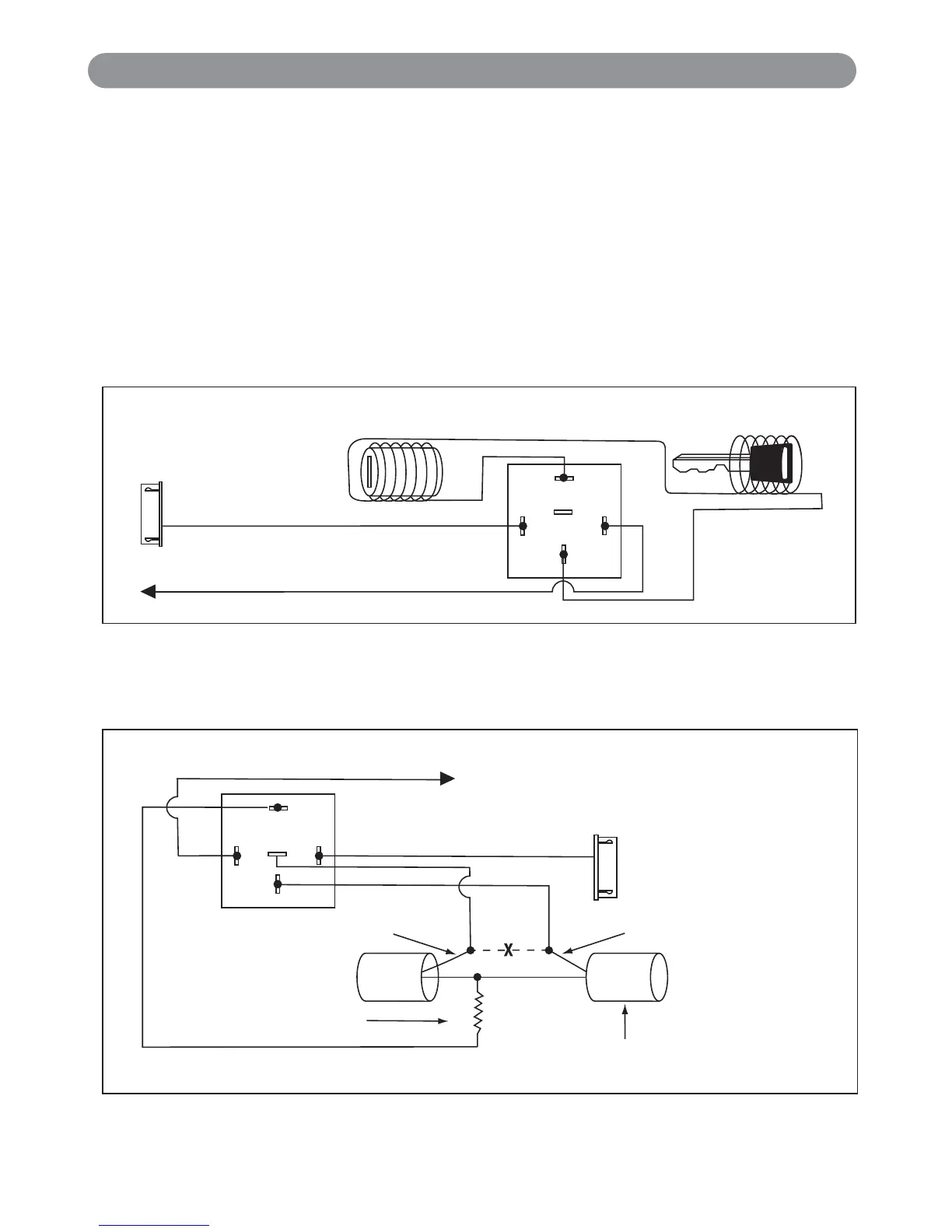

Transponder Key
87
87A
85
86
30
Ignition Switch
+12 Volt Ignition
Pink Wire
White 9-Pin Mini Connector
HC4: White 9 Pin Accessory Harness (continued)
Transponder Interfacing Using ALA984 Relay: Can also use optional RS-TIM bypass module.
If the vehicle has transponder system installed, you will need to bypass the system while the vehicle is operating
under the control of the Remote Start Unit. To do this, follow these steps:
1. You will need a transponder key that’s already programmed to the vehicle.
2. Remove the trim around the ignition switch.
3. Wrap a thin (30 awg) wire tightly around ignition switch 6 to 8 times and secure it.
4. About 6" down line make another loop of approximately 2" diameter.
5. Place the key inside this loop and secure it to the loop.
6. Connect on end of the 30 awg wire to pin (87) of the relay module.
7. Connect the other end of the loop wire to Pin (30) of relay module.
8. Connect (86) to ignition, connect (85) to the Yellow wire of 5-pin mini white connector.
GM VATS Key Override Using ALA984:
Can also use RS-PLM bypass module.
87
87A
85
86
30
To Ignition
White 9-Pin
Mini Connector
Passkey Wire Computer Side
Orange or Black Plastic Tube
at Steering Column
Resistor
Cut
Passkey Wire Key Side
Pink Wire
X6-IM.qxp 9/12/2008 1:50 PM Page 14
