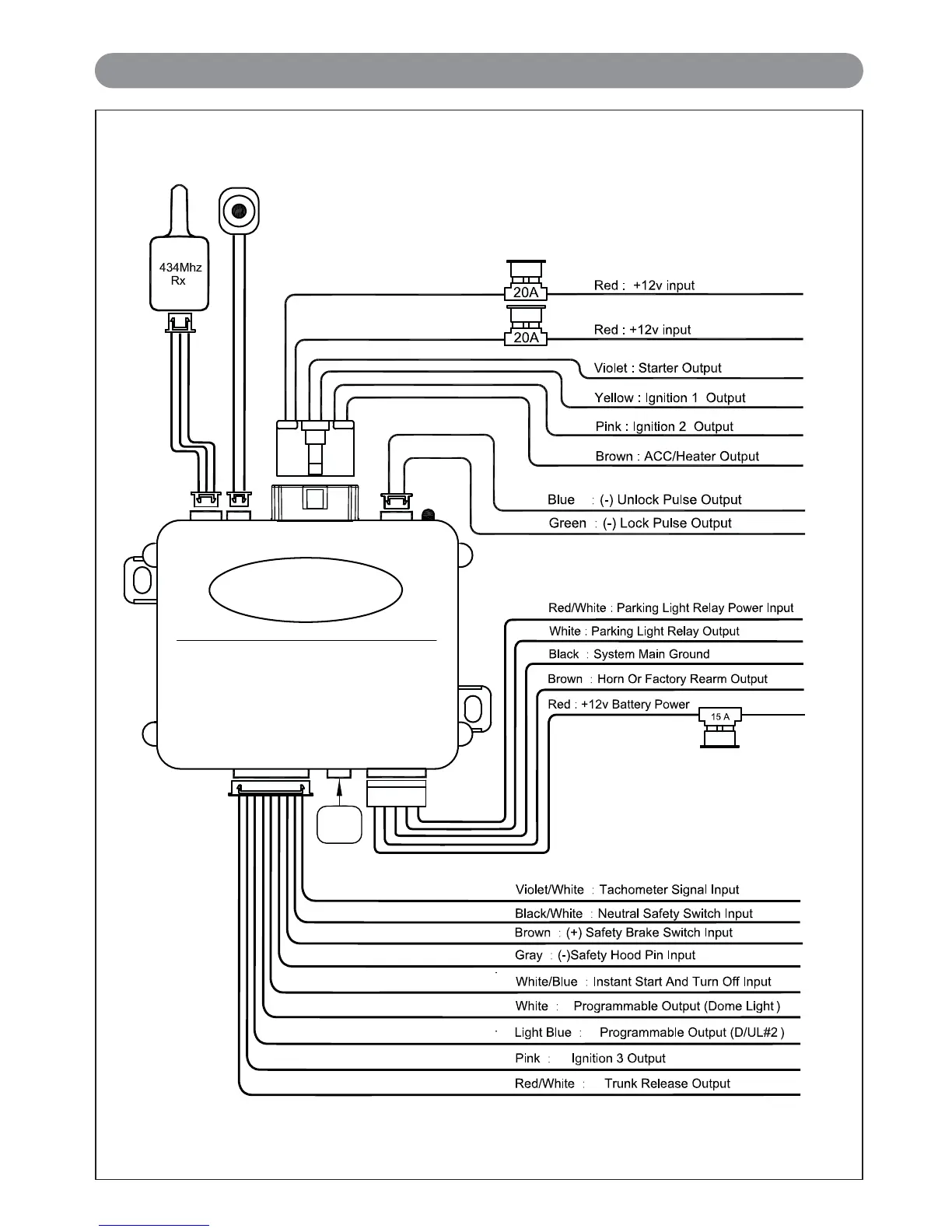

Marksman X6 - Wiring Diagram

X6-IM 9-12-08 Rev. A© Copyright 2008/ 2009 Magnadyne Corporation
(-)
(-)
(-)
(-)
Valet
Switch
Transceiver
LED
Indicator
HC1
White 6-Pin
HC2
White 5-Pin
HC3
Black 3-Pin
HC4
White 9-Pin
P2
Blue
2-Pin
P6
White
3-Pin
P7
Brown
4-Pin
Data
Port
Wiring Diagram
