Operation
Triplematic
26 Triplematic 201708 EN

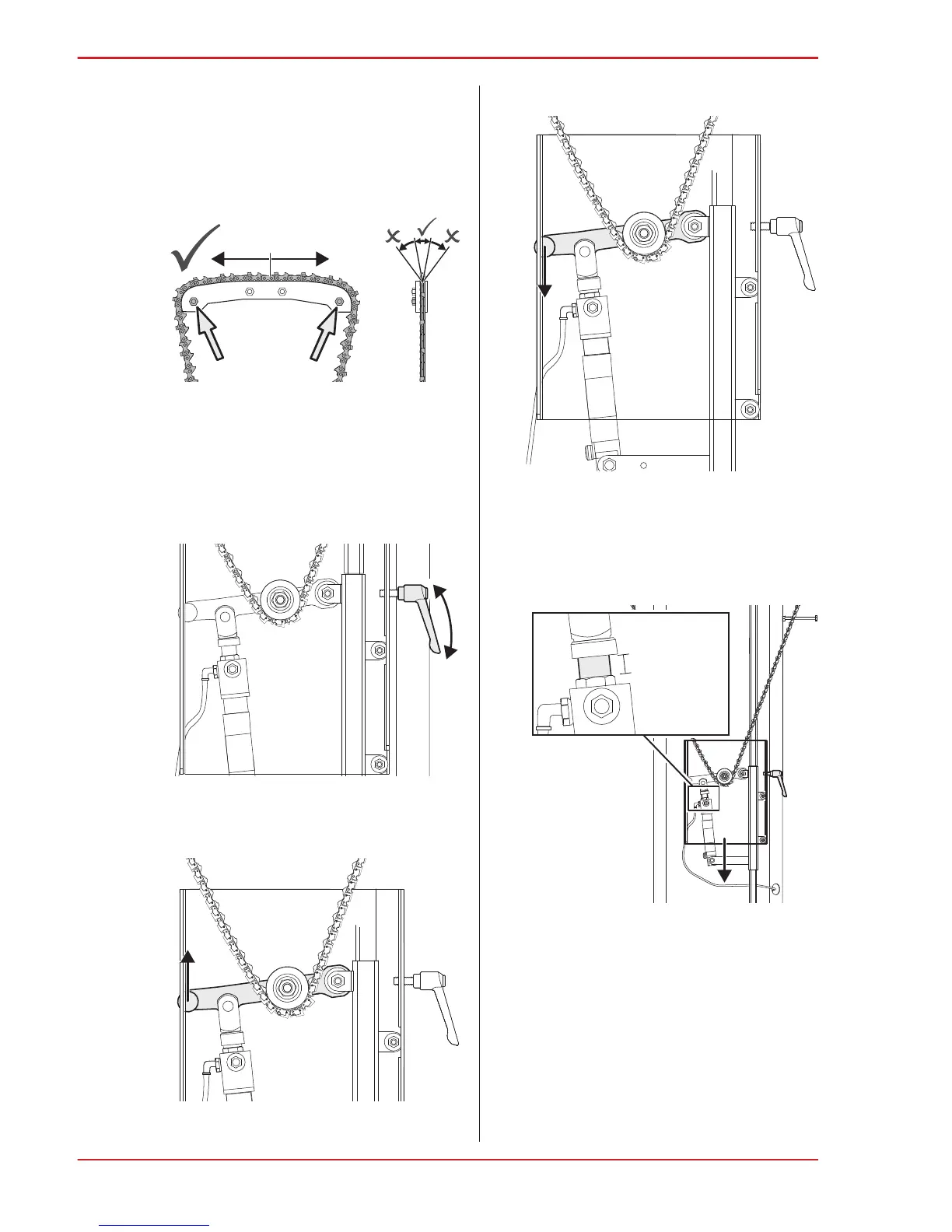

Adjust the groove width with the adjustment
bolts. The groove must be the same width as
the drive link, or 0.2 mm wider.
a) Use the adjustment bolts to adjust the
width of the groove. Tighten the nuts until the
chain is fixed, then loosen them about 1/2 turn.
b) Check manually that the chain moves freely
in the vise, and that and that the vise is not too
wide. If necessary, repeat step a).
4. Loosen the locking handle and move the
tensioner upward or downward to make enough
room to position the chain.
5. Lift the tensioner arm (there is a quick release
function) and place the chain below the
tensioner roll.
6. Lower the tensioner arm to its bottom position.
7. Move the tensioner downward until the chain is
tightly secured in its position. There should be a
gap of about 12.7 mm between the
pneumatic-piston nut and pneumatic piston,
where the piston should be visible.
10-15 mm
