Product Description
Triplematic
8 Triplematic 201708 EN
Pos Part Description
A Grinding Head Holds the grinding wheel in its correct position.
B Counter
Sets the number of cutters to be sharpened. See section 4.6.1,
“Counter”.
C Control panel
The controls starts and stops the different functions of the machine.
See section 4.6, “Controls” for further information.
D Chain hangers Hangers on both sides for unsharpened or sharpened chains.
E Stand Holds the machine.
F Tensioner Secures the chain in the correct position.
G Grinding wheel The wheel that sharpens the chain.
H Grinding wheel centering knob Centers the grinding wheel above the chain.
I Grinding depth knob Sets the grinding depth for the gullets
J Chain pusher adjustment knob Sets the grinding length.
K Power Supply cable Supplies electricity to the machine.
L Chain pusher Advances the chain through the vise.
M Chain vise Positions the chain as it moves in the machine.
N Left-right alignment screw Sets the right and left cutters to equal length.
O Top-plate angle screw Sets the top-plate angle, 0-35°. Default 30°.

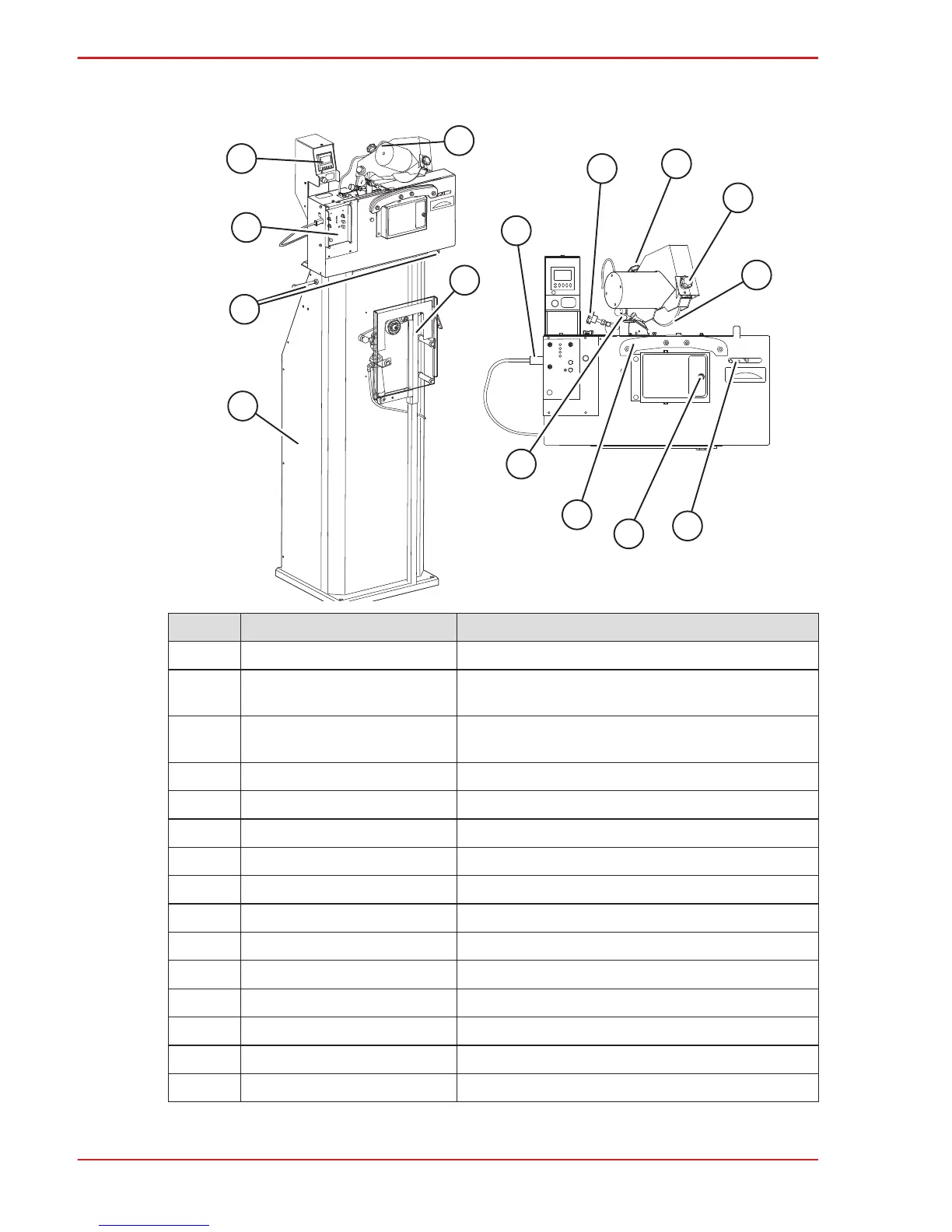

3.2 Front view
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
