Triplematic
Triplematic 201708 EN 43

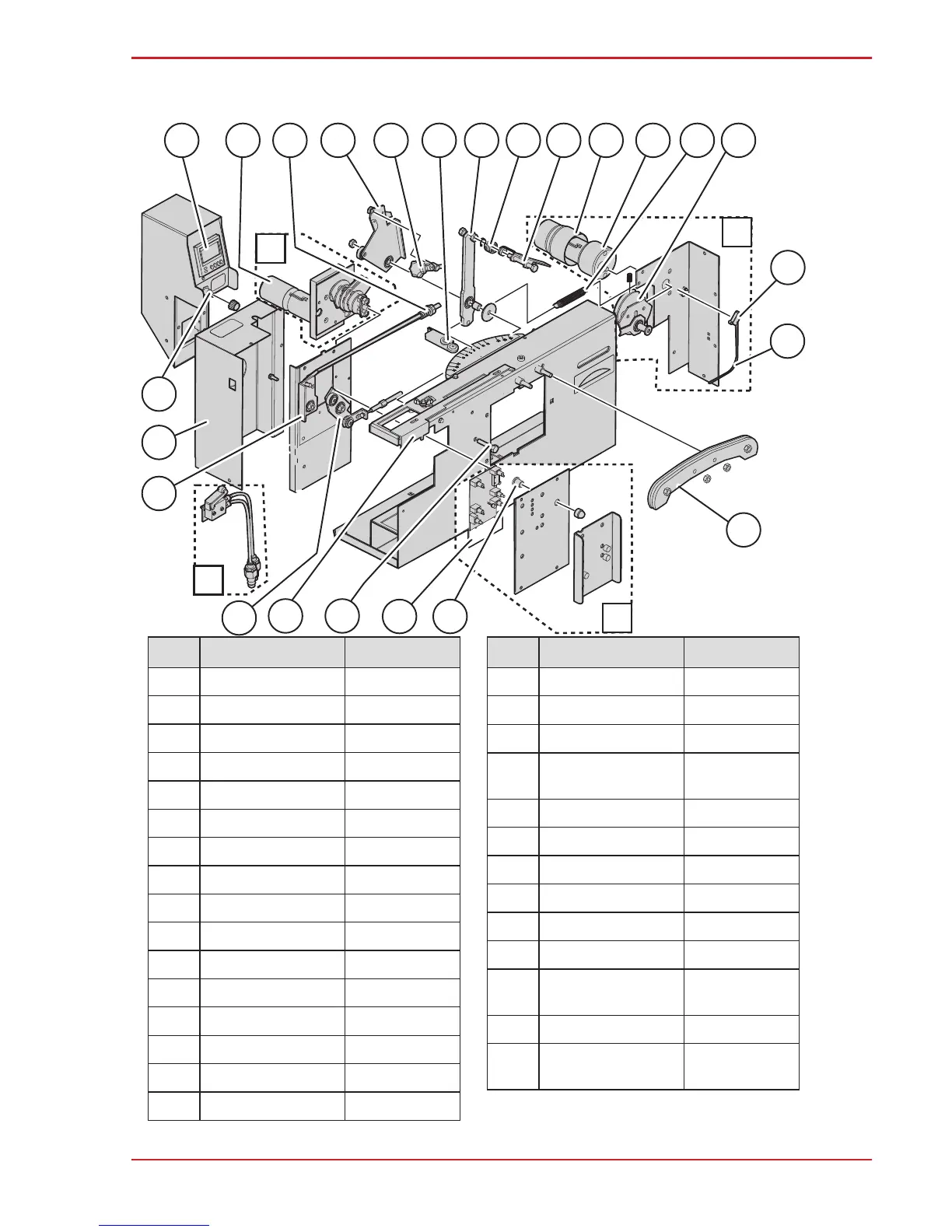

Accessories and Spare Parts
25 2724
23
26
28 1 2 3 4 5 6 7 8
10
11
9
13
14
18
1516
17
19
20
21
22
12
Pos Spare Part Order Number
1
Adjuster complete 12-047
2
Chain lock 12-107
3
Holder 13-114
4
Spring 12-045
5
Chain pusher 12-044C
6
Motor cover 12-025
7
Turning motor 12-026
8
Tension spring 12-043
9
Cam curve assembly 13-129
10
Turning motor assembly 13-101
11
Micro switch 12-029
12
Wiring harness 13-102
13
Chain vise complete 13-103B
14
Control panel assembly 13-104M
15
PDE bearing 12-032
16
Control unit (PCB) 13-106UL
Pos Spare Part Order Number
17
Bolt M6 x 30 12-034
18
Stop arm, optional 12-035
19
Wire lifter assembly 13-108
20
Pneumatic valve
assembly
13-605
21
Lock axis 12-037
22
Motor housing 16-050
23
Potentiometer 13-109
Al.Knob to potentiometer 13-109B
24
Counter 13-110E
25
Motor cover 13-131
26
Chain pusher motor
assembly
13-111
27
Compression spring 13-112
28
Chain pusher skip tooth
assembly
17-113
