1.3 Conformation of back
T1
Plate for identification of electronic amplifier
T2
Plate with indication of mains voltage and fuse rating
T3
Identification plate of I/O module
H1
Connector for mains voltage input
H2
Connector for input/output signals
W1
Connector for measuring head 1
W2
Connector for measuring head 2
W3
Connector for analog output
Note
The connectors W2 and/or W3 can be NOT present depending on the single
application.

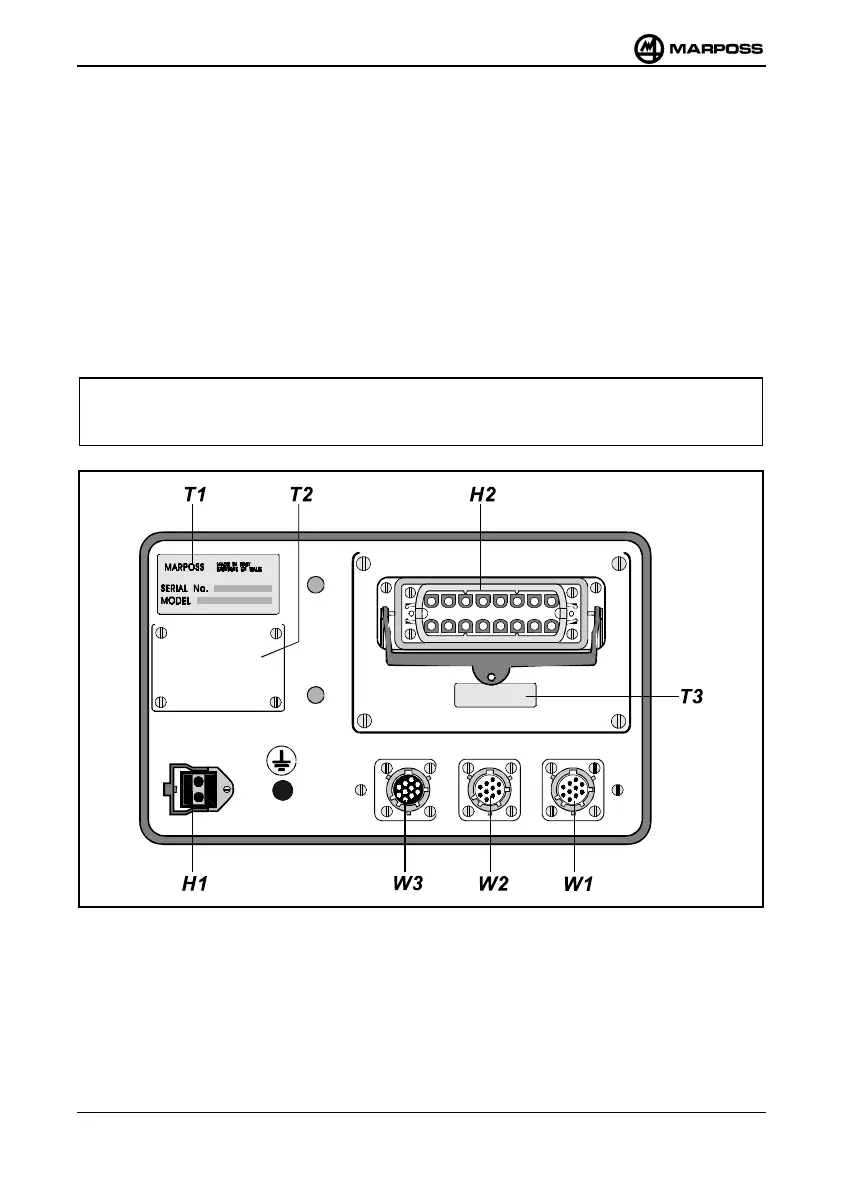

Figure 2 .Conformation of back and connection of connectors
