marposs M32A - Electrical MIDA TOOL EYE Arm Cycle Diagram (Enable P.O. =TRUE)

- User Manual
15

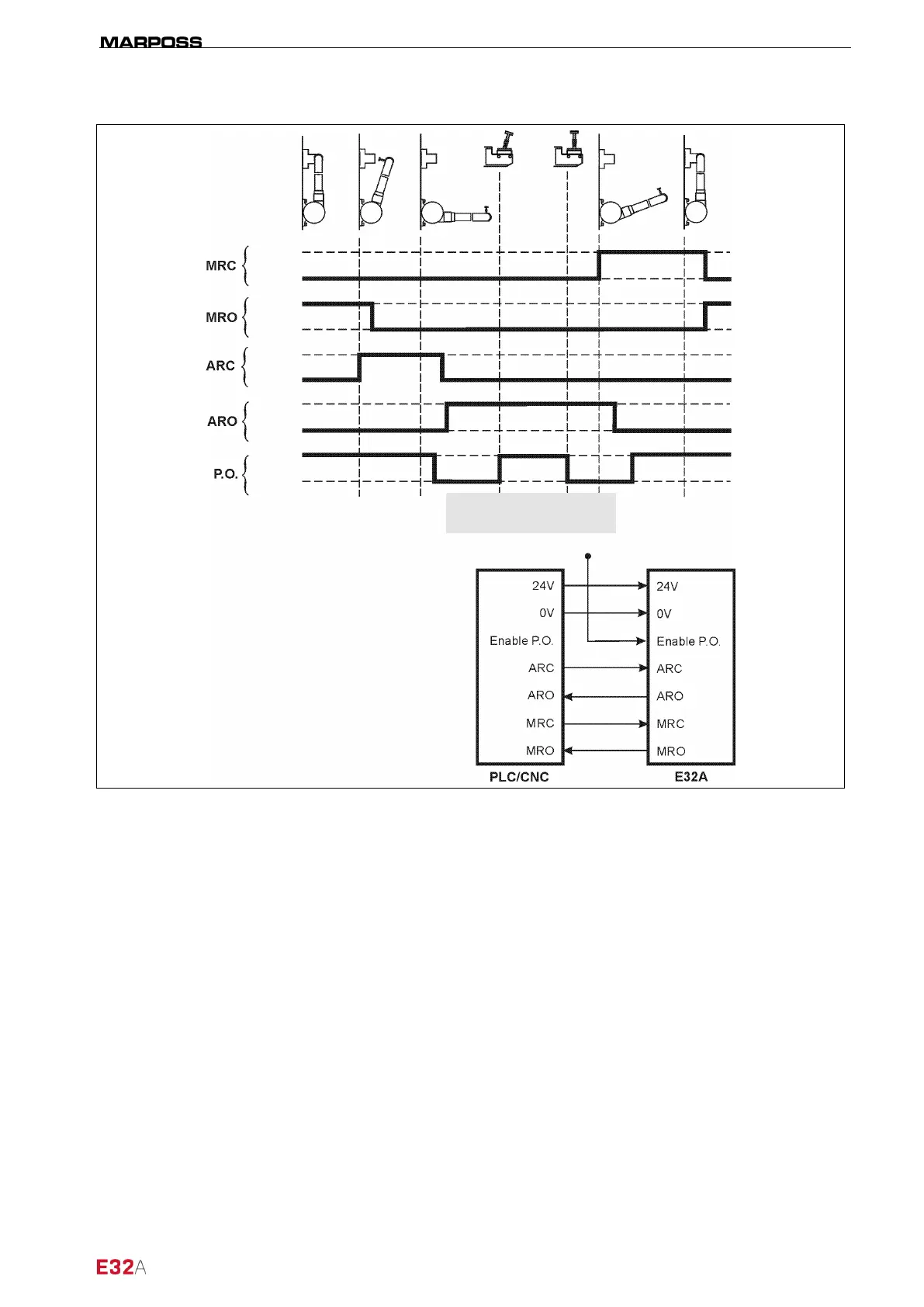

3.1.5 Electrical MIDA TOOL EYE arm cycle diagram (Enable P.O. =TRUE)
Figure 3-5. Enable output MODE 1 – operating cycle diagram.
FALSE
FALSE
FALSE
TRUE
TRUE
TRUE
Probe enabled
(measurement cycle)
TRUE
FALSE
TRUE
FALSE
TRUE
MRC =command for moving arm to
rest position.
MRO = arm at rest
ARC = command for moving arm to
measurement position
ARO = arm ready for measurement
P.O. = PROBE OUTPUT
