2.3 Operating characteristics
In addition to the code (shown in the side label), it is possible to tell whether the E32A SSR is the Manual or
Electrical version by the label on the front. In addition to the identification labels and the J1 and J2
connection connectors, there are two signaling LEDs:
Yellow (L1):
the touch probe status:
- on The probe finger is deflected
- off The probe finger is at rest
On when an alarm state is active.
For the first five seconds after it is switched on the E32A SSR LEDs display the specific application
configuration (see paragraph 4.3 “Riconoscimento del braccio collegato” on page 19)".
E32A SSR can be programmed using internal jumpers so that the inputs and outputs to and from the PLC
operate in SINK or SOURCE (see paragraph 4.4 ”Selecting SINK/SOURCE operating mode” on page 19).
The CNC sends special signals that are used to detect the arm operating condition:
arm measuring or at rest signals.
Mida-Set:
arm or cover inserted on fixed base signals.
The following chapter, which describes how to install the E32A in the machine, includes the wiring diagrams
for the various arms.

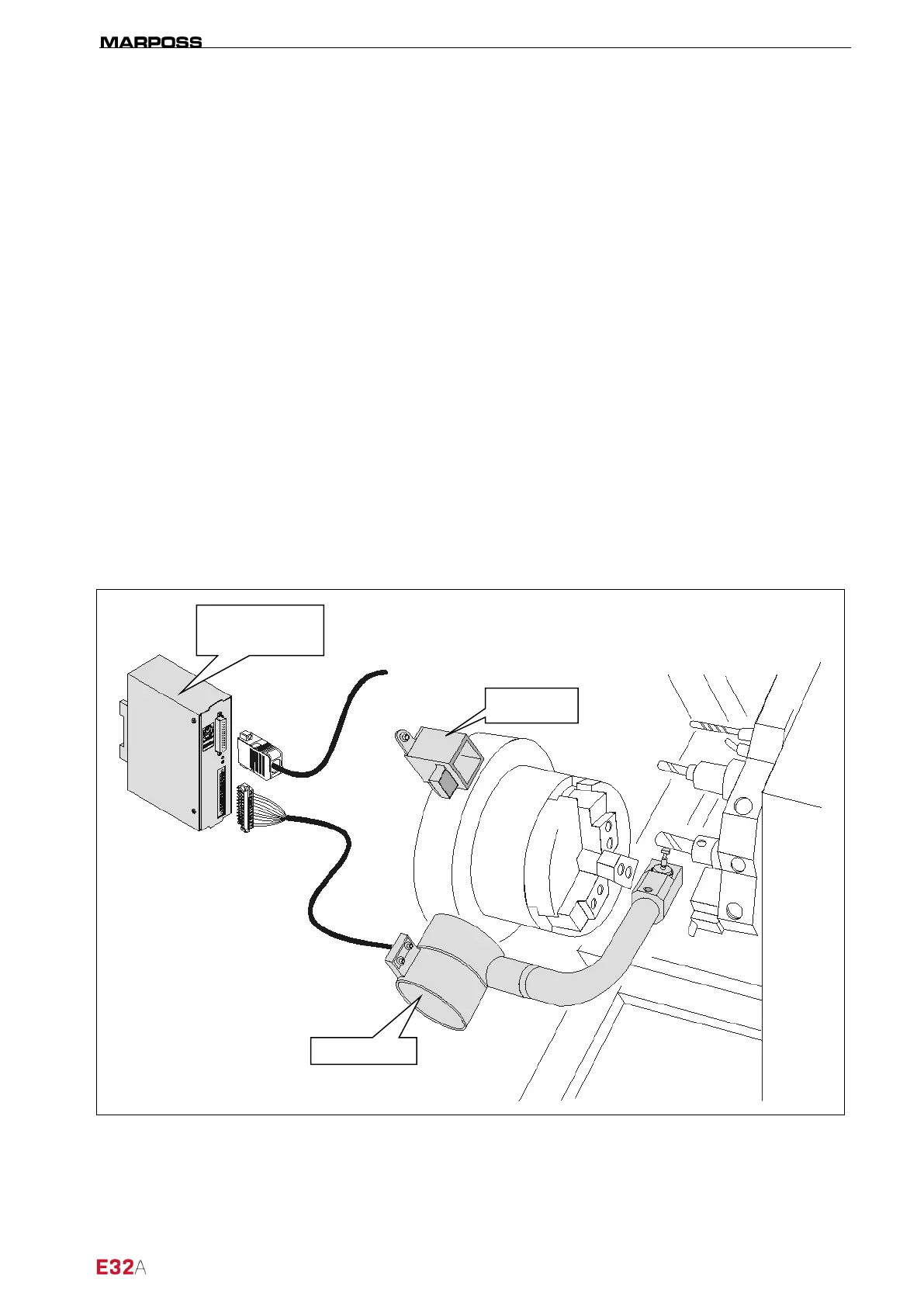

Figure 2-2. Example of application.
Interface
Housing
