2. GENERAL DESCRIPTION AND TECHNICAL DATA
The E32A SSR is a manually or electrically operated, specific interface for tool presetting arms on MIDA-
SET (removable) end MIDA TOOL EYE (resident) lathes. It processes the signal generated by the touch
probe so that it can be used by the machine tool, and manages the control signals; it also controls the Mida
Electrical Tool Eye arm driver motor. It is equipped with two physical outputs for the probe signal. The first
is a sink/source type output, while the other is a solid state relay.
The E32A SSR is designed to mounted on a standsard DIN guide inside the electrical cabinet.
The interface is available in two versions:
• Manual (P/N°. 8303322846) for Mida-Set and Mida Manual Tool Eye Manual arms.
• Elettrical (P/N°. 8303322836) for the Mida Electrical Tool Eye.
• Elettrical I/O SINK (P/N°. 8303322837) for the Mida Electrical Tool Eye.
The following elements are present on the front of the Interface:
1. Arm type identification label (Electric or Manual).
2. Connector J1 to connect E32A to the PLC/CNC.
3. Signaling LEDs.
4. Connector J2 to connect E32A to the Mida arm.

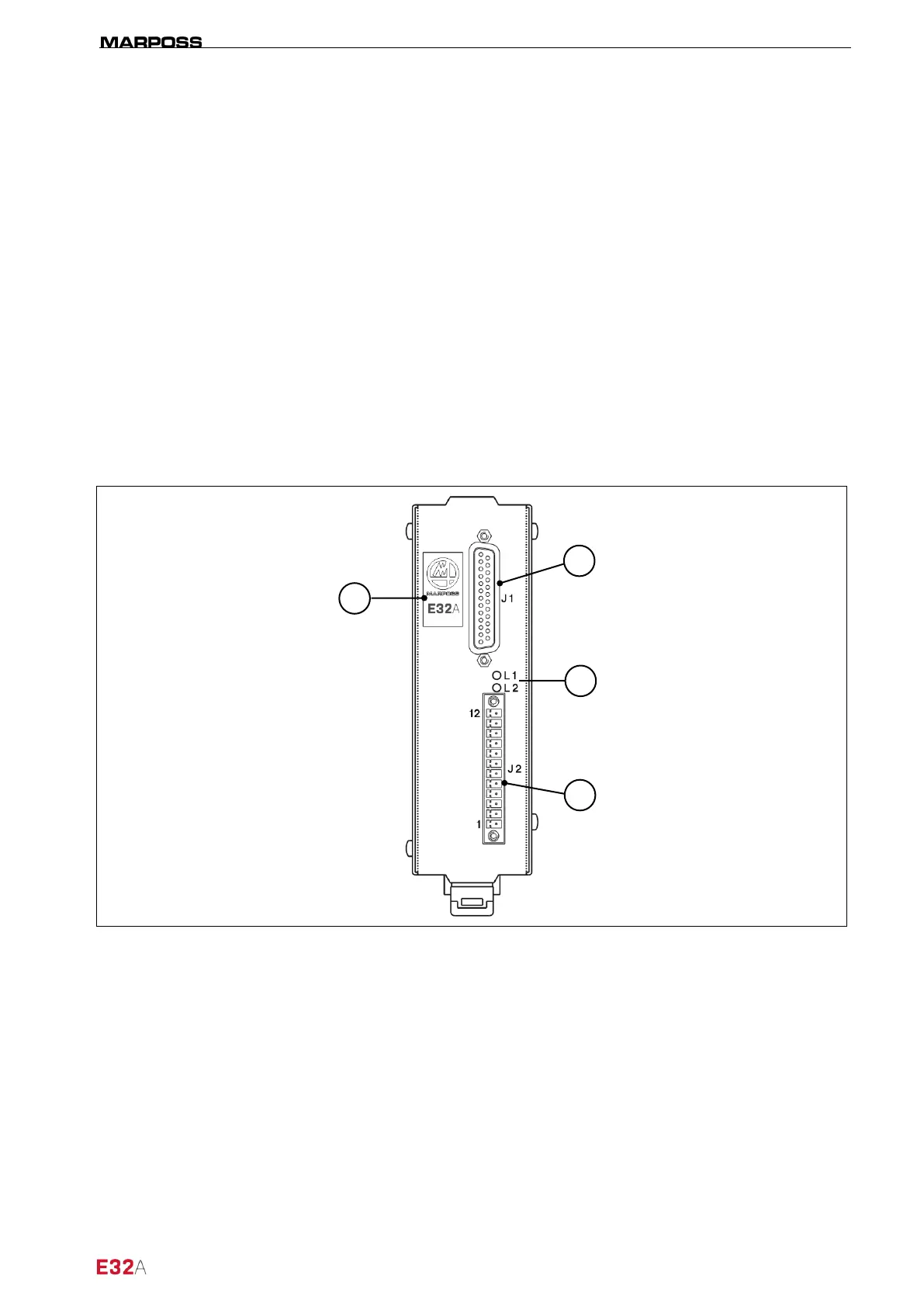

Figure 2-1. Front view of the interface.
