marposs M32A - Delay and Skip PROBE OUTPUT (JP5-JP6)

- User Manual
18
4.2 Delay and skip PROBE OUTPUT (JP5-JP6)
The P.O. (Probe Output) can be set to normal, delay or skip mode using jumpers JP5 and JP6 on circuit
board of Interface (see Figure 4-3).
Remove the four screws and open the case in order to access it and Install Jumpers as shown in the
Figure 4-3.

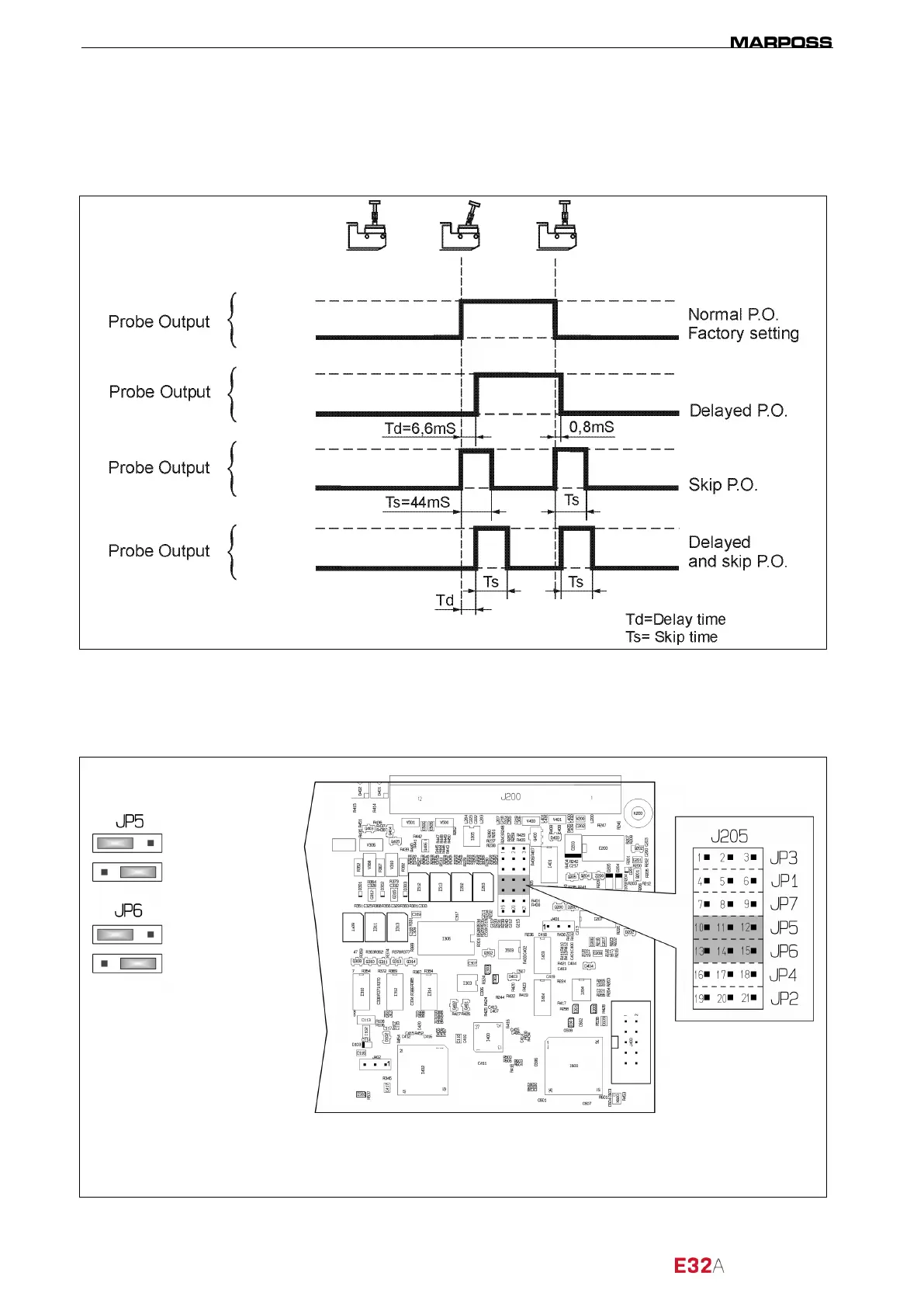

Figure 4-2. Operating cycle diagram.
Nota: Ts = 44msec. nominal ± 30%; Td = 6,6 msec. nominal ± 10%.
Figure 4-3. Probe Output: Normal, Skip and Delay modes.
(*)
Note: default configuation.
SKIP Disable*
SKIP Enabled
DELAY Disable*
DELAY Enabled
