16
3.1.6 Alternative Electrical MIDA TOOL EYE arm cycle diagram (Enable P.O.=ARO)

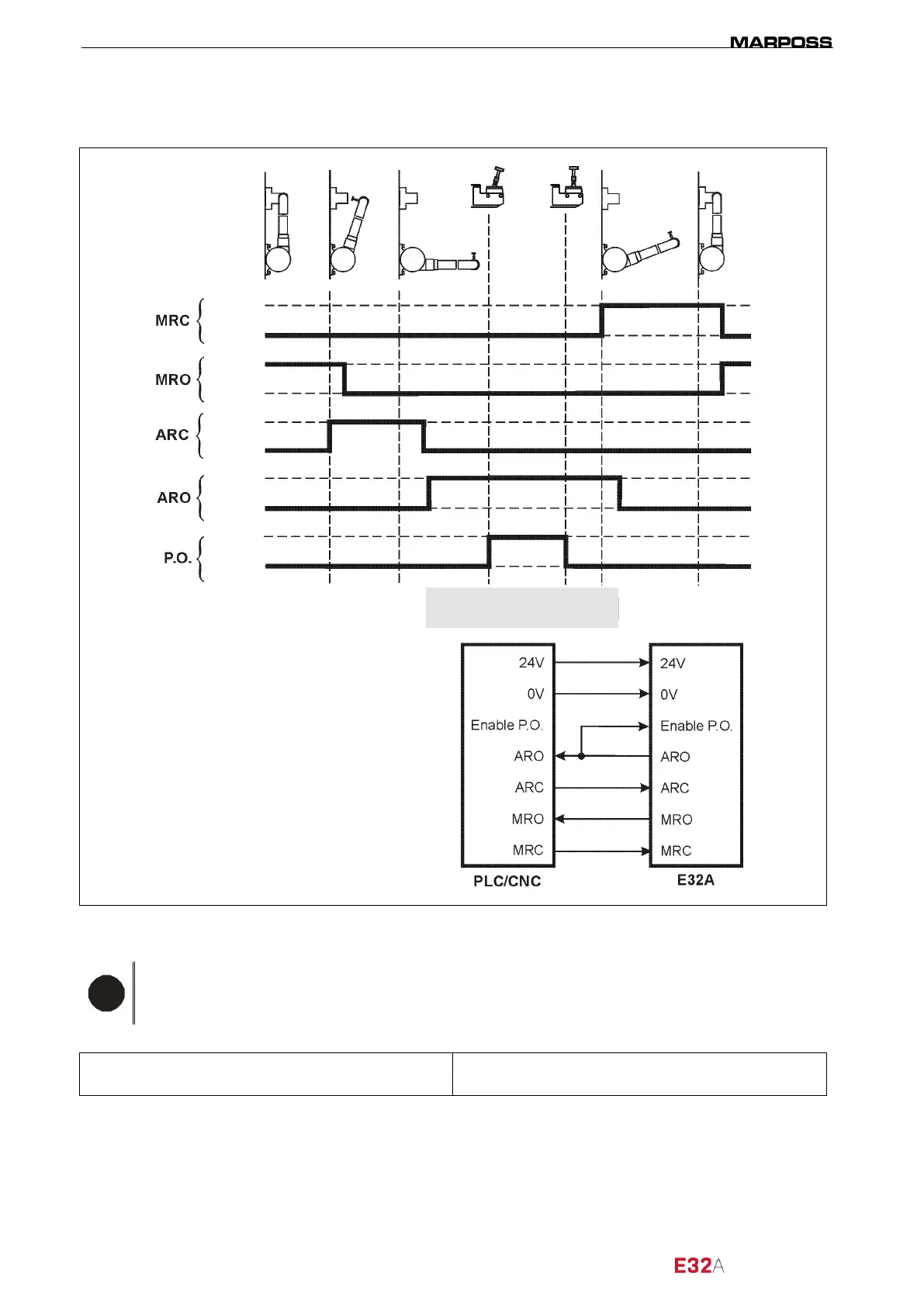

Figure 3-6. Enable output MODE 2 – operating cycle diagram.
i
N.B.
Once the signal logic has been verified (TRUE/FALSE), check on the machine whether it
is necessary to work in SOURCE or SINK mode.
SOURCE MODE:
TRUE

high voltage
SINK MODE:
TRUE

low voltage
FALSE

low voltage
FALSE

high voltage
By default, the interface is set to SOURCE mode, to change this mode, see paragraph “4.4 Selecting
SINK/SOURCE operating mode” on page 19.
FALSE
FALSE
FALSE
TRUE
TRUE
TRUE
Probe enabled
(measurement cycle)
MRC =command for moving arm to rest
position.
MRO = arm at rest
ARC = command for moving arm to
measurement position
ARO = arm ready for measurement
P.O. = PROBE OUTPUT
FALSE
TRUE
FALSE
TRUE
