Marquette Hellige GmbH MicroSmart V 2.xx Page 4
Servicing Instructions 227 470 35 B - 97.12
1 Documentation and nomenclature of Marquette Hellige instrument part Nos
1.1 Configuration of instrument part No
The instrument part No comprises 8 digits, the first 6 digits determining the instrument type, the last
2 digits the instrument version. The language is determined by configuration, thus having no
influence on the part No.
E.g. Instrument Type Version
MicroSmart without measurement, IR 101 134 01
MicroSmart with measurement, IR 101 134 02
1.2 Configuration of the PCB part Nos
388 xxx yy Spare part numbers for the operative PCBs.
The instrument documentation, e.g., reference diagrams, circuit diagrams and parts lists are listed
under this part No.
The 388 number is located on the barcode label.

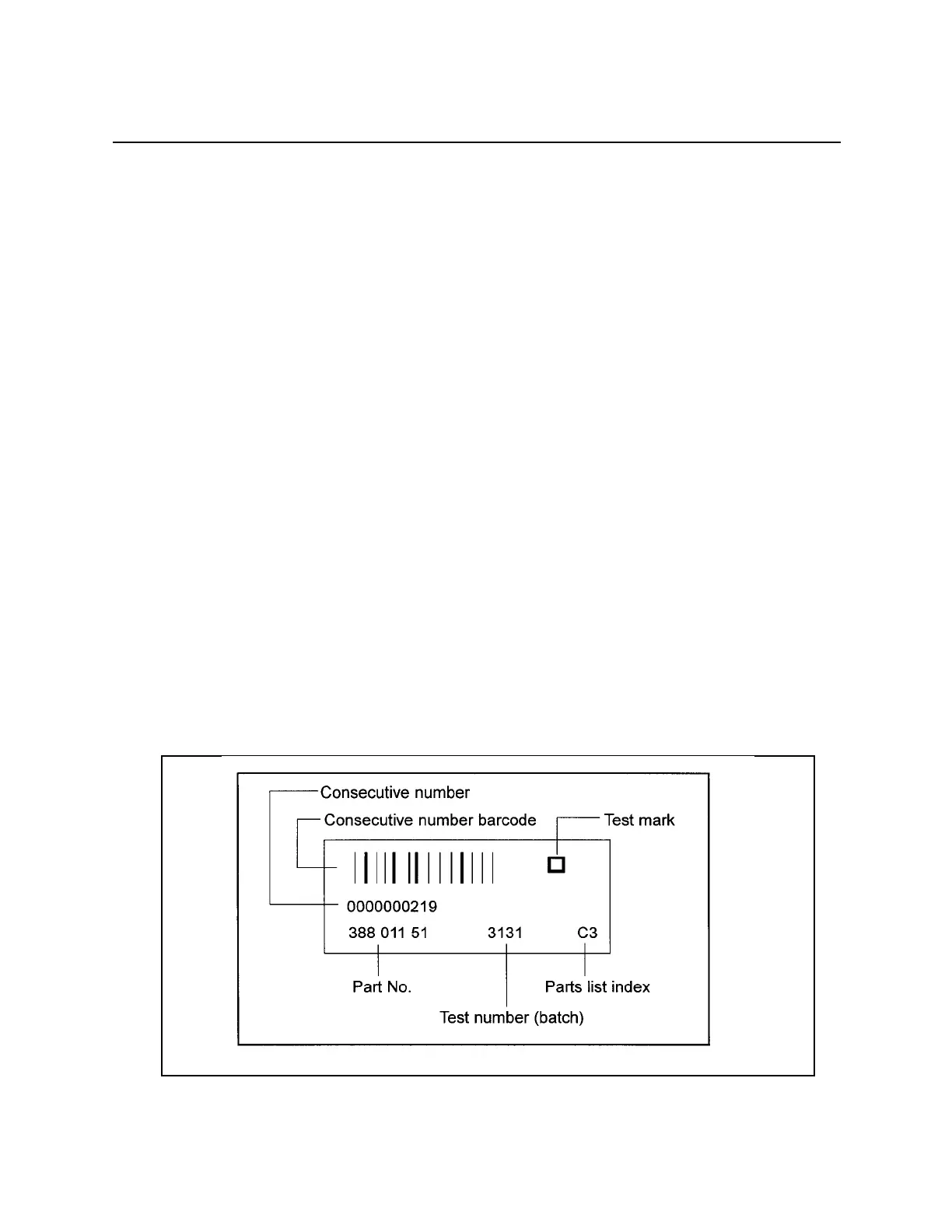

Configuration of the barcode labels:
