8.4 WIEGAND ACCESS
GSW2 PLUS unit has onboard support for 1 Wiegand output based device. With the user of
external replicator more Wiegand devices can be connected to the unit.
Configuration of Wiegand interface is found in Digital interface tab in the Input section. Wiegand
interface can be found on board with a dedicated Wiegand connector and cables.

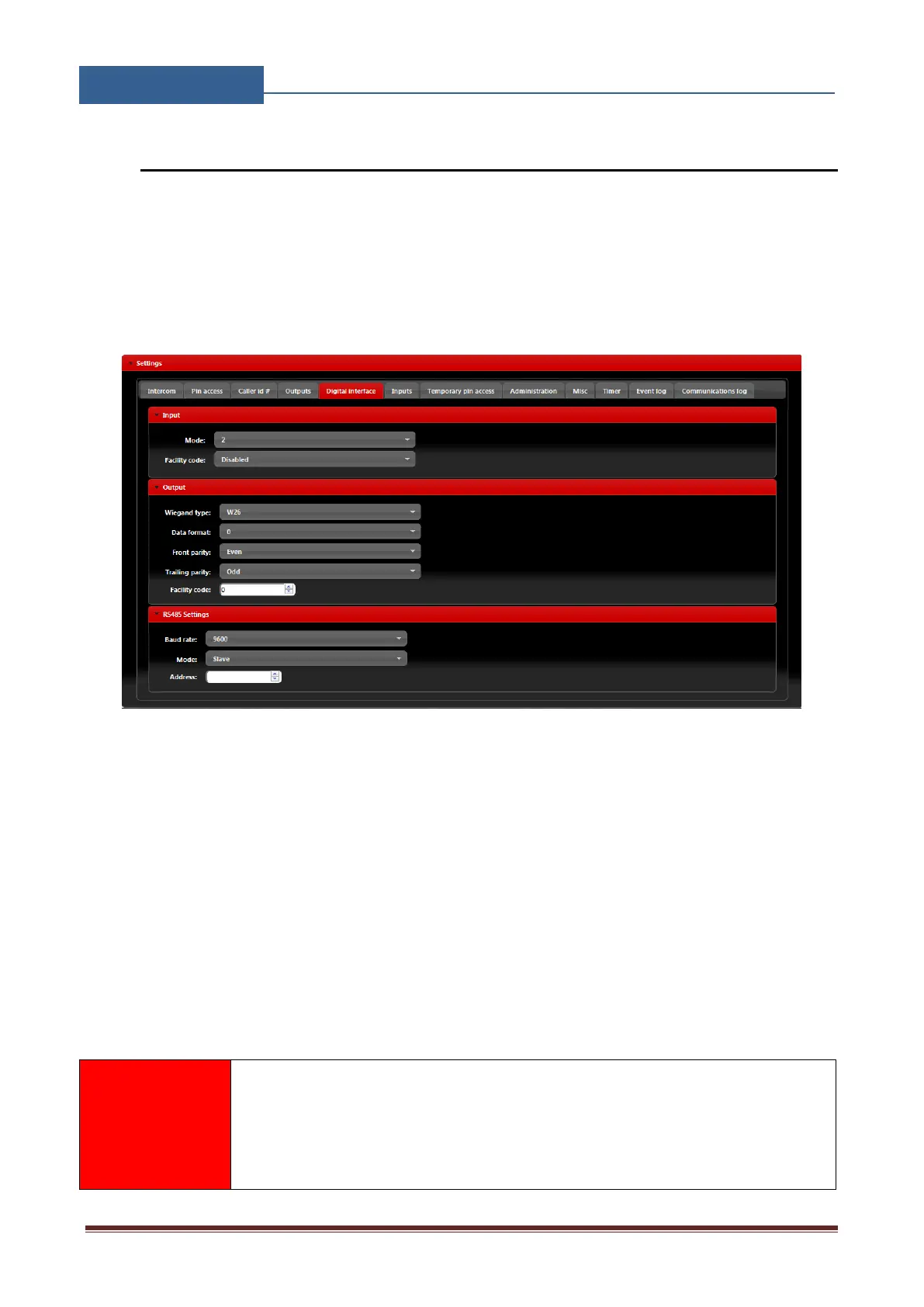

Figure 7: WEB Server-Wiegand interface support.
Mode: Select appropriate data formatting (Advise unit provider for more info if needed,
mode 2 is most common setting)
Facility code: User can Enable or Disable facility code field.
Wiegand devices can be defined in two sections. First section is permanent pin codes and second is
temporary pin codes - limited by the number of use.
See Chapter 9-WIEGAND INPUT DATA FORMATs for detailed explanation
of different data format options.
