8.9 ALARM INPUTS
GSW2 PLUS unit can be used to send alarm SMS messages if alarm is raised on iput alarm lines.
Alarm lines are multiplexed with the intercom button lines. To use alarm lines disable intercom
function for the appropriate line (Intercom tab).

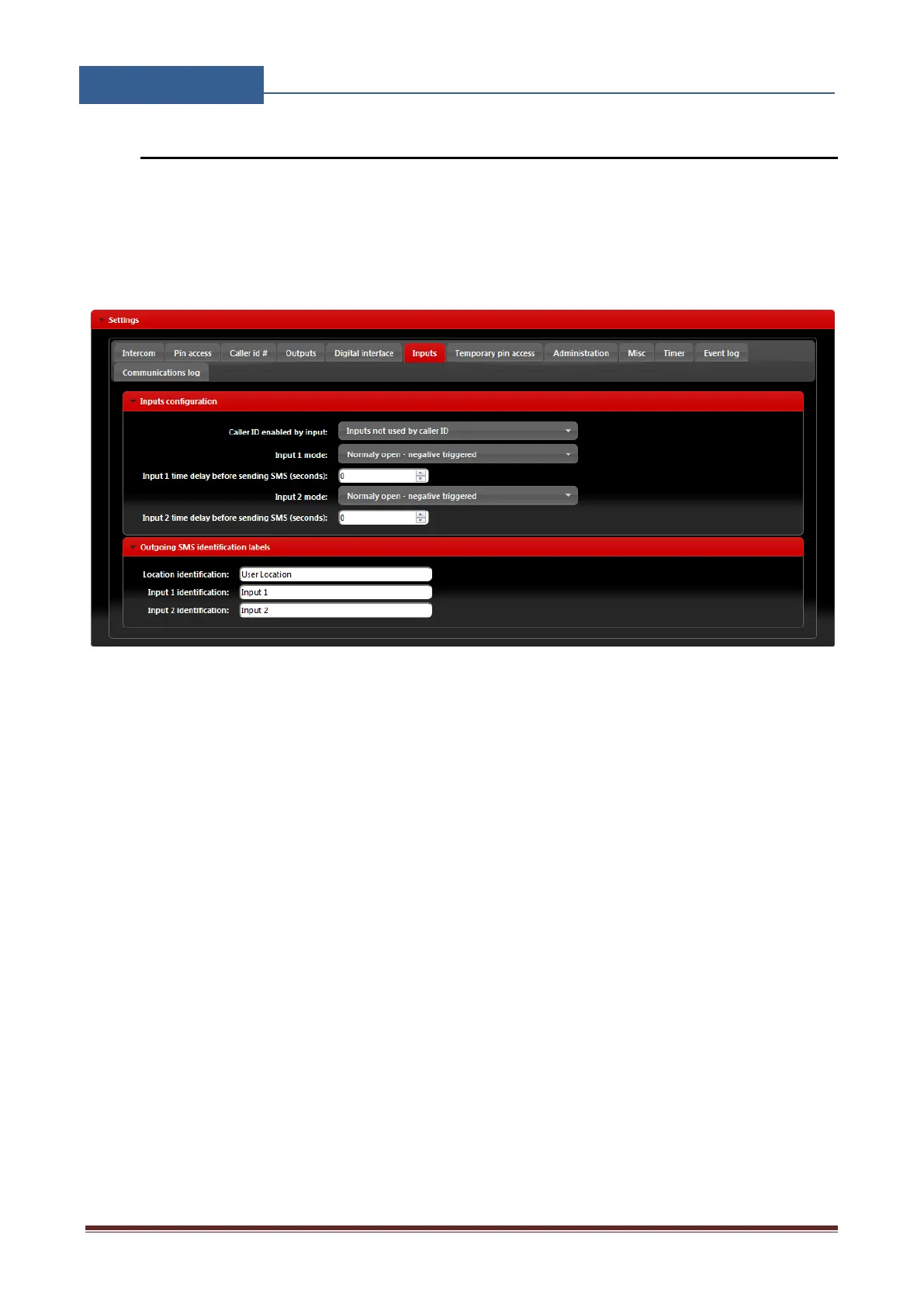

Figure 15: WEB Server-Input alarm mode.
Inputs configuration:
Caller ID enabled by ID: Additional sensor can be used as a precondition for Caller Id
function. If input is used as a precondition, input must be active AND Caller ID number
must be met to activate selected output.
Input 1 mode: Different mode of possible input configuration:
1. Normally open – negative triggered: Input activation with negative voltage (GND).
2. Normally closed: Input activation when breaking positive or negative voltage loop.
3. Normally open – positive triggered: Triggered with positive voltage (+ 12V DC).
4. Not used: Alarm input disabled.
5. Normally open – negative triggered – SMS on restore: Same as option 1 + unit send
restore SMS when alarm conditions on input are ceases to exist.
6. Normally closed – SMS on restore: Same as option 2 + unit send restore SMS when alarm
conditions on input are ceases to exist.
7. Normally open – positive triggered – SMS on restore: Same as option 3 + unit send
restore SMS when alarm conditions on input are ceases to exist.
