8.6 OUTPUTS SETTINGS
The behavior on the outputs is defined in the Output tab.

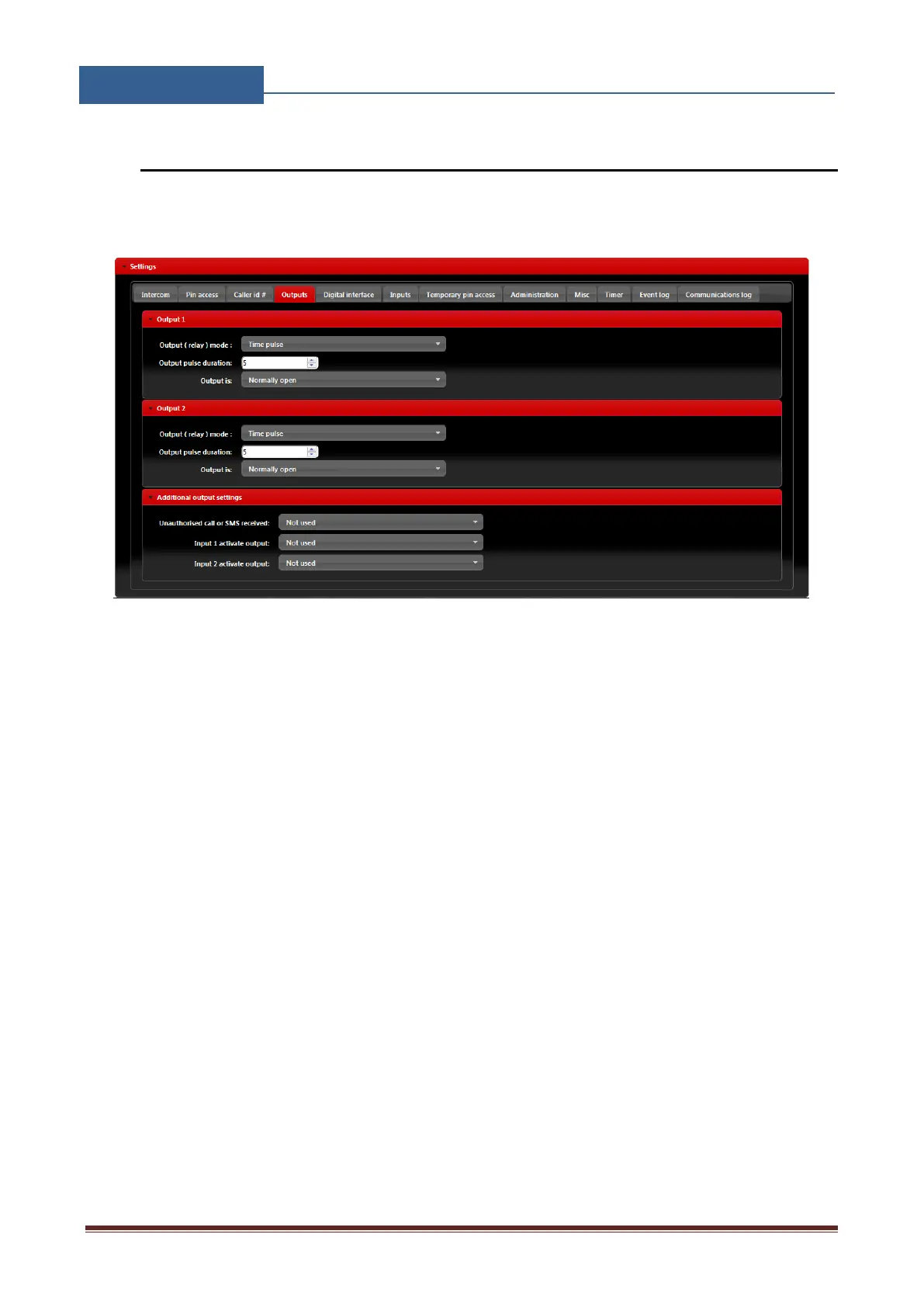

Figure 11: WEB Server-Output setting
Output 1- Settings for output 1:
Output (relay) mode: User can select between 3 options
Disable-Output is disabled
Latching-Output is in latching mode. First Caller ID or PIN entry will activate the output,
second Caller ID or PIN entry will deactive the output.
Time Pulse-Output is time pulse mode. After output is triggered it will be activated for the
time defined in Output pulse duration, after that time output will be restored.
Output pulse duration: ON time for output in case of output mode Timer pulse.
Output is: Output can work in normal or inverted (normaly close) mode.
Normally open-In idle mode output pins are in open position.
Normally closed-In idle mode output connection is closed.
